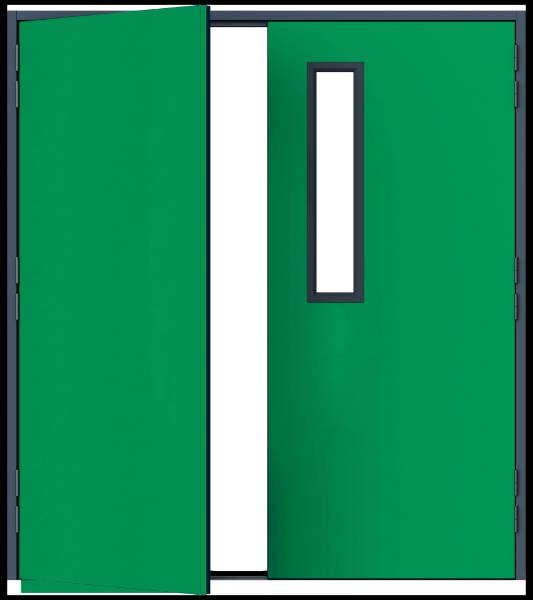

Double M2M+Express steel door

Verified by manufacturer 4 months ago

Bradbury Group

Express steel door with a variety of hardware, available for despatch in 5 days

Jump to:
+44 (0)1724 271999 Website

Application

Suitable as external security door.

Description

Security and external Express steel door.


Features and benefits:

  • Outward opening only.
  • 1.2 mm zintec.
  • Sashlock.
  • Lever handle.
  • Panic bar.
  • Additional deadlock in upper half.
  • External override.
  • Dorma closer.
  • 203 x 762 mm vision panel.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Gloss

Matt

Powder-coated

Semi-gloss

Textured

Show more

Material

Steel

Zintec steel or stainless steel.

Stainless steel

Zintec steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration

Double leaf, single action.

Doorset size

Bespoke.

Insert requirement:

  • Double leaf: 1000–2930 x 900–2600 mm.

Performance

-

Fire resistance

-

Integrity

Not required.

240 minutes.

M2M+ doors are available with a fire rating of up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5108).

Intruder resistance

-

Conformity

Certification by accredited third-party certification body.

Frame

-

Material

2 mm thick.

Zintec steel.

Stainless steel.

Threshold

Steel.

Aluminium.

Finish

-

Coating

Polyester powder coated.

Standard finish.

Wood effect.

High quality wood-grain at an additional cost.

Colour

Various colours available. Consult manufacturer and insert requirement.

Installation fasteners

Nine hooked dog bolts per leaf.

Frame accessories

Six hinges per leaf.

Door leaf

-

Thickness

66 mm.

Core

Honeycomb.

Rockwool.

Material

1.5 mm thick.

Zintec steel.

Stainless steel.

Magnelis.

Beading

-

Type

10 mm astragal.

Material

Steel.

Finish

-

Coating

Polyester powder coated.

Standard finish.

Wood effect.

High quality wood-grain at an additional cost.

External colour

Various colours available. Consult manufacturer and insert requirement.

Internal colour

Various colours available. Consult manufacturer and insert requirement.

Hardware

Not required.

MICO 942 2/3 point locking systems.

2/3 point locking systems are not fire rated.

MICO USCH cylinder guard.

External access via MICO USCH cylinder guard with Scandinavian oval cylinders, as standard.

Padlockable hasp and staple access device.

Accessories

Not required.

Stays and closers.

M100 and TS83, as standard.

Removable top transom.

Profile

Frame profile.

110 mm.

FireRating

Not required.

FD240.

Optional. M2M3 doors are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Exova under the CERTIFIRE scheme (certificate number CF5107).

Panic hardware

Not required.

MICO Abryll panic escape.

Manual, automatic, and electromechanical deadlock single point locking.

Double panic bar.

Double panic bar variant also available (panic bars fitted to both leaves of double doorsets).

Vision panel

Vision panels reduce the doorset fire rating to FD60.

Not required.

203 x 356 mm.

203 x 762 mm.

457 x 457 mm.

Louvre size

Doors with louvres are not fire rated.

Not required.

457 x 457 mm.

Louvre panels

Doors with louvres are not fire rated.

Not required.

Bladed.

ConstructionMethod

Butt jointed frame.

Butt jointed frame sections, as standard.

Fully welded frame.

Fully welded frame available at an extra cost.

Opening

Outward.

Reinforcement

3 mm chassis system.

No adjusters.

Weight

Circa.

75 kg/m².

Lifting points

M10 lifting point per leaf.

Hinges

126 mm lift off hinges.

13 butt hinges.

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom
