Dominica External Blind - External Roller Blind

Verified by manufacturer 3 months ago

Caribbean Blinds UK Ltd

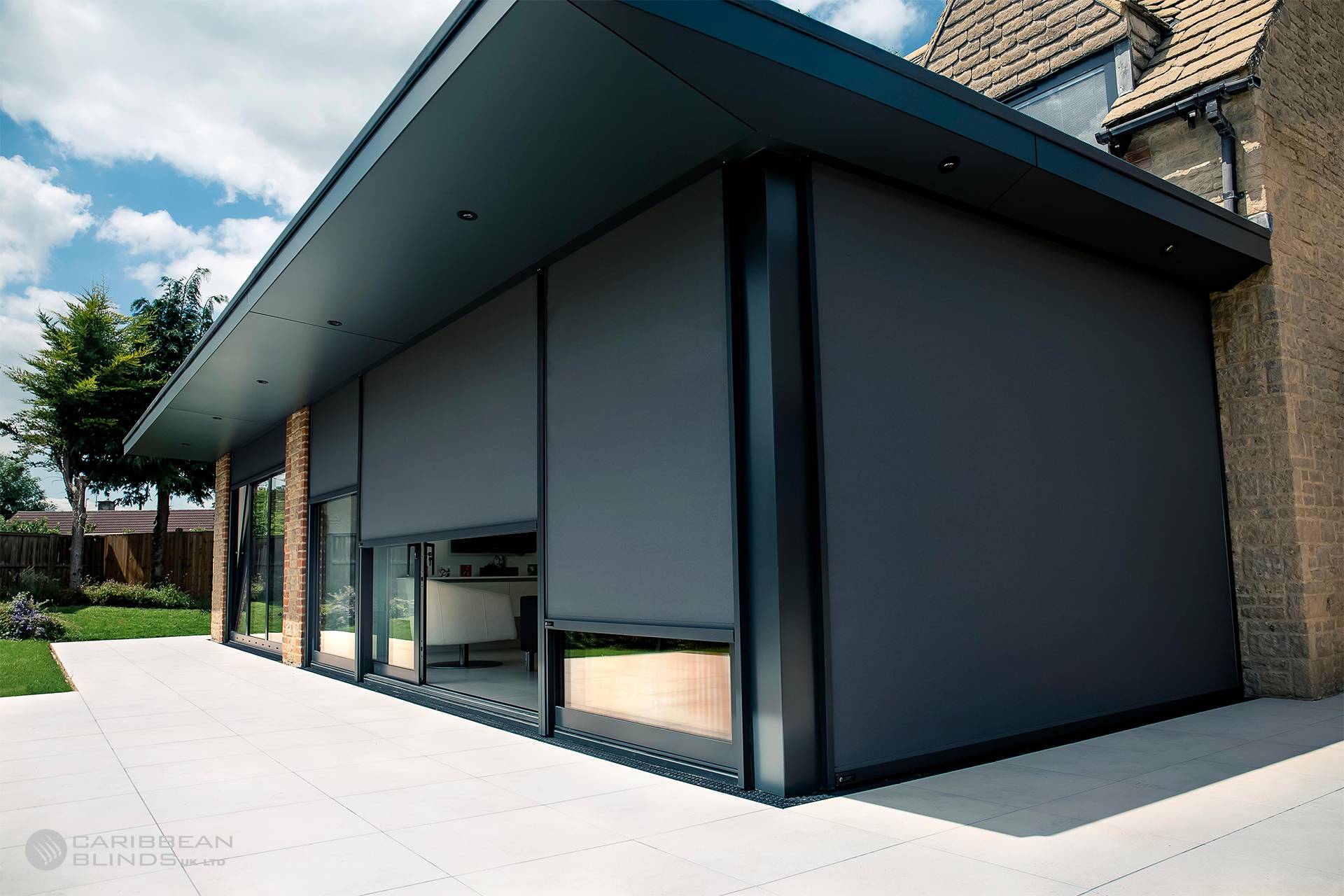

Windproof external roller blind for all vertical glazed areas and openings, designed to be integrated within the façade.

Jump to:
BIM object icon
0344 800 1947 Website

Application

Suitable for residential and commercial, outside in front of windows, sliding / folding doors and on pergolas and verandas.

Description

The Dominca blind offers the highest level of solar heat and light control to windows and doors along with weather protection to the exposed openings on verandas and pergolas. Built within the façade, the streamline side guides contain ziplock technology which locks the fabric in place at every position, rendering the blind windproof and preventing any light shining between. The weighted leadrail guarantees the fabric remains taut and closes into the full cassette headbox that conceals the blind when not in use.


Features and benefits:

  • Full cassette headbox.
  • Streamline side guides with windproof ziplock technology.
  • 100’s of hardware (RAL) colours and solar control fabrics.
  • Motorised remote / app control with obstacle detection.
  • Optional automatic weather sensors (light and wind).
  • Side fix mounting integrated within the façade.
  • Up to 6 m wide x 3 m high.

General information

Material

Fabric

Aluminium

Width

Bespoke

Up to 6m width

Height

Bespoke

Up to 3m height

WarrantyDescription

Five year

Uniclass

Pr_30_59_07_26 External roller blindsPrimary

CAWS

L10/59 Solar shading system

L10/680 Solar shading system

N10/240 Blinds

Specification data - External roller blinds

Dimensions (minimum width x depth)

Insert requirements, up to 6 m x 3 m.

Headrail

-

Material

Powder coated, extruded aluminium.

Headbox: 164 mm x 120 mm (h x d).

Side Fix Side Guides: 36 mm x 120 mm (w x d).

Face Fix Side Guides: 36 mm x 42 mm (w x d).

Colour

Anthracite Grey RAL 7016MT.

Custom RAL.

Insert colour code requirement.

Blinds

-

Material

Twilight Pearl solar control mesh dimout fabric (297 code).

Lumera solar control solid blockout fabric (338 code).

Finish

TEXgard easy clean coating.

Colour

Insert colour code requirement.

Operation

Integrated radio controlled motor and remote control.

Somfy IO with obstacle detection, 240 v AC, power draw circa 1.1amps.

Wind resistance

To BS EN 13561, class 3.

Beaufort 6 – 31 mph strong breeze.

Accessories

Not required.

Wind sensor (Eolis wired io).

Sun and wind sensor (Soliris wired io).

App control (Tahoma switch).

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

CB - Dominica Blind | General Arrangement & Mounting | External Roller Blind

CB - Dominica Blind | General Arrangement & Mounting | External Roller Blind

CB - Dominica Blind | Integration in Façade | External Roller Blind

CB - Dominica Blind | Integration in Façade | External Roller Blind
