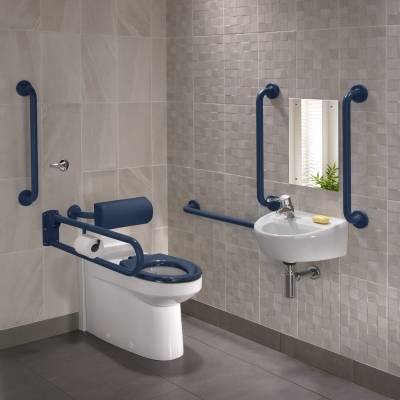

Document M Rimless Back-to-Wall Pack
Application

Disabled toilet accommodation in offices, shops, factories, educational buildings or any premises to which the public is admitted.

Description

Components:

  • Avalon 700 mm projection BTW rimfree pan and fittings.
  • Concealed cistern, single flush lever, 4 L flush.
  • Avalon 50 mm extension for WC.
  • Avalon seat ring, stainless steel hinge with stability buffers.
  • Hand rinse - one tap hole medical basin, no overflow.
  • Sola thermostatic monobloc mixer, lever tap (SF1054CP). TMV3 and WRAS approved.
  • Grid waste.
  • Doc.M support rails, back support with cushion and hinged support rail with toilet roll holder.

Applications:

Disabled toilet accommodation in offices, shops, factories, educational buildings or any premises to which the public is admitted.

General information
Material

Vitreous china (white). Grab rails are powder coated steel

Uniclass 2015
Pr_40_20_60_02 Accessible WC equipment packagesPrimary
CAWS

N13/311 Unisex accessible WC equipment packages (Document M)

Specification data - Accessible WC equipment packages
Product Reference

PK8250BE

Left hand with blue (RAL 5011) rails and seat. Luminance value: 6.

PK8250GY

Left hand with grey (RAL 7005) rails and seat. Luminance value: 20.

PK8250WH

Left hand with white (RAL 9003) rails and seat. Luminance value: 76.

PK8350BE

Right hand with blue (RAL 5011) rails and seat. Luminance value: 6.

PK8350GY

Right hand with grey (RAL 7005) rails and seat. Luminance value: 20.

PK8350WH

Right hand with white (RAL 9003) rails and seat. Luminance value: 76.

WC Outlet Connector

WF1240WH

P trap.

WF1241WH

S or P trap.

Standard product features

Material:

Vitreous china (white). Grab rails are powder coated steel.
