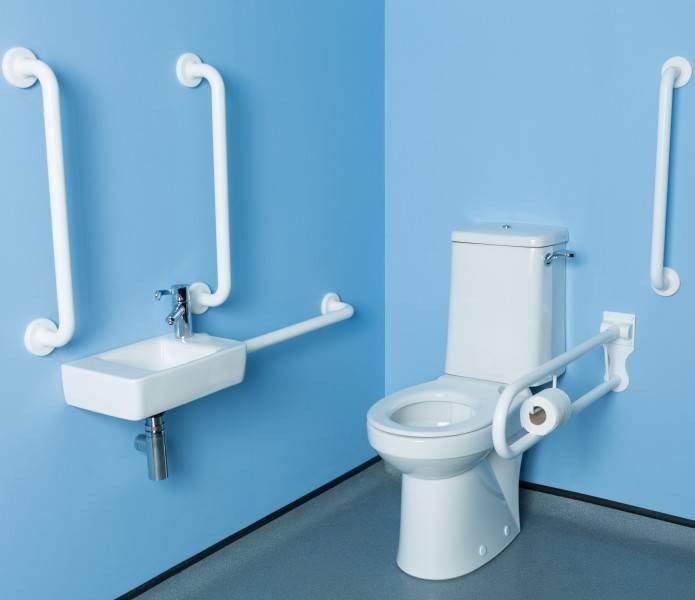

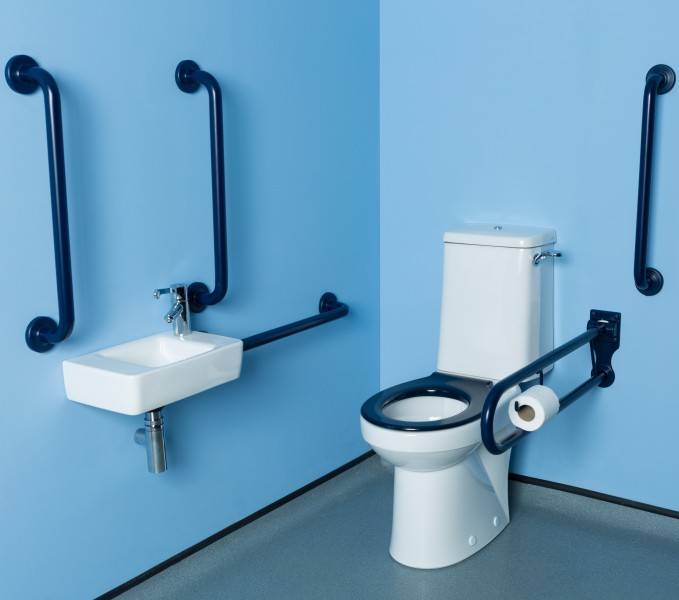

Doc.M Rimless Super Pack
Verified by manufacturer over a year ago
PK8356BE
PK8356BE
Document M pack with a modern rimless design, 4 L flush.
Application
Offices, shops, factories, educational buildings or any premises to which the public is admitted.
Description
Packages of right or left hand fittings and support rails for use in disabled toilet accommodation designed to comply with Building Regulations Approved Document M.
Features and benefits:
- Grab rails and seats available in four colours.
Components:
- Avalon Rimless HO pan and fixings.
- Avalon Rimless cistern, fittings and spatula lever, 4 or 6 L flush.
- Avalon seat ring, stainless steel bar hinge, top fix and stability buffers.
- Doc.M back support with cushion.
- Sola square hand rinse basin 400, no overflow, one tap hole.
- Sola thermostatic basin mixer with fixed spout and copper tails (SF1140CP).
- Four 600 mm grab rails with concealed fixings.
- One 450 mm grab rail with concealed fixings.
- One hinged support rail and toilet roll holder with concealed fixings.
- Wall bolts (pair), grid waste, cistern cover clip.
General information
Color | Blue White Grey |
Finish | Powder coated |
Material | Aluminium Vitreous china Steel |
Warranty description | Two year Guidance for specification option: Accessories and fittings, all wooden products, bath panels, plastic and metal fittings including seats, taps (excluding those listed under 5 year guarantee), cistern fittings, electronic components and ceramic bathroom accessories. |
Uniclass | |
CAWS | N13/311 Unisex accessible WC equipment packages (Document M) N13/12 Unisex accessible WC equipment packages (Document M) |
Specification data - Accessible WC equipment packages
Standards | In accordance with Approved Document M. |
Type approval certificate | WRAS Approved, TMV3 Approved. |
Form | Complete accessible WC Doc M package and fittings. |
Arrangement | Back to wall pack. |
Transfer handing | Right hand. |
Material and colour | |
WC pans | Avalon Rimless HO pan and fixings, vitreous china, white. |
WC cisterns | Avalon Rimless cistern, fittings and spatula lever, 4 L flush.Avalon Rimless cistern, fittings and spatula lever, 6 L flush. |
WC seats | Avalon seat ring, stainless steel bar hinge, top fix and stability buffers, blue (RAL 5011). |
Wash basins | |
Material | Sola square handrinse basin 400, no overflow, one tap hole, vitreous china, white. |
Handrails | Four 600 mm grab rails with concealed fixings, one 450 mm grab rail with concealed fixings, one hinged support rail and toilet roll holder with concealed fixings, blue powder-coated aluminium (RAL 5011). |
Water supply fittings | Sola thermostatic basin mixer with fixed spout and copper tails (SF1140CP). |
