Doc.M Rimless Back-to-Wall Pack

Name: Doc.M Rimless Back-to-Wall Pack
Brand: Twyford Bathrooms
SKU: 8nWTGw5ff7LcB8BJJiBXcX

Verified by manufacturer over a year ago

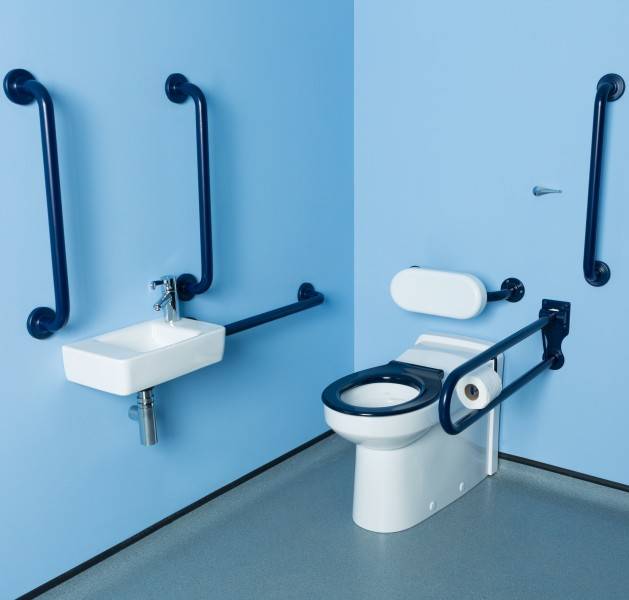

PK8357BE: DOC M Rimless BTW Pack, Right Hand, Concealed Fixings, Blue

Twyford Bathrooms

Document M pack with a modern rimless design, 4 L flush.

Jump to:

+44 (0) 1926 516 800 Website

Application

Offices, shops, factories, educational buildings or any premises to which the public is admitted.

Description

Packages of right or left hand fittings and support rails for use in disabled toilet accommodation designed to comply with Building Regulations Approved Document M.

Features and benefits:

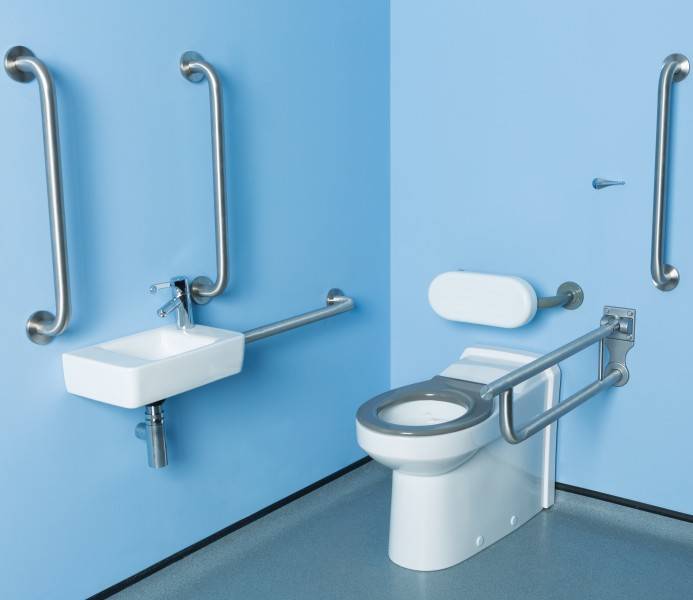

Grab rails and seats available in four colours.

Components:

Avalon 700 mm projection BTW Rimfree pan.
Concealed cistern, single flush lever, 4 L flush.
Avalon 50 mm extension for WC.
Avalon seat ring, stainless steel bar hinge, top fix and stability buffers.
Doc.M back support with cushion.
Sola square hand rinse basin 400, no overflow, one tap hole.
Sola thermostatic basin mixer with fixed spout and copper tails (SF1140CP).
Grid waste, wall bolts (pair).
Four 600 mm grab rails with concealed fixings.
One 450 mm grab rail with concealed fixings.
One hinged support rail and toilet roll holder with concealed fixings.

General information

Color	Blue White Grey
Finish	Powder coated
Material	Aluminium Vitreous china Steel
Warranty description	Two year Guidance for specification option: Accessories and fittings, all wooden products, bath panels, plastic and metal fittings including seats, taps (excluding those listed under 5 year guarantee), cistern fittings, electronic components and ceramic bathroom accessories.

Uniclass	Pr_40_20_60_02 Accessible WC equipment packagesPrimary
CAWS	N13/12 Unisex accessible WC equipment packages (Document M) N13/311 Unisex accessible WC equipment packages (Document M)

Specification data - Accessible WC equipment packages

Standards	In accordance with Approved Document M.
Type approval certificate	WRAS Approved, TMV3 Approved.
Form	Complete accessible WC Doc M package and fittings.
Arrangement	Back to wall pack.
Transfer handing	Right hand.
Material and colour	-
WC pans	Avalon 700 mm projection BTW Rimfree pan, 50 mm extension, vitreous china, white.
WC cisterns	Concealed cistern, single flush lever, 6 L flush.
WC seats	Avalon seat ring, stainless steel bar hinge, top fix and stability buffers, blue (RAL 5011).
Wash basins	-
Material	Sola square handrinse basin 400, no overflow, one tap hole, vitreous china, white.
Handrails	Four 600 mm grab rails with concealed fixings, one 450 mm grab rail with concealed fixings, one hinged support rail and toilet roll holder with concealed fixings, blue powder-coated aluminium (RAL 5011).
Water supply fittings	Sola thermostatic basin mixer with fixed spout and copper tails (SF1140CP).
