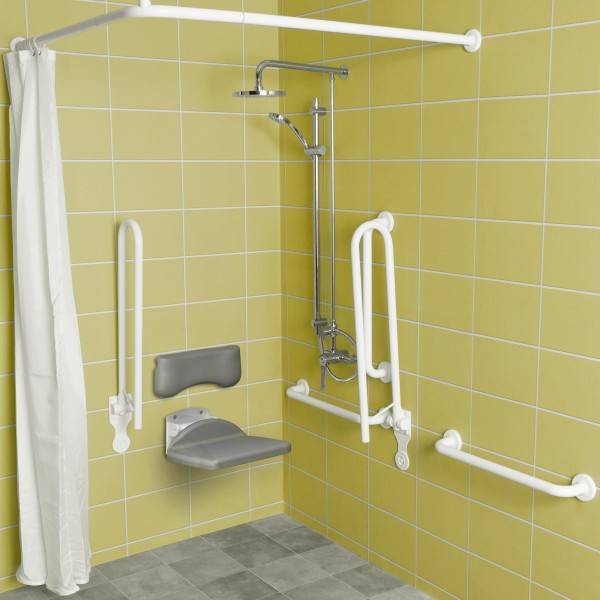

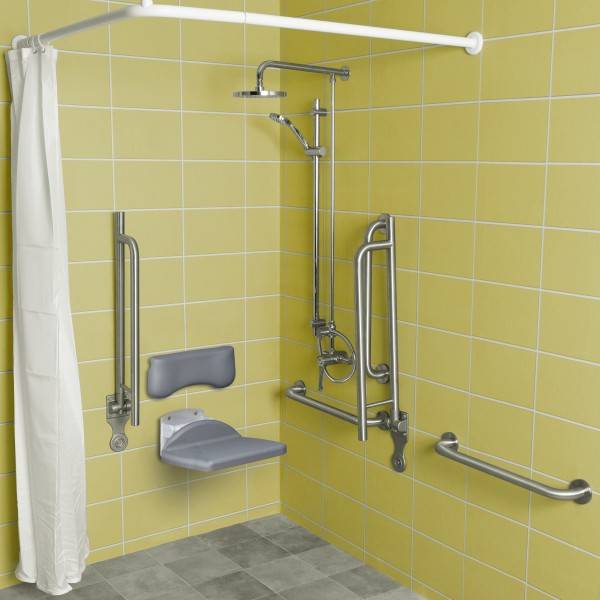

Doc.M Exposed Shower Pack, Concealed Fixings
Verified by manufacturer over a year ago
PK7020BE
PK7020BE
TMV3 approved thermostatic shower valve fixed and moveable shower head BS 8300 compliant shower kit.
Application
Domestic, education, healthcare, hotels, leisure, security, special needs and commercial applications or any premises to which the public is admitted.
Description
A package of shower fittings for use in disabled showers designed to comply with Building Regulations Approved Document M.
Features and benefits:
- Grab rails available in four colours.
- Grab rails available in two materials.
Components:
- Shower rail,1200 x 1200 mm.
- Two shower curtains, 1800 x 2000 mm.
- Exposed shower valve (SF1135CP).
- Shower rail, hose and head.
- 1 m of chromed pipe.
- Shower fixed head.
- Shower diverter.
- Three 600 mm support rails with concealed fixings.
- Two hinged support rails with concealed fixings.
- Pressalit seat and back rest.
General information
Color | Blue Grey Silver White |
Finish | Brushed Powder coated Manufacturer guidanceGrab rails. |
Material | Steel Aluminium Manufacturer guidanceGrab rails. |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Approval | WRAS Approved, TMV3 Approved. |
Form | Exposed wall-mounted shower mixer valve, flexible hose, spray handset, fixed head, sliding rail, shower rail and curtain, support rails and seat kit. |
Materials | |
Body | Aluminium.Guidance for specification option: Grab rails. |
Finish and colour | White / Powder coated Blue (RAL 5011) / Grey (RAL 7005).Guidance for specification option: Shower rail and curtain / Grab rails / Seat. |
Operating pressure (maximum) | 10 bar. |
Thermostatic Valve | SF1135CP, Sola thermostatic exposed shower valve, top outlet. |
