Suitable for Doc M WC facilities in hospitals, clinics, care homes, retirement homes and hotels.

Description

A matt black Doc M compliant WC pack for accessible bathrooms.


The pack includes:

  • Wall hung washbasin, 450 x 400 mm (W x D).
  • Support rail, 600 mm (5 no.).
  • Backrest for wall mounting.
  • Hinged support rail duo, 850 mm projection (1 no.).
  • Fixing material for concrete and lightweight walls.


Features and benefits:

  • Provides a high level of user comfort and convenience.
  • Assists the independence and well-being of users.
  • Hygienic surfaces facilitate cleaning.

General information

Color

Black

Guidance for specification option:

Matt black.

Finish

Powder-coated

Material

Stainless steel

Length

600 mm

Guidance for specification option:

Support rails.

850 mm

Guidance for specification option:

Hinged support rail projection.

Uniclass

Pr_40_20_60_02 Accessible WC equipment packagesPrimary

CAWS

N13/12 Unisex accessible WC equipment packages (Document M)

N13/311 Unisex accessible WC equipment packages (Document M)

Specification data - Accessible WC equipment packages

Standards

In accordance with Approved Document M.

Form

Accessible WC Doc M package and fittings.

Arrangement

Wall-mounted pack.

Transfer handing

Left-hand.

Right-hand.

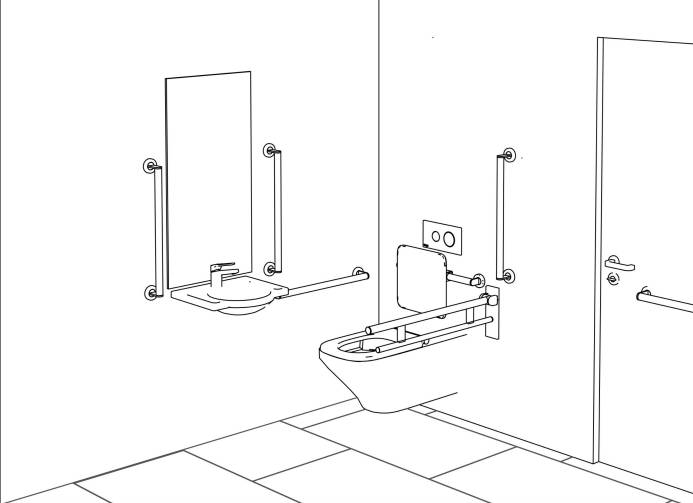

As drawing.

Material and colour

-

Washbasins

-

Material

Mineral composite.

Guidance for specification option:

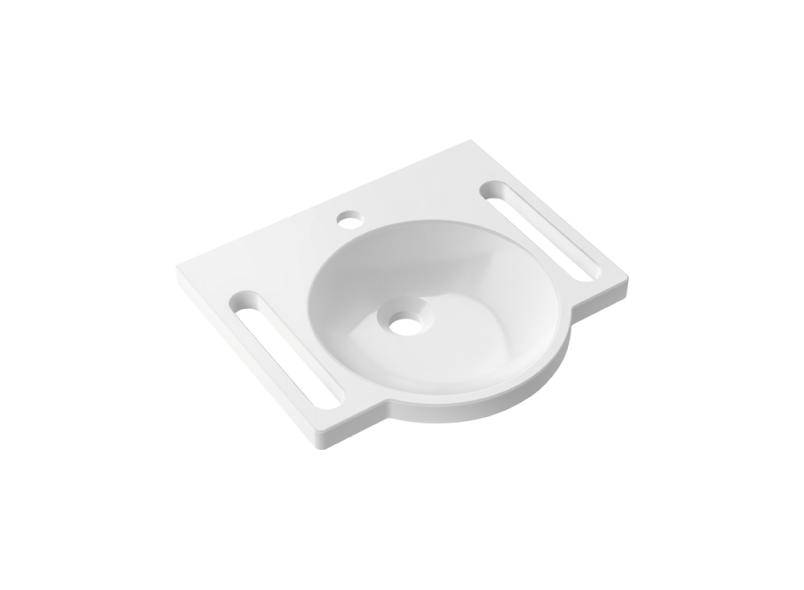

Washbasin | 950.11.501

  • Made of mineral composite with non-porous surface, alpine white.
  • Integrated gripping feature on the side, can be used as a towel holder
  • Without overflow.
  • Prepared for single hole mixer tap.
  • Wheelchair accessible.
  • 450 mm wide and 400 mm deep.
  • For hanger bolt fixing.

Handrails

Matt black powder-coated stainless steel.

Guidance for specification option:

Support rail c to c 600 mm powder-coated | 900.36.00360 DC (x5)

  • Straight rail with supports straight to the wall and roses.
  • Fixing spacing 600 mm, 88 mm deep.
  • Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.
  • Made of stainless steel, powder-coated in the HEWI colour.

Hinged support rail Duo 850 mm projection powder-coated | 900.50.16160 DC (x1)

  • Projection 850 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm. Bottom rail diameter 25 mm.
  • Weight capacity up to 100 kg.
  • Made of stainless steel, powder-coated in the HEWI colour.

Integral accessories

Backrest powder-coated.

Guidance for specification option:

Backrest powder-coated | 900.51.90560 CV

  • Backrest with fixing rails with roses on both sides.
  • For wall mounting.
  • 330 mm high and 150 mm deep, backrest 350 mm wide, rail diameter 32 mm, tube thickness 2 mm.
  • Centre-to-centre from 478 to 578 mm, adjustable on site.
  • Fulfils the requirements to BS 8300:2009+A1:2010/Doc M.

Accessories

Not required.

Soap or disinfectant dispenser with holder.

Hook.

Hygiene waste bin.

WC brush set with lid.

Show more

Fixings

BM10.2 fixing material for fixing on walls made of concrete > C20/C25 and BM12.2 fixing material for fixing on walls.

Guidance for specification option:

BM10.2 Consisting of:

  • 2 stainless steel screws diameter 10 x 95 mm.
  • 2 wall plugs HILTI HUD 14 x 70 mm.

BM12.2 Consisting of:

  • 2 stainless steel screws diameter 10 x 95 mm.

A rear lining is required for installation on lightweight walls (a minimum of 30 mm thickness is required). All load-bearing support products require adequate wall support to ensure they can withstand the forces required of them by law. A standard recommendation would be to reinforce the area holding a support product with 30–50 mm of marine ply. This would also be HEWI’s recommendation.
