DOC M SH Rail with Shower Head Holder - 1100 mm Centres
Verified by manufacturer 1 month ago
900.33.002XA 98 - Satin stainless rail with white shower head holder.
900.33.002XA 98 - Satin stainless rail with white shower head holder.
A range of rails for use in shower environments.
Application
For use in shower environments.
Description
A range of rails for use in shower environments.
Features and benefits:

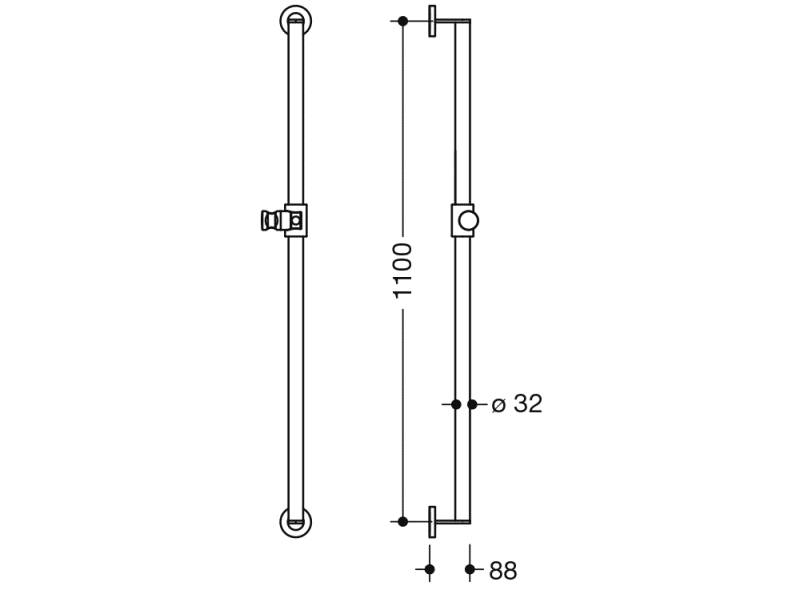

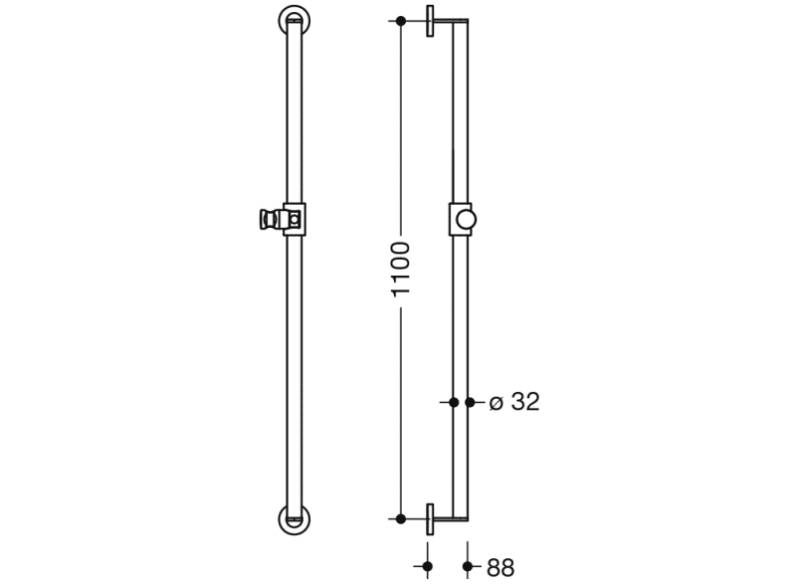

- Vertical rail with supports perpendicular to the wall, mounting and shower head holder.
- Fixing spacing 1100 mm, 88 mm deep.
- Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.
- Manufactured from stainless steel.
- Shower head holder made of high-quality matt polyamide.
- Available in multiple colours and finishes.
General information
Color | White Black Grey Silver |
Finish | Chrome Matt Satin Powder-coated |
Material | Stainless steel Polyamide |
Length | 1100 mm |
Width | 32 mm Manufacturer guidanceDiameter. |
Height | 88 mm Manufacturer guidanceDepth. |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Form | Vertical rail with supports perpendicular to the wall, mounting and shower head holder. |
Materials | |
Body | Stainless steel. |
Finish and colour | Stainless steel, satin.Guidance for specification option: Showerhead holder in matt (signal white). |
Integral accessories | Not required.Soap or disinfectant dispenser with holder - 900.06.00060 DC.Guidance for specification option:
Hook - 162.90.01060 DC.Guidance for specification option:
Bath towel rail - 162.30.20060 DC.Guidance for specification option:
Shower basket corner solution - 900.03.00260 CV.Guidance for specification option:
Manufacturer guidanceThe products are available in the following finishes:
|
Diameter | 32 mm. Guidance for specification option: Rose diameter 70 mm. |
Depth | 88 mm. |
Centres | 1100 mm. |
