DOC M SH Hinged Support Rail Duo 750 mm Projection

Name: DOC M SH Hinged Support Rail Duo 750 mm Projection
Brand: HEWI (UK) Ltd
SKU: whMHXzRQWCTzzNJQwKipTB

Verified by manufacturer 2 months ago

900.50.160XA - Satin stainless steel, 750 mm projection from wall.

Hinged support rails.

Jump to:

Description

A range of hinged support rails.

Features and benefits:

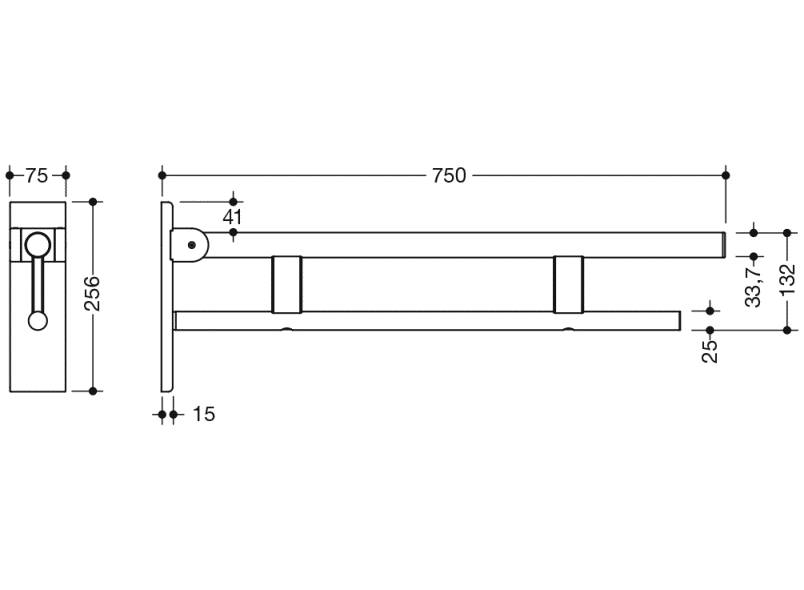

Projection 750 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
Weight capacity up to 100 kg.
Can be folded upwards and folded downwards with braked movement
Manufactured from stainless steel.
Available in multiple finishes and colours.

Color	Silver Black Grey White
Finish	Satin Chrome Matt Powder-coated
Material	Stainless steel
Length	750 mm
Width	75 mm
Height	256 mm

Uniclass	Pr_40_20_76_84 Support railsPrimary
CAWS	N13/69 Support rails and grab bars N13/436 Handrails and grab bars

Form	Hinged.
Diameter	Top rail: 33.7 mm and bottom rail: 25 mm.
Materials	-
Body	Stainless steel.
Finish and colour	Satin, silver.
Integral accessories	Not required. Soap or disinfectant dispenser with holder - 900.06.00060 DC. Guidance for specification option: Holder made of high-quality satin stainless steel. 180 mm high, 85 mm deep, diameter 70 mm. Soap dispenser made of high-quality, satin-finish crystal glass. High-quality chrome-plated pump head. Capacity approx. 200 ml. Hook - 162.90.01060 DC. Guidance for specification option: Cylindrical hook. Made of metal, powder-coated. 35 mm long, diameter 15 mm. Bath towel rail - 162.30.20060 DC. Guidance for specification option: Bath towel rail made of mitred tube. Made of metal, powder-coated. Centre-to-centre 600 mm, 75 mm deep, diameter 18 mm. Shower basket corner solution - 900.03.00260 CV. Guidance for specification option: For wall mounting. Holder made of high-quality stainless steel powder-coated with insert made of high-quality synthetic material. 67 mm high, side length 170 mm Manufacturer guidance The products are available in the following finishes: DX White deep matt. AY Light grey, pearl mica, deep matt. SC Dark grey, pearl mica, deep matt. DC Black deep matt.

Projection	750 mm.
