DOC M SH Grab Rails - 600 mm

Name: DOC M SH Grab Rails - 600 mm
Brand: HEWI (UK) Ltd
SKU: rqugRWcPxdQfpxMpkvyGFj

Verified by manufacturer 2 months ago

900.36.003XA - Satin stainless finish.

HEWI (UK) Ltd

Grab rails.

Jump to:

+44 (0)1634 258200 Website

Description

A range of grab rails.

Features and benefits:

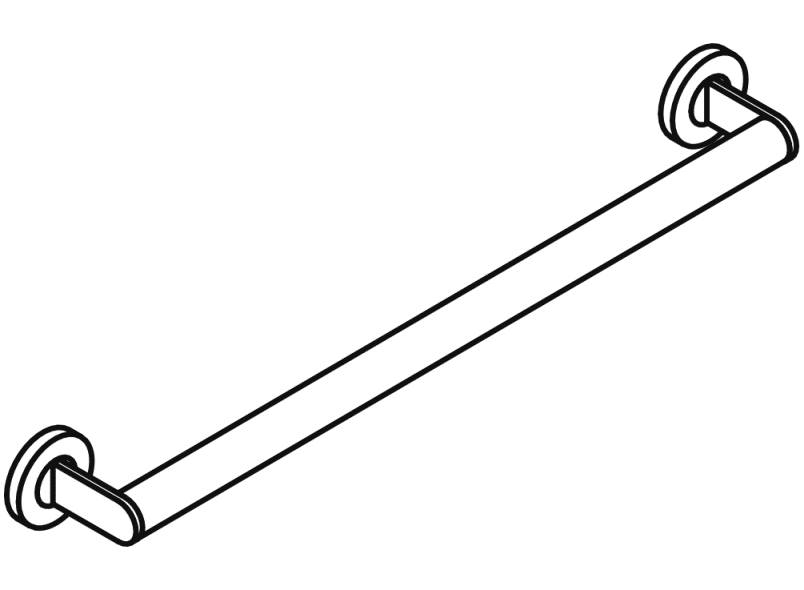

Straight rail with supports straight to the wall and roses.

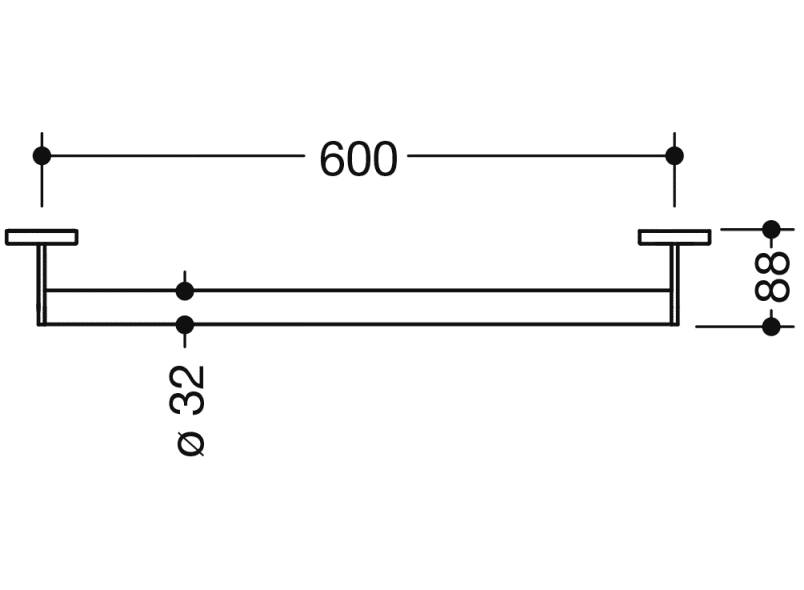

Fixing spacing 600 mm, 88 mm deep.
Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.
Manufactured from stainless steel.
Available in multiple finishes and colours.

General information

Color	Silver Black Grey White
Finish	Satin Chrome Matt Powder-coated
Material	Stainless steel
Shape	Circle
Length	600 mm
Width	32 mm Manufacturer guidance Rail diameter.

Uniclass	Pr_40_20_76_84 Support railsPrimary
CAWS	N13/69 Support rails and grab bars N13/436 Handrails and grab bars

Specification data - Support rails

Form	Fixed.
Diameter	32 mm. Guidance for specification option: Rose diameter: 70 mm.
Materials	-
Body	Stainless steel.
Finish and colour	Satin, silver.
Integral accessories	Not required. Soap or disinfectant dispenser with holder - 900.06.00060 DC. Guidance for specification option: Holder made of high-quality satin stainless steel. 180 mm high, 85 mm deep, diameter 70 mm. Soap dispenser made of high-quality, satin-finish crystal glass. High-quality chrome-plated pump head. Capacity approx. 200 ml. Hook - 162.90.01060 DC. Guidance for specification option: Cylindrical hook. Made of metal, powder-coated. 35 mm long, diameter 15 mm. Bath towel rail - 162.30.20060 DC. Guidance for specification option: Bath towel rail made of mitred tube. Made of metal, powder-coated. Centre-to-centre 600 mm, 75 mm deep, diameter 18 mm. Shower basket corner solution - 900.03.00260 CV. Guidance for specification option: For wall mounting. Holder made of high-quality stainless steel powder-coated with insert made of high-quality synthetic material. 67 mm high, side length 170 mm Manufacturer guidance The products are available in the following finishes: DX White deep matt. AY Light grey, pearl mica, deep matt. SC Dark grey, pearl mica, deep matt. DC Black deep matt.

Depth	88 mm.
Steel thickness	2 mm.

DOC M SH Grab Rails - 600 mm

Description

General information

Color

Finish

Material

Shape

Length

Width

Manufacturer guidance

Uniclass

CAWS

Specification data - Support rails

Form

Fixed.

Diameter

32 mm.

Materials

Body

Stainless steel.

Finish and colour

Satin, silver.

Integral accessories

Not required.

Soap or disinfectant dispenser with holder - 900.06.00060 DC.

Hook - 162.90.01060 DC.

Bath towel rail - 162.30.20060 DC.

Shower basket corner solution - 900.03.00260 CV.

Manufacturer guidance

Depth

Steel thickness
