NBS Source
Compare variants

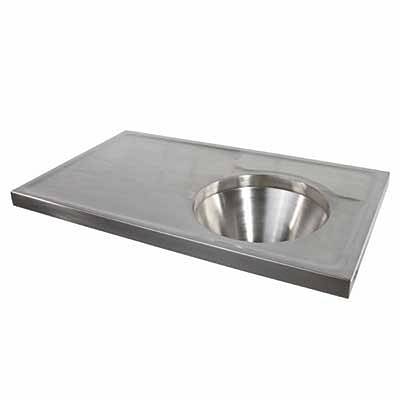

Disposal Hopper and Worktop

Verified by manufacturer 9 months ago

PS8102SS: Disposal Hopper and Worktop Back Inlet, LH Drainer, 1000 x 600

Twyford Bathrooms Variant:

Stainless steel solid and liquid waste disposal unit and sink.

Jump to:
+44 (0) 1926 516 800 www.twyfordbathrooms.com

Application

Suitable for commercial and healthcare applications.

Description

Stainless steel solid and liquid waste disposal unit with continuous flushing rim and drainer, available with ducted or exposed cistern and left or right hand hopper/ drainer.

General information

Color

Silver

Finish

Satin polish

Material

Stainless steel

Length

600 mm

Width

1000 mm

Height

366 mm

WarrantyDescription

25 year

Ceramic products (excluding accessories and fittings), steel and acrylic baths

Uniclass

Pr_40_20_93_37 Hospital pattern disposal unitsPrimary

CAWS

N13/386 Disposal units

Specification data - Hospital pattern disposal units

Approval

HTM 64, code DU HS.

Finish and material

Stainless steel grade EN 1.4301 (type 304).

  • S 2333; AFNOR Z 6 CN 18-09; BS 304S31.
  • 1.5 mm thick.

Hand

Left hand drainer.

Fixing

Not required.

PS9018SS, Cantilever brackets (pair).

PS9019SS, Leg and bearer bracket (pair).

Accessories

None.

PS9017SS, Removable outlet gratings.

OutletDiameter

110 mm.

Cistern

CX9560XX, 6 L concealed cistern, single flush, including lever, SSIO.

For use with back inlet hoppers.

CF3067CP, Lever assembly, remote for high level cisterns or flushing troughs.

For use with back inlet hoppers.

SR1300XX, Bracket high level cistern 165 mm pair nylon coated stw.

Cistern supporting brackets, for use with top inlet hoppers.

Pan connector

WF8602XX, P trap, white plastic.

WF8603XX, S trap, white plastic.

Flushpipes

CF6217WH, Plastic flush pipe, for use with back inlet hoppers.

760 x 510 mm.

CF6410WH, Plastic flush pipe, for use with top inlet hoppers.

Height

366 mm.

Width

1000 mm.

Depth

600 mm.

Weight

13.50 kg.

Inlet

Back inlet.
