Disabled Cantilever Rail - Left Hand - 7030
Verified by manufacturer 5 months ago

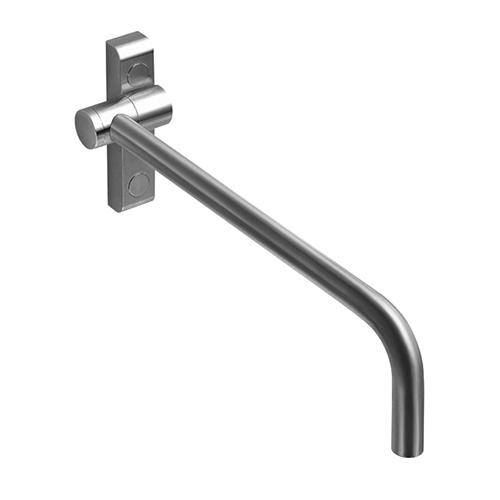

Satin stainless steel 600 mm disabled cantilever rail (left hand).
Application
Suitable for accessible washroom applications.
Description

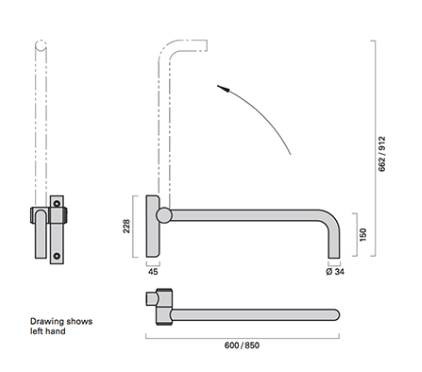

Satin stainless steel 600 x 34 mm diameter wall mounted disabled cantilever rail (left hand).
Features and benefits:
- Maintenance free brushed satin stainless steel
- Can be produced in a variety of finishes depending on the application.
General information
Color | Black Guidance for specification option: Flat matt black. Bronze Guidance for specification option: Light and dark bronze. Gold Silver Other Guidance for specification option: Colour coated. |
Finish | Brushed Antiqued Brass Matt |
Material | Stainless steel Bronze Brass |
Shape | Other |
Length | 600 mm |
Width | 34 mm |
Height | 228 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Hinged (left hand).Guidance for specification option: Cantilever. |
Diameter | 34 mm. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin stainless steel.Polished stainless steel.Light bronze.Dark bronze.Flat matt black.Polished brass.Satin brass.Antique brass.Colour coated.PVD. |
Length | 600 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg·CO₂e/kg |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Vieler Washroom
