Description

For applications where a gully body is not required. For use in high-specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

General information
Uniclass 2015
Floor gullies (Pr_65_52_24_31)Primary
Specification data - Floor gullies
Product Reference

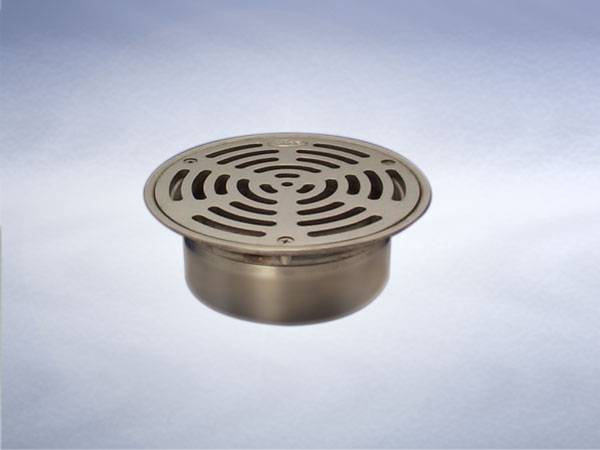

Direct connection grating, stainless steel, trapped

Grating body

K1897+U1404, 176 mm with 110.2 mm vertical outlet, with peripheral slot

With removable bottle trap.

K2197+U1404, 150 mm dia with 110.2 mm vertical outlet, circular grating

With removable bottle trap.

K2397+U1404, 176 mm with 110.2 mm vertical outlet, open grating

With removable bottle trap.

K2497+U1404, 152 mm with 110.2 mm vertical outlet, stainless steel flange 220 mm dia, allows for 6 mm flooring depth

With removable bottle trap.

K2891+U1404, 140 mm with 110.2 mm vertical outlet, flanged with peripheral slot, self-securing

With removable bottle trap.

K2941+U1404, 114 mm with 110.2 mm vertical outlet, security area drainage

With removable bottle trap.

K2991+U1404, 114 mm with 114 mm vertical outlet, security area drainage

With removable bottle trap.

K3497+U1404, 176 mm dia with condensate funnel with vermin guard, for use with sheet floor covering

With removable bottle trap.

K3594+U1404, 150 mm dia with 110.2 mm vertical outlet, security area drainage with Pin Torx screws

With removable bottle trap.

K3694+U1404, 176 mm dia with 110.2 mm vertical outlet, security area drainage for use with sheet floor covering

With removable bottle trap.

L2196+U1404, 150 x 150 mm with 110.2 mm vertical outlet, square grating

With removable bottle trap.

L2791+U1404, 114 x 100 H with condensate funnel with vermin guard

With removable bottle trap.

L2991+U1404, 150 x 150 mm with 110.2 mm vertical outlet, streamline heel-proof reverse wedge profile

With removable bottle trap.

L2992+U1404, 200 x 200 mm with 110.2 mm vertical outlet, streamline heel-proof reverse wedge profile

With removable bottle trap.

L3191+U1404, 150 x 150 mm with 110.2 mm vertical outlet, perforated grating

With removable bottle trap.

L3192+U1404, 200 x 200 mm with 110.2 mm vertical outlet, perforated grating

With removable bottle trap.

L3291+U1404, 150 x 150 mm with 110.2 mm vertical outlet, square perforated grating

With removable bottle trap.

L3292+U1404, 200 x 200 mm with 110.2 mm vertical outlet, square perforated grating

With removable bottle trap.

L3391+U1404, 150 x 150 mm with 110.2 mm vertical outlet, anti-slip mesh

With removable bottle trap.

L3392+U1404, 200 x 200 mm with 110.2 mm vertical outlet, anti-slip mesh

With removable bottle trap.

L3491+U1404, 150 x 150 mm with 110.2 mm vertical outlet, plain mesh

With removable bottle trap.

L3492+U1404, 200 x 200 mm with 110.2 mm vertical outlet, plain mesh

With removable bottle trap.

L3591+U1404, 173 x 173 mm with 110.2 mm vertical outlet, plain mesh grating for use with sheet floor covering

With removable bottle trap.

L3592+U1404, 223 x 223 mm with 110.2 mm vertical outlet, plain mesh grating for use with sheet floor covering

With removable bottle trap.

L3691+U1404, 173 x 173 mm with 110.2 mm vertical outlet, anti-slip mesh grating for use with sheet floor covering

With removable bottle trap.

L3692+U1404, 223 x 223 mm with 110.2 mm vertical outlet, anti-slip mesh grating for use with sheet floor covering

With removable bottle trap.

L3791+U1404, 173 x 173 mm with 110.2 mm vertical outlet, Streamline heel-proof reverse wedge profile for use with sheet floor covering

With removable bottle trap.

L3792+U1404, 223 x 223 mm with 110.2 mm vertical outlet, Streamline heel-proof reverse wedge profile for use with sheet floor covering

With removable bottle trap.

L3891+U1404, 173 x 173 mm with 110.2 mm vertical outlet, perforated grating for use with sheet floor covering

With removable bottle trap.

L3892+U1404, 223 x 223 mm with 110.2 mm vertical outlet, perforated grating for use with sheet floor covering

With removable bottle trap.

L3991+U1404, 173 x 173 mm with 110.2 mm vertical outlet, perforated grating for use with sheet floor covering

With removable bottle trap.

L3992+U1404, 223 x 223 mm with 110.2 mm vertical outlet, perforated grating for use with sheet floor covering

With removable bottle trap.

L5395+U1404, 135 x 135 mm with 110.2 mm vertical outlet, hinged cover with a circular non-secured grating inside

With removable bottle trap.

L5398+U1404, 150 x 150 mm with 110.2 mm vertical outlet, hinged cover with a circular non-secured grating inside

With removable bottle trap.

Accessories

None

U703, Backwater valve 3"

U704, Backwater valve 4"

Standard product features

Body material:

Stainless steel body, removable bottle trap.

Product Options

  • Pin Torx screws for security applications, suffix H.
  • Polished finish, suffix P.
