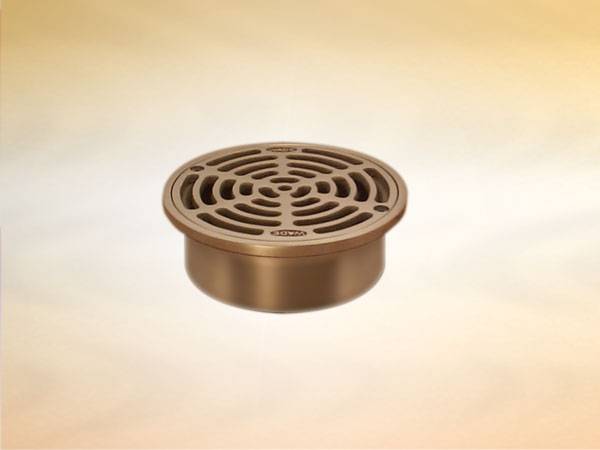

Direct connection gratings, nickel bronze, trapped

Description

For applications where a gully body is not required. For use in pedestrian areas, versions are available to suit a variety of floor finishes, including ceramic or vinyl tiles, marble, terrazzo, resin, carpet, wood, sheet floor covering and trowel-applied composition flooring.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Direct connection grating, nickel bronze, trapped

Grating body

K2191+U1404, 135 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K2193+U1404, 152 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K2291+U1404, 176 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K2392+U1404, 176 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K2491+U1404, 150 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K2691+U1404, 176 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K3191+U1404, 135 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

K3391+U1404, 150 mm funnel with 110.2 mm vertical outlet

With removable trap.

K3491+U1404, 176 mm funnel with 110.2 mm vertical outlet

With removable trap.

K3492+U1404, 176 mm funnel with 110.2 mm vertical outlet

With removable trap.

L2192+U1404, 135 x 135 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2193+U1404, 150 x 150 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2194+U1404, 201 x 201 mm for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet

With removable bottle trap.

L2292+U1404, 125 x 430 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2391+U1404, 150 x 150 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2496+U1404, 150 x 150 mm contoured grating with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2498+U1404, 150 x 150 mm contoured grating with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2591+U1404, 150 x 150 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L2891+U1404, 150 x 150 mm funnel with 110.2 mm vertical outlet

With removable trap.

L2893+U1404, 150 x 150 mm funnel with 110.2 mm vertical outlet

With removable trap.

L3091+U1404, 161 x 161 mm with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L5391+U1404, 150 x 150 mm covered grating with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

L5491+U1404, 150 x 150 mm sealed cover grating with 110.2 mm vertical outlet

Suited to a high volume of pedestrian traffic; with removable bottle trap.

Accessories

None

U703, Backwater valve 3"

U704, backwater valve 4"

Standard product features

Body material:

Nickel bronze body, removable bottle trap.

Product Options

  • Pin Torx screws for security applications, suffix H.
  • Polished finish, suffix P.
  • Polished bronze (gunmetal), suffix PB - check availability.
