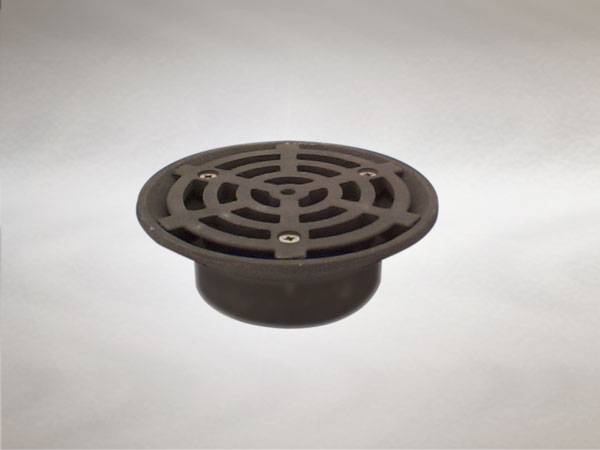

Direct connection gratings, cast iron, trapped
Description

For applications where a gully body is not required.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

Direct connection grating, cast iron, trapped

Grating body

K2193CI+U1404, 155 mm suited for pedestrian areas with high volumes of traffic, with 110.2 mm vertical outlet, for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

K2591+U1404, 176 mm suited for service and parking areas and plant rooms with 110.2 mm vertical outlet, for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L2591CI+U1404, 150 x 150 suited for pedestrian areas with high volumes of traffic with 110.2 mm vertical outlet, for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

L2691+U1404, 150 x 150 suited for service and parking areas and plant rooms with 110.2 mm vertical outlet, for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic; with removable bottle trap

Standard product features

Body material:

Cast iron body, removable bottle trap.

Product Options

  • A - asphalt membrane clamp (K2591+U1404 only).
  • H – Fitted with pin hex screws for security applications.
