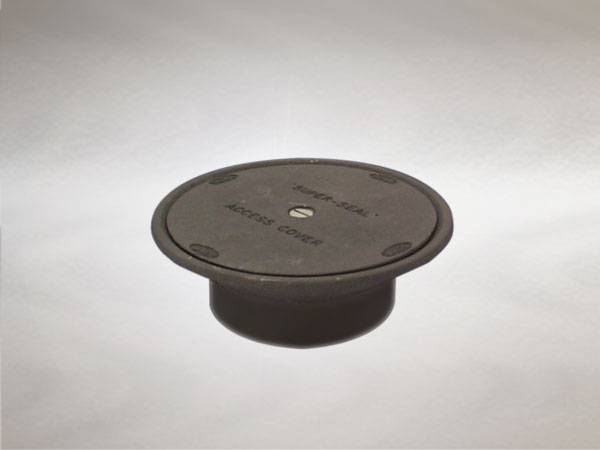

Direct connection access covers, non-trapped
Description

For applications where a gully body is not required.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/390 Rodding eyes

Specification data - Floor gullies

Product Reference

Direct connection access cover, non-trapped

Access cover

-

Ductile iron

Not required

K5891, 176 mm dia. double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5791, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

Nickel bronze

Not required

K5192, 176 mm dia. gasketed, for use with sheet floor covering, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5241, 135 mm dia. gasketed, with 82.5 mm vertical outlet for connection to 75 mm cast iron DIN 19522 and plastic

K5292, 135 mm dia. gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5293, 150 mm dia. gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5391, 152 mm dia. gasketed, for use with trowel applied composition covering, 4 mm flange depth, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5491, 155 mm dia. plug with ‘O’ ring seal for use in plunge and foot baths, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5591, 152 mm dia. double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5691, 176 mm dia. double sealed, for use with sheet floor covering, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5791, 152 mm dia. double sealed, recessed (19 mm depth) for flooring material, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5191, 135 x 135 mm gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5193, 160 x 160 mm gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5291, 150 x 150 mm hinged cover in square frame, unsealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5391, 150 x 150 mm covered grating for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet

L5491, 150 x 150 mm sealed cover grating for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet

L5591, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5691, 150 x 150 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

N212, 142 mm dia. gasketed, for use with sheet floor covering, with 1½" BSP vertical outlet

N214, 142 mm dia. gasketed, for use with sheet floor covering, with 1½" BSP vertical outlet

N216, 142 mm dia. gasketed, for use with sheet floor covering, with 2" BSP vertical outlet

N218, 142 mm dia. gasketed, for use with sheet floor covering, with 2" BSP vertical outlet

N302, 142 mm dia. gasketed, for use with sheet floor covering, with 87 mm vertical outlet for connection to75 mm cast iron BS 416

N304, 142 mm dia. gasketed, for use with sheet floor covering, with 82.5 mm vertical outlet for connection to 75 mm cast iron DIN 19522 and plastic

N306, 142 mm dia. gasketed, for use with sheet floor covering, with 75 mm vertical outlet for connection to DIN 75 mm O. D. pipework

N404, 146 mm dia. gasketed, for use with sheet floor covering, with 117 mm vertical outlet for connection to 100 mm cast iron BS 437

N409, 146 mm dia. gasketed, for use with sheet floor covering, with 122 mm vertical outlet for connection to 100 mm supersleeve

Stainless steel

Not required

K5197, 176 mm dia. for use with sheet floor covering, unsealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS416/ DIN 19522 and plastic

K5297, 150 mm dia. gasketed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS416/ DIN 19522 and plastic

K5397, 150 mm dia. gasketed, for use with trowel applied composition covering, 6 mm flange depth, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5597, 150 mm dia. double sealed, for use with floors finished with tiles, marble, terrazzo etc, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

K5697, 176 mm dia. double sealed, for use with sheet floor covering, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5395, 135 x 135 mm hinged cover with circular non-secured grating inside, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5398, 150 x 150 mm hinged cover with circular non-secured grating inside, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5597, 147 x 147 mm double sealed, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

L5897, 150 x 150 mm double sealed, recessed for flooring material, with 110.2 mm vertical outlet for connection to 100 mm cast iron BS 416/ DIN 19522 and plastic

Accessories

None

U703, Backwater valve 3"

U704, backwater valve 4"

Product Options

Ductile iron access covers:

H – Fitted with Pin Torx screws for security applications.

Nickel bronze access covers:

  • H – Fitted with Pin Torx screws for security applications (does not apply to K5491 and L5291).
  • P – Polished.
  • PB – Polished bronze (applies to K5192, K5292, K5491, K5791, L5191, L5193, L5691, N212, N214, N216, N218, N302, N304, N306, N404 and N409). Check availability.

Stainless steel access covers:

  • H – Fitted with Pin Torx screws for security applications.
  • P – Polished.
