Direct Acting Heater - Girona

Description

Advanced performance designer glass fronted panel heater in white or black finish.

Features and benefits:

  • Elegant designer Panel with upwards facing grille for optimum heat circulation.

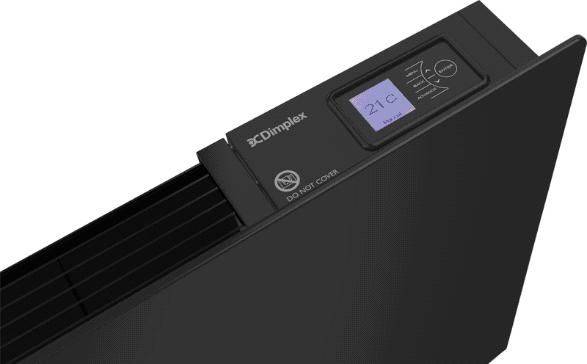

  • Intuitive user controls with RGB backlit LCD display.
  • User programmable room temperatures with multiple seven-day timer profiles.
  • Electronic thermostat accurate to within 0.2°C.
  • Energy-saving technologies such as Adaptive Start and Open Window Detection.
  • Aesthetics to compliment storage heater ranges.
  • Splash-proof for use in bathrooms.
  • Complies with Lot 20 of ERP Directive.
  • CE and BEAB certified.

Supplied with a two year warranty.

General information

Color

White

Material

Durable epoxy-polyester powder coated steel casing, toughened safety glass. Temperature resistant PBT thermoplastic moulded parts

Size

530 x 565 x 107 mm

WarrantyDescription

2 years

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

Girona

Type

GFP050WE

White glass front. Loading: 0.50 kW. Size (h x w x d): 565 x 530 x 107 mm.

GFP075WE

White glass front Loading: 0.75 kW. Size (h x w x d): 565 x 530 x 107 mm.

GFP100WE

White glass front Loading: 1 kW. Size (h x w x d): 565 x 700 x 107 mm.

GFP150WE

White glass front Loading: 1.5 kW. Size (h x w x d): 565 x 770 x 107 mm.

GFP200WE

White glass front Loading: 2 kW. Size (h x w x d): 565 x 940 x 107 mm.

GFP050WE

White glass front. Loading: 0.50 kW. Size (h x w x d): 565 x 530 x 107 mm.

GFP075WE

White glass front Loading: 0.75 kW. Size (h x w x d): 565 x 530 x 107 mm.

GFP100WE

White glass front Loading: 1 kW. Size (h x w x d): 565 x 700 x 107 mm.

GFP150WE

White glass front Loading: 1.5 kW. Size (h x w x d): 565 x 770 x 107 mm.

GFP200WE

White glass front Loading: 2 kW. Size (h x w x d): 565 x 940 x 107 mm.

Standard product features

Technical characteristics:

  • Thermostat: Electronic, accurate to ±0.2°C.
  • Thermal cut out: Automatic reset.
  • Element: Compact, finned, mineral filled and sheathed for silent operation.
  • Approvals: CE and BEAB.
  • IP rating: IP24.

Power controls:

  • Digitally controlled, Electronic Thermostat accurate to (±0.2oC).
  • Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day, Holiday.
  • Continuous heat modes: Eco, Manual, Frost Protect, Setback, Runback, Off.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Download now from NBS National BIM Library

Third party certifications

  • CE
  • BEAB
