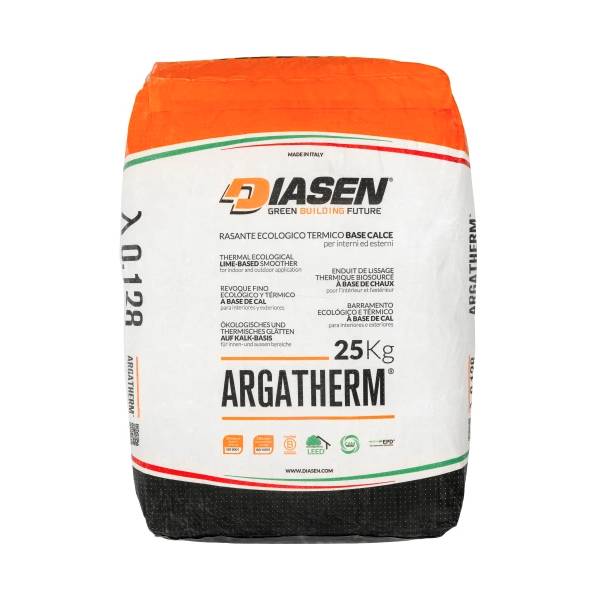

Diasen Argatherm - Finishing Lime Skim Coat

Verified by manufacturer 15 hours ago

Diasen Product certifications:
  • EPD

    EPD

    Certificate type

Lightweight lime finishing skim coat with thermal mineral fillers and natural microfibres.

Jump to:
Request BIM
01228 711511 Website

Application

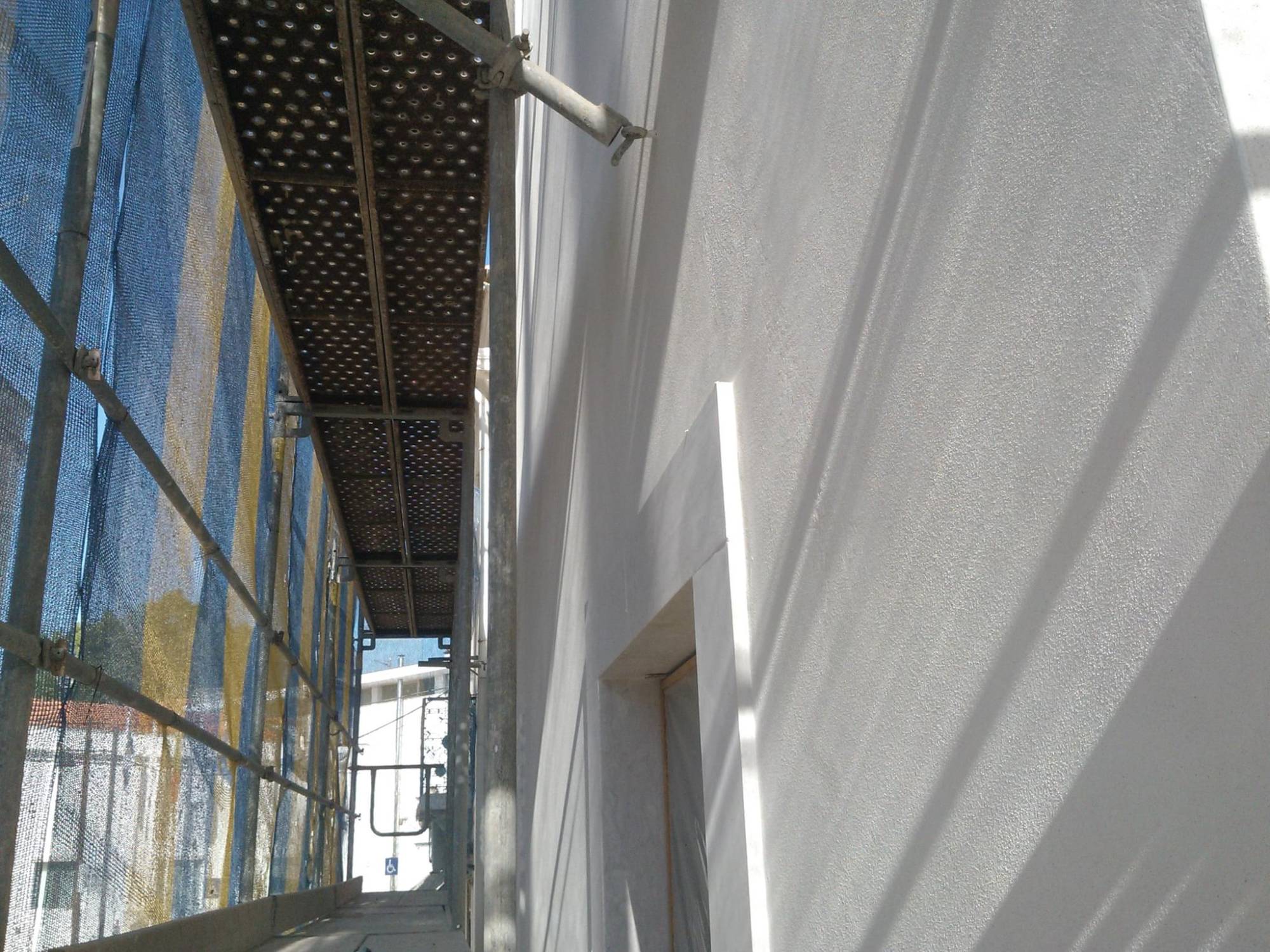

  • Indoor and outdoor lime skimming coat suitable for finishing walls and ceilings, Diathonite plasters (see related technical data sheets), new and old plasters, cementitious or lime and cement-based substrates.
  • Argatherm can be used on all types of substrates whose nature does not allow the direct application of the finish. Its high lightness and breathability, together with the antibacterial properties of hydrated lime, contribute to a healthy environment and high living comfort.
  • A natural product that is suitable where moisture vapour diffusion open (breathable) materials are required.
  • The finished surface should be painted with a suitable natural breathable paint.
  • In order to prevent micro-cracking, Polites 80 fine reinforcing mesh should be installed between the two finished coat layers of Diathonite Argatherm.

Description

Finishing lime skim coat formulated with very fine expanded mineral fillers having a microporous internal structure that gives the product exceptional thermal insulating properties and workability.

Argatherm is also composed of air binders, very pure mineral aggregates of calcareous origin (grain size 0–0.6 mm) and natural microfibres (200 µm); it is totally harmless for the environment and for human health. The combination of accurate grain size range, microfibre-reinforced matrix and the use of specific additives ensures high workability during application and excellent adhesion to substrates. Suitable for indoor and outdoor use, it guarantees excellent coverage of the substrate and “a civile" (rough/textured) type finish using a sponge trowel or smoother with a plastic trowel.

Features and benefits:

  • Light and with thermal features: category T2 ≤ 0.2 W/mK. (actual thermal conductivity is 0.128 W/mK)
  • Natural raw materials and is harmless to the environment.
  • Fibre-reinforced skimming plaster with non-toxic, ecological natural microfibres (200 µm).
  • Thermal properties and high vapour permeability thanks to the microporous structure of the natural fillers and airborne binders.
  • In combination with Diathonite plasters, it guarantees an excellent thermo-hygrometric comfort and high insulating performances.
  • It avoids mould formation thanks to the antibacterial function of lime.
  • High workability and yield during application.
  • Applicable in thicknesses from 2 mm up to 10 mm.
  • Argatherm is CE certified (EN 998-1).

General information

Color

White

Finish

Smooth

Material

Mineral

Aggregate

Hydraulic lime

Lime

Guidance for specification option:

Hydrated lime.

Shape

Formless

Warranty description

Ten year

Guidance for specification option:

10 year post application warranty.

Manufacturer guidance

Shelf life of this product is one year.

Uniclass

Pr_35_31_64_12 Cementitious rendersPrimary
Pr_35_31_64_32 Finish plasters

CAWS

M20/47 One coat proprietary plaster

M20/42 Multicoat proprietary plaster

M20/19 Proprietary cement gauged render

M20/240 One coat proprietary plaster

M20/220 Multicoat proprietary plaster

M20/160 Proprietary cement gauged render

SKU Code

DAT

Specification data - Cementitious renders

Classification data

Product reference

Diasen Argatherm.

Components

Hydrated and hydraulic lime, thermal mineral fillers and natural microfibres.

Standard

To EN 998-1.

Reinforcement

Aggregates.

Guidance for specification option:

Grain size: 0–0.6.

Colour

White.

Typical yield

1.2 kg/m² (± 10%) for each mm of thickness.
3.6 kg/m² (± 10%) per 3 mm of thickness (On Diathonite plasters).

Density

1050 kg/m³ (±10%).

Application temperature

+5°C to +30°C.

Reaction to fire

To EN 13501-1, A1.

Compressive strength

≥15 N/mm² (28 days).

Manufacturer guidance

  • EN 1015-11: class CS IV.
  • EN 1504-3: class R2.

Vapour Permeability

To EN 1015-19, µ ≤15.

Thermal conductivity (maximum)

To EN 12667, 0.128 W/mK.

Water absorption by capillarity

To EN 1015-18, W0.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Manufacturing plant location

Material

Mineral
Aggregate
Hydraulic lime
Lime

Guidance for specification option:

Hydrated lime.

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/unit)
Stage:A1–A3 ('Production stage')
Normalised unit : 0.002 (kg CO₂ eq/kg)
Declared unit : 1.62

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

100 year

Product certifications

Product certifications

EPD

EPD

Diasen Argatherm Environmental Product Declaration (EPD)

Literature

Diasen Argatherm Material Safety Datasheet

Diasen Argatherm Material Safety Datasheet

Diasen Argatherm Technical Datasheet

Diasen Argatherm Technical Datasheet

Diasen Argatherm Declaration of Performance (DOP) EN 1641300 (CE)

Diasen Argatherm Declaration of Performance (DOP) EN 1641300 (CE)
