Desk Height Base Unit

Verified by manufacturer 3 months ago

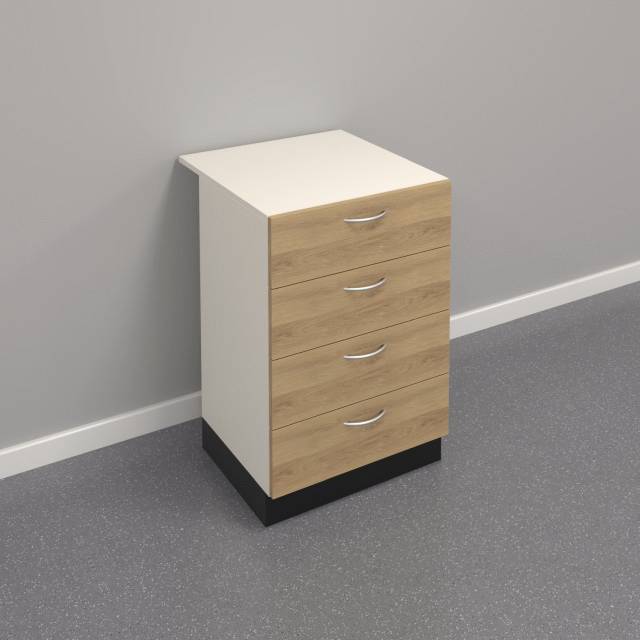

Desk height base unit with four equal drawers

Hygenius Variant:

Desk height base unit available in a range of sizes.

Jump to:
BIM object icon
+44 (0)1738 633184 Website

Application

Suitable for use in healthcare, primary and acute care settings.

Description

Hygenius® Desk Height Base Units. Available in variants with drawers and/ or doors. Units include solid tops and backs to increase robustness and reduce infection control risks by providing an easy to wipe surface within the unit.


Features and benefits:

  • Carcase constructed from 18 mm melamine faced particleboard 660 kg/m³, certified in accordance with EN312.
  • 18 mm one-piece solid top and back.
  • 2 mm high impact ABS lipping to all visible edges.
  • Heavy duty, easy clean hinges with soft close mechanism.
  • Five lever zinc alloy locks [where specified].
  • Profiled Hygenius® handle.
  • Cupboard units fitted with height adjustable shelf comes with anti-tilt safety fixings.
  • Adjustable ABS feet.
  • Laminate faced plywood plinth rail.
  • Drawer units fitted with Hygenius® alu-metallic heavy duty drawers with fully enclosed roller bearing runners and soft close action.
  • Protective end panels [where required].
  • Finishes from Hygenius® Colour Options range.

General information

Color

Finishes from Hygenius® Colour Options range.

-

Finish

Other

Material

Particleboard

Shape

Rectangle

Length

300 mm

  • Desk height base unit with four equal drawers.
  • Desk height base unit with one full height door and one adjustable shelf.
  • Desk height base unit with two standard drawers and one deep drawer.
  • Desk height open base unit with one adjustable shelf.

400 mm

  • Desk height base unit with four equal drawers.
  • Desk height base unit with one full height door and one adjustable shelf.
  • Desk height base unit with two standard drawers and one deep drawer.
  • Desk height open base unit with one adjustable shelf.

500 mm

  • Desk height base unit with four equal drawers.
  • Desk height base unit with one full height door and one adjustable shelf.
  • Desk height base unit with two standard drawers and one deep/ filing drawer.
  • Desk height open base unit with one adjustable shelf.

600 mm

  • Desk height base unit with four equal drawers.
  • Desk height base unit with one full height door and one adjustable shelf.
  • Desk height base unit with two standard drawers and one deep/ filing drawer.
  • Desk height open base unit with one adjustable shelf.

800 mm

  • Desk height base unit with two full height doors and one adjustable shelf.
  • Desk height open base unit with one adjustable shelf.

Show more

Width

475 mm

Height

648 mm

WarrantyDescription

Lifetime

Uniclass

Pr_40_30_87_42 Kitchen drawer unitsPrimary

CAWS

N10/135 Storage and display units

Specification data - Kitchen drawer units

Dimensions

300 x 475 x 648 mm.

400 x 475 x 648 mm.

500 x 475 x 648 mm.

600 x 475 x 648 mm.

Doors

-

Material

Melamine faced particle board.

Finish and colour

Melamine.

Side panels, plinths and pelmets

-

Material

Melamine faced particle board.

Finish and colour

Melamine.

Carcass

White.

Locking

Five-lever zinc alloy locks.

Feet

Acrylonitrile butadiene styrene (ABS).

Handles

Profiled stainless steel handle.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1
