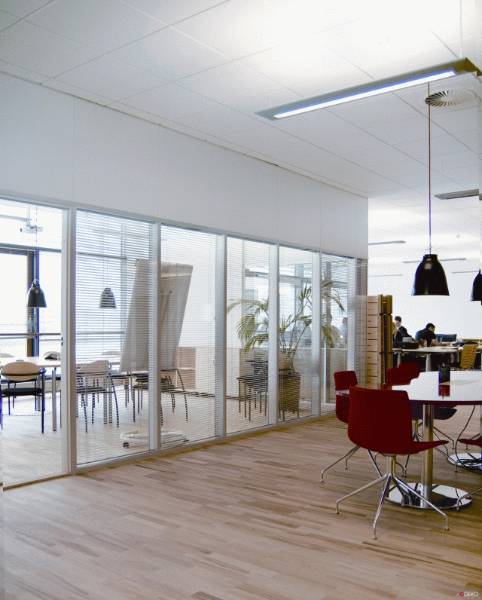

Deko MG
Preassembled double glazed modules.
Description
Double glazed modules can be installed quickly into the system partition Deko PV and Deko PF, type 1090 and 1290, or a conventional drywall, without any need for site modifications.
Deko MG modules are preassembled and are constructed with two layers of 5 mm float or toughened glass. A high sound reduction up to 48 dB is provided due to the large gap between the panes of glass, but the achieved value for sound reduction depends on the percentage of glazed modules of the total partition area.
The modules are produced in standard sizes: 9 x 10, 9 x 12 and 9 x 21 m with toughened glass, in natural anodized or white powder coated aluminium frame. Non-standard frame sizes and colours are available.
Features:
- Standard modules with toughened glass.
- Easy and fast installation.
- Demountable and reusable.
General information
Size | 9 x 10 m 9 x 12 m 9 x 21 m |
Finish | Satin anodized White powder coated RAL Insert colour. |
Features | Standard modules with toughened glass Easy and fast installation Demountable and reusable |
Uniclass 2015 | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Product Reference | Deko MG |
Type | MG 109092 mm partition thickness. MG 1290118 mm partition thickness. |
Size | 9 x 10 m9 x 12 m9 x 21 m |
Finish | Satin anodizedWhite powder coatedRALInsert colour. |
Manifestation | - |
Integral blinds | Manufacturer's standardInsert colour. |
Standard product features | Abutments:
Glazing: 5 + 5 mm clear toughened glass. Sound insulation: 41 dB. The sound reduction achieved by the partition depends on the percentage of the glazed modules of the total partition area. |
Product Options | Glazing manifestation: Applied manifestations are possible; please consult with Deko for details. Integral blinds: 25 mm fine line blinds available with specialist options available, please consult with Deko for details. |
Literature
Deko MG - Preassembled Double Glazed Modules
