Application

Used to prevent unwanted or unauthorized vehicle entry. It provides a visual deterrent, and the inherent strength prevents any vehicle-borne attack. Blockers are commonly placed behind swing or sliding gates.

Description

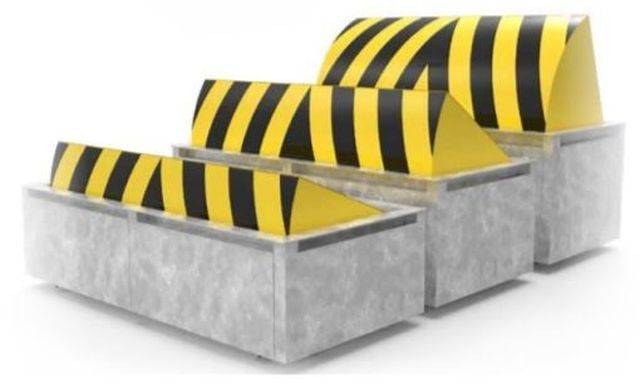

Automatic rising kerb.

Features and benefits:

  • Motor-driven barrier.
  • Inverter-driven, three-phase pump.

Application:

Used to prevent unwanted or unauthorized vehicle entry. It provides a visual deterrent, and the inherent strength prevents any vehicle-borne attack. Blockers are commonly placed behind swing or sliding gates.

General information
Color

Yellow and black

Features

Motor driven barrier, inverter driven three phase pump

Finish

Epoxy primed and polyester powder coated with a galvanised lower frame finish

Material

galvanised mild steel

Size

800 x 5000 mm

Uniclass 2015
Rising kerbs (Pr_25_30_86_72)Primary
Specification data - Rising kerbs
Product Reference

Defender

MountingType

Recessed

Method of operation

Electronically raised and lowered

Width

Insert requirement, available 2000–5000 in 500 mm increments.

Height rise

340 mm

500 mm

800 mm

Maximum axle weight

12 tonnes

Operating time

1.5–8 seconds

Drive

Remote hydraulic pack with three-phase motor (inverter-driven)

Control system

Schneider PLC

Cycles

100% continuous duty rating

Construction

All welded steel rectangular hollow section (RHS)

Cover plates

8 mm durbar (mechanically fixed)

Standard product features

Colour:

Yellow and black.

Finish:

  • Rising element: epoxy-primed and polyester powder-coated.
  • Lower frame: galvanized.

Material:

Carbon steel.

Size:

800 x 5000 mm.

Power supply:

230 V AC, 50 Hz, 10 A.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
Literature
