Deepflow semi-elliptical PVC-U gutter

Third party certifications:
  • BSI Kitemark

    Certificate type

  • BRE Certificate

    Certificate type

Marley Plumbing & Drainage

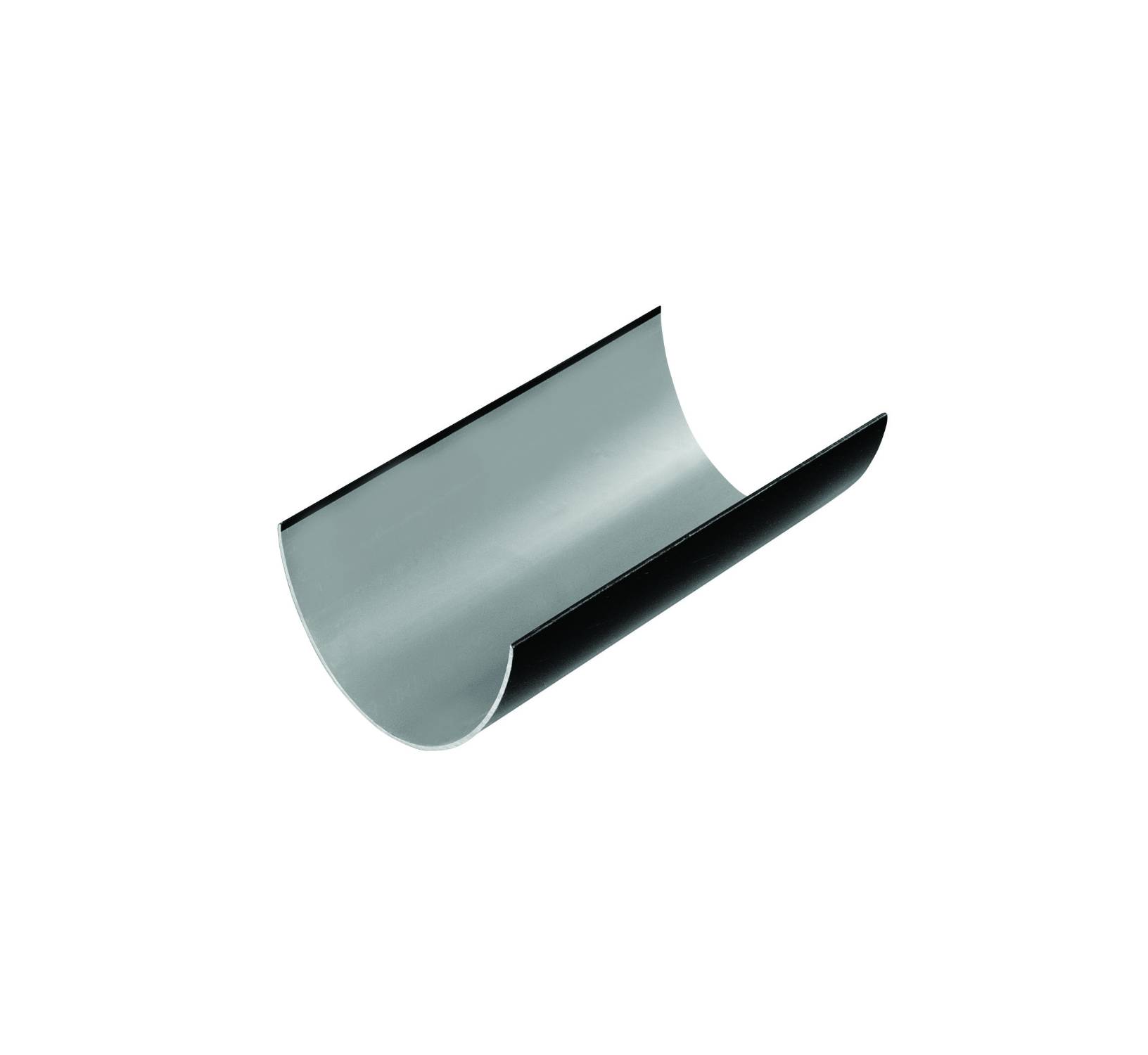

Deepflow, semi-elliptical PVC-U gutter with a width of 110 mm, very high capacity.

Jump to:
+44 (0)1622 858888 www.marleypd.co.uk
Description

Marley Deepflow PVC-U semi-elliptical gutter produces self cleansing flow, resulting in a very high capacity. Deepflow can be jointed using a notched or notchless joint.

Related product:

68 mm circular downpipe or 65 mm square downpipe.

General information
Specification data
Product Reference

Deepflow semi-elliptical PVC-U gutter

System colour

Black

Brown

Grey

White

Gutter

Deepflow semi-elliptical; length 3000 mm, RGD3

Deepflow semi-elliptical; length 4000 mm, RGD4

Contractor's choice

Fittings -
Union brackets

Ref RUD10

Notch adaptors, RGNA1

Fit to RUD10 union brackets when fitting original notched Deepflow gutters.

Contractor's choice

Angles

None

90°, RAD10

45°, RAD20

___° non standard, RFB21

Non standard angles are available to order. Consult manufacturer for details.

Contractor's choice

Outlets

Running, ROD10, 68 mm circular spigot

Stop end, ROD20, 68 mm circular spigot

Contractor's choice

Stop ends

Ref RED10

Brackets and rafter arms

22.5° fascia bracket angle adaptor, RKA1

30° fascia bracket angle adaptor, RKA2

Adjustable side rafter arm, RSA1A

Galvanized steel. Use in conjunction with RKD1 fascia brackets.

Adjustable top rafter arm, RTA1A

Galvanized steel. Use in conjunction with RKD1 fascia brackets.

Fascia bracket spacer/ height adjuster, RGS1

Fascia bracket, RKD1

Fixed 22.5° side rafter arm, RSA1

Electro-plated mild steel. Use in conjunction with RKD1 fascia brackets.

Fixed 22.5° top rafter arm, RTA1

Electro-plated mild steel. Use in conjunction with RKD1 fascia brackets.

Rise and fall extension arm, RKF1

Electro-plated mild steel. Use in conjunction with RKD1 fascia brackets.

Contractor's choice

Accessories

None

Leaf guard, RV225

Contractor's choice

Standard product features

Dimensions:

Size: 110 x 75 mm.

Third party certifications
  • Certificate: Kitemark, to BS EN 607 : Licence number KM 511253
  • Certificate: Kitemark, to BS EN 1462 : For RKD1
