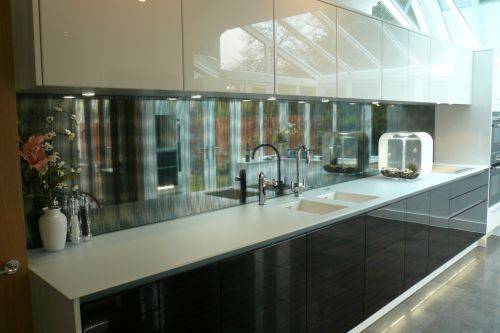

Decorative Laminated Glass
Description

Decorative laminated glass is produced using a range of materials as the insert, such as metal meshes, tinted films, digitally printed images and fabrics. The decorative laminates use EVA (ethylene vinyl acetate) laminating technology and the final product can also be produced as a toughened laminate. These laminates are designed for interior use only.

Decorative laminated glass can be manufactured with a variety of glass types forming the two leafs of the panel allowing for clear, etched, back painted or mirror backed panels to be produced. Panels can be produced to shapes from either CAD drawings or rigid templates and can be processed with holes and cut outs subject to manufacturing tolerances.

Not all available options are available for general glazing applications, contact manufacturer for more information.

General information

Size

Uniclass 2015

Pr_25_71_33_46 Laminated glass sheetsPrimary

CAWS

H13/115 Structural glass assembly

K13/160 Proprietary

L20/280 Doors

L20/460 Frameless glass doors

L30/50 Purpose-made balustrades

Show more
Specification data - Laminated glass sheets

Product Reference

Decorative Laminated Glass

Size

100–1600 x 100–2900 mm. Subject to interlayer widths - larger panels may be possible - contact manufacturer details.

Processing

Annealed

Toughened

Standard.

Face

-

FaceType

Etched

Float

Slight green hue.

Low iron

Standard.

Thickness

4 mm

10 kg/m².

6 mm

15 kg/m².

8 mm

20 kg/m².

10 mm

25 kg/m².

12 mm

30 kg/m².

15 mm

37.5 kg/m².

19 mm

47.5 kg/m².

Backing

-

Type

Float

Slight green hue.

Low iron

Standard.

Painted

Inset requirements.

Antique Mirror, Murano

6 mm thickness.

Antique Mirror, Venetian

6 mm thickness.

Low Iron Silver Mirror

6 mm thickness.

Tinted Mirror, Blue

6 mm thickness.

Tinted Mirror, Bronze

6 mm thickness.

Tinted Mirror, Green

6 mm thickness.

Tinted Mirror, Grey

6 mm thickness.

Tinted Mirror, Pink

6 mm thickness.

Thickness

4 mm

10 kg/m².

6 mm

15 kg/m².

8 mm

20 kg/m².

10 mm

25 kg/m².

12 mm

30 kg/m².

15 mm

37.5 kg/m².

19 mm

47.5 kg/m².

Interlayer

Insert requirements.

Standard product features

Edges:

Polished.

Product Options

Face and backing:

  • Laminates can be created with a combination of the float and low iron thicknesses subject to manufacturing tolerances and intended use.
  • Laminates can also be created with a mirror backing subject to manufacturing tolerances and intended use.
