Name: DecoMesh RB35 - Nexus layouts - Suspended Ceiling System, Mesh Infills
Brand: Zentia
SKU: 3PbV3AvUChtAk5LDBjAn84

Color

Black

White

Grey

Finish

Powder-coated

Material

Steel

Aluminium

Shape

Square

Rectangle

Length

600 mm

Guidance for specification option:

Ceiling tiles.

1200 mm

Guidance for specification option:

Ceiling tiles.

Bespoke

Guidance for specification option:

Overall system.

Width

600 mm

Guidance for specification option:

Ceiling tiles.

Bespoke

Guidance for specification option:

Overall system.

Height

3 mm

Guidance for specification option:

Infill (mesh) height.

Bespoke

Guidance for specification option:

Overall system.

Warranty description

30 year

Guidance for specification option:

System guarantee.

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

Classification data

System performance

Guidance for specification option:

Insert requirements.

Ceiling support

Gridline 24 butt cut and joggled, Global White.

Guidance for specification option:

Comprises:

BPGMR243600 Gridline 24 Peak form Main Runner slotted 3600 x 24 x 43 mm (72 linear m/ 20 pieces);
BPGXTB24600 Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTB241200 Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces);
BPGXTJ24600 Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTJ241200 Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces).

Gridline 24 butt cut and joggled, Black.

Guidance for specification option:

Comprises:

BPGMR243600BK Gridline 24 Peak form Main Runner slotted 600 x 24 x 43 mm (72 linear m/ 20 pieces);
BPGXTB24600BKA Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTB241200BKA Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces);
BPGXTJ24600BK Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTJ241200BK Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces).

Manufacturer guidance

Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required.

Baked polyester paint finish.

Butt cut colour option also available on request; consult manufacturer for details.

Support fasteners

Guidance for specification option:

Insert requirements to suit substrate.

Ceiling units

1200 x 600 and 600 x 600 mm board edge 3 mm-thick mesh infills.

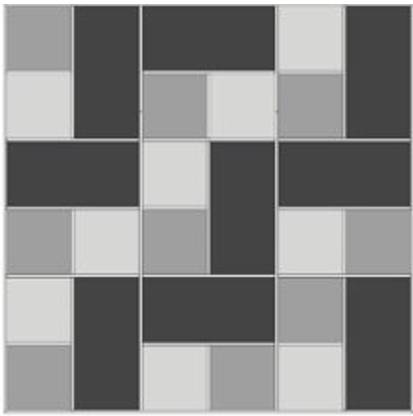

Mixture of white (RAL 9003), aluminium (RAL 9006) and black (RAL 9005) in prescribed pattern.

Guidance for specification option:

Combination of tiles:

600 x 600 mm in white (BPMRB35B66WHA), aluminium (BPMRB35B66AL) and black (BPMRB35B66BK);
1200 x 600 mm in white (BPMRB35B126WHA), aluminium (BPMRB35B126AL) and black (BPMRB35B126BK);

System accessories

Hold down clips (BPCHDC).

Single tee adaptor clip (BPSTAC).

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements (including suspension grid accessories).

None.

Mesh size

Long diagonal, 28 mm; short diagonal, 10 mm; open area: 58%.

VOC

A+.

Manufacturer guidance

VOC emission performance.

Weight

Infill mesh: 4.8 kg/m².

Reaction to fire

To EN 13501-1, mesh: Euroclass A2-s1, d0.

Design

ARRAY.

Manufacturer guidance

Consult manufacturer for details.

Contains Red List materials

Country of material origin

Europe

Country of product manufacture

Europe

Material

Steel

Aluminium

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage

Normalised unit (kg CO₂ eq/kg)

Declared unit (kg CO₂ eq/m²)

Stage:A1–A3 ('Production stage')

Normalised unit :

Declared unit : 5.26

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

44 %

Guidance for specification option:

Infill units.
