DDA 100 Bollard
Description

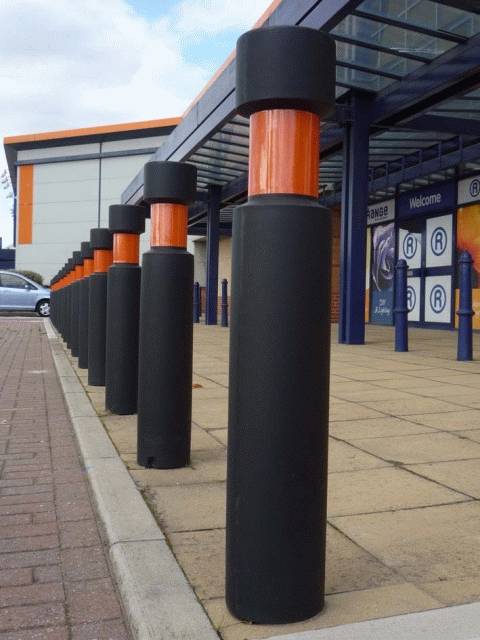

The EB range of bollards is the preferred bollard on many retail parks. The attractive and practical fixed bollards have a high strength galvanized steel core and rugged, self coloured casing sleeve, made from medium density polyethylene MDPE. If the sleeve is damaged it can be easily replaced without any of the associated costly ground works. Available ragged cast-in, flanged for bolting down or removable.

Features:

  • Sleeve has a durable textured finish, is UV stable and weather resistant.
  • Standard colour is black. Other colours to order.
  • Self adhesive reflective bands available as extra.
  • MDPE is an easily recyclable material.
  • Includes 150 mm reflective band.
  • Galvanized steel core is 1220 mm long overall.
  • Ragged version 400 mm below ground.
  • 114 mm diameter.
  • 3.25 mm wall thickness.
  • Ram-raid deterrent by filling steel core with concrete on site.

General information

Features

Sleeve has a durable textured finish, is UV stable and weather resistant

Standard colour is black. Other colours to order

Self adhesive reflective bands available as extra

MDPE is an easily recyclable material

Includes 150 mm reflective band

Galvanized steel core is 1220 mm long overall

Ragged version 400 mm below ground

114 mm diameter

3.25 mm wall thickness

Ram-raid deterrent by filling steel core with concrete on site

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/196 Removable bollards

Q50/30 Street furniture

Specification data - Carbon steel bollards

Product Reference

138108102

DDA 100 Bollard, fixed flanged.

138108100

DDA 100 Bollard, fixed ragged.

138108320

DDA 100 Bollard, removable.

Reflector tape

-

Colour

Insert requirements.

Standard product features

Height/ Depth:

Fixed:

  • 1000/ 400 mm.

Removable:

  • 1000/ 127 mm.

Diameter (maximum):

180 mm.

Gross weight (with core):

  • Fixed: 13.5 kg.
  • Removable: 22.5 kg.

Product Options

Colour/ Finish:

Steel core is galvanized finish, sleeve is MDPE black as standard, other colour options available depending on quantity.
