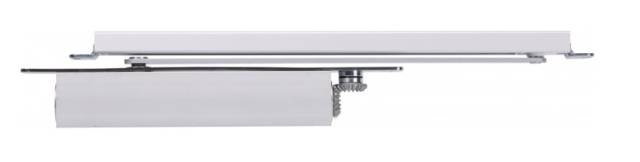

DC860 Door Closer
Description

Features:

  • The G893 standard concealed slide arm is available with mechanical hold open device and opening damper to prevent wall damage.
  • CE marked in compliance to BS EN 1154.
  • Suitable for fire and smoke protection doors.
  • For single action doors up to 1250 mm wide.
  • Supplied as standard with closer body, for use with G892 small or G893 standard concealed arms and fixing plate 812775.
  • ABS satin silver cover finish.
  • Adjustable spring power from CEN grades 1-5.
  • Available with 4 and 8 mm spindle extensions.
  • Backcheck as standard.
  • Supplied with integrated concealed mounting plate.
  • Adjustable arm height (14 mm, maximum) for ease of installation.
  • Suitable for 45 mm thick left and right hand doors.

Benefits:

  • Easier door opening and improved accessibility due to CAM motion technology.
  • Concealed facility offers preferable aesthetic advantages.
  • Extensive range of uses for fire doors and standard doors.
  • Modern and compact design.
  • Modular design allowing change of closer without changing the mounting plate.
  • Quick and easy install and quick and easy adjustable arms.
  • Reduced closer torque means a door easier to open and close.
  • Back check facility offers greater protection to walls and recesses.
  • Closing speed: Variable 0–120°.
  • Latching speed: Variable 0–7°.
  • Backcheck: Fixed about 80°.

Advantages:

  • Extensive range of uses: Fire and smoke protection doors as well as standard doors.
  • Concealed door closer and guide rail with only the arm visible.
  • Fulfils barrier-free building requirements (Equality Act).
  • Possibility to use with concealed fire door closing system.

Additional information for this product is available from:

http://www.assaabloy.co.uk/en/local/uk/Products/Door-closers/AA-DC/Concealed/

General information

Features

The G893 standard concealed slide arm is available with mechanical hold open device and opening damper to prevent wall damage

CE marked in compliance to BS EN 1154

Suitable for fire and smoke protection doors

For single action doors up to 1250 mm wide

Supplied as standard with closer body, for use with G892 small or G893 standard concealed arms and fixing plate 812775

Show more

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Specification data - Controlled door closers

Product Reference

DC860 Door Closer

Colour/ Finish

Silver

Standard, custom finishes available upon request.

Accessories

None

Fixing plate 812775

Mechanical hold open device A152

Not for fire and smoke protection doors.

Mechanical opening damper A153

Small concealed guide rail DC892

Standard concealed guide rail DC893

Standard product features

Size (l x h x d):

290 x 51 x 40 mm.

Weight:

2.3 kg.
