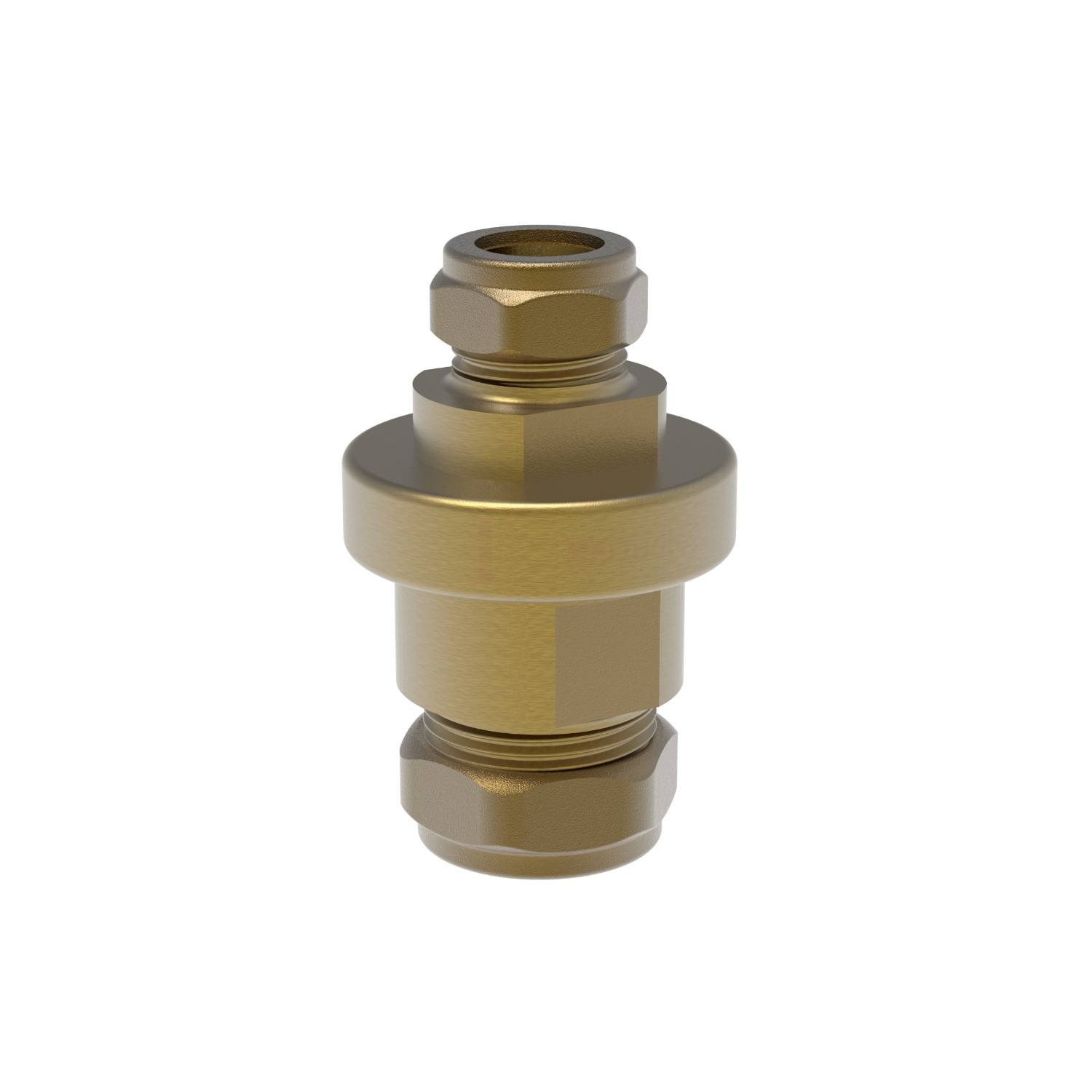

DC Pipe Interrupter
Verified by manufacturer 4 months ago
DC Pipe Interrupter for use with urinals and direct flush urinal sensors. Prevents bacteria contaminating mains water supply.
Application
For use with direct flush urinal systems in order to provide fluid category 5 backflow protection.
Description
DC Pipe Interrupter Category 5 backflow prevention device.
Features and benefits:
- Water regulations specify the use of a fluid category 5 backflow protection device within all direct flush urinal systems.
- Factory fitted with an interchangeable 3 L/minute flow regulator.
- Configurable; supplied with 4 L/minute and 5 L/minute.
- Regulators for use in higher flow rate installations.
- 15 mm inlet; 22 mm outlet.
- Prevents bacteria contaminating mains water supply.
- For use with urinals and direct flush urinal sensors.
- Stock Item, available for next working day dispatch.
General information
Color | Bronze |
Finish | Brass |
Material | Brass |
Shape | Other |
Length | 60 mm |
Width | 47 mm |
Height | 60 mm |
Warranty description | One year |
Uniclass | |
CAWS | S14/325 Backflow prevention devices S90/630 Double-check valve assemblies S92/315 Backflow prevention check valves |
Specification data - Backflow prevention check valves
Family and type | Double-check valve. |
Nominal size | DN 47. |
Flowrate | 3–5 L/minute. Guidance for specification option: Factory fitted with 3 L/minute flow regulator. Configurable; supplied with 4 L p/m and 5 L p/m regulators for use in higher flow rate installations. |
Fluid suitability | Category 5. |
InletConnectionSize | 15 mm. |
OutletConnectionSize | 22 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
