DBL250-DBL275 Dolphin Electronic Taps
Verified by manufacturer 3 months ago
DBL250 C
DBL250 C

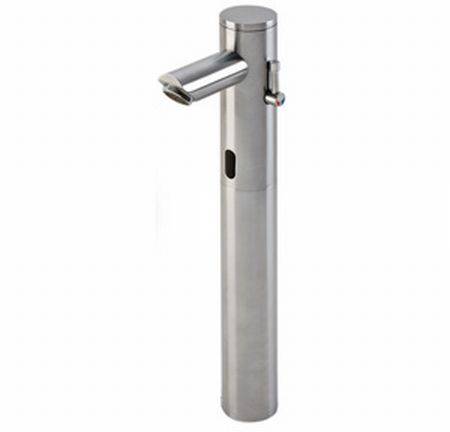

A touch free, counter top mounting, electronic taps.
Application
Suitable for washroom application.
Description
A touch free, electronic taps finished in chrome or stainless steel, designed for counter top mounting.
Features and benefits:
- Taps are activated by electronic infrared proximity sensors.
- Plug-in 9 V transformer or 9 V battery (features low battery charge warning) power source.
- Tap settings can be adjusted manually or by remote control (Dolphin DB 50).
- Kit includes filters, fixing bolts, installation instructions and power source.
General information
Color | Silver |
Finish | Satin Chrome |
Material | Brass Stainless steel |
Shape | Other |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Standards | BREEAM. |
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 3.8 L/min. |
Water supply temperature (maximum) | 70ºC. |
Integral accessories | Dolphin DB 50 remote control.Electronic infrared proximity sensors.Kit includes filters, fixing bolts, installation instructions and power source. |
Height | 338 mm. |
Diameter | 44 mm. |
Projection | 104 mm. |
Thickness | Manufacturer guidance2–27 mm, specifier to detail. |
PowerSource | 9 V battery (PP3). |
Operating pressure (maximum) | Manufacturer guidance1.0–8.0 bar (14.5–116 PSI), specifier to detail. |
Water supply fittings | 3/8" BSP. Manufacturer guidanceWater supply connection. |
Water supply | Hot and cold supply featuring temperature adjustment lever. |
