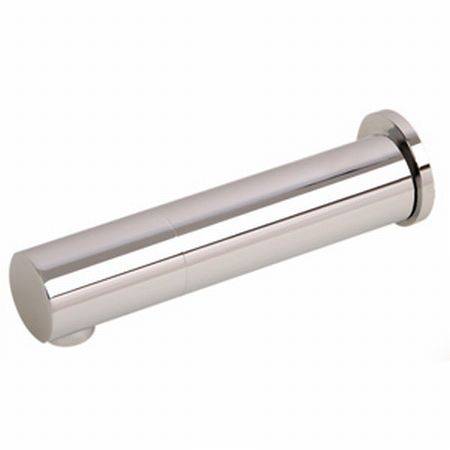

DB450-DB475 Dolphin Panel Mounted Infrared Tap with Temperature Adjustment Lever
Verified by manufacturer 3 months ago
DB450 C Dolphin Electronic Taps
DB450 C Dolphin Electronic Taps
A touch free, panel mounted, electronic taps.
Application
Suitable for washroom application.
Description
A touch free, panel mounted, electronic taps.
Features and benefits:
- Finished in chrome or satin stainless steel.
- Taps are activated by electronic infrared proximity sensors.
- Manual operated shut-off valve and solenoid concealed in recessed control box.
- Tap settings can be adjusted manually or by Dolphin DB 50 remote control.
- Kit includes filters, fixing bolts, installation instructions and power source.
- Suitable for use with Dolphin Blue DB 60 mixer valve.
- WRAS approved product.
General information
Color | Silver Manufacturer guidanceConsult manufacturer for details. |
Finish | Satin Guidance for specification option: Stainless steel. Brushed |
Material | Brass Stainless steel |
Shape | Other |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Automatic action thermostatic mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Water supply temperature (maximum) | 70°C. |
Integral accessories | Dolphin DB 50 remote control.Dolphin DB 60 mixer valve. |
Thickness | Manufacturer guidance10–30 mm, specifier to detail. |
PowerSource | 6 x AA batteries. |
Dimensions | Manufacturer guidancePanel hole: 23–40 mm, specifier to detail. |
Water supply | Single inlet cold or premixed. |
Installation | Panel mounted, concealed duct fixing. |
Operating pressure (maximum) | Manufacturer guidance1.0–8.0 bar (14.5–116 PSI), specifier to detail. |
