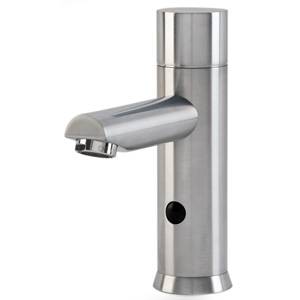

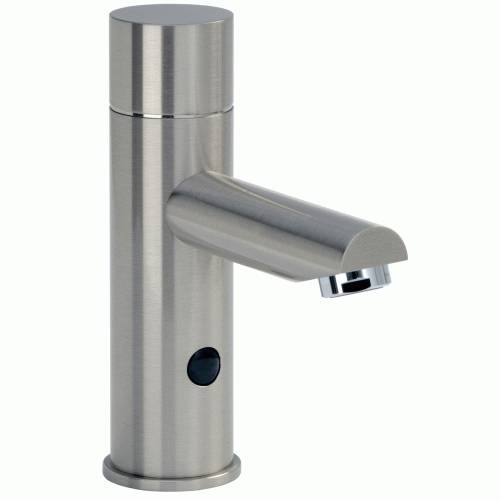

DB125 Dolphin Blue Electronic Infrared Taps
Verified by manufacturer 3 months ago
DB100 C
DB100 C
Touch-free, counter top mounted electronic taps.
Application
- Suitable for washroom application.
- Suitable for use with Dolphin DB60 mixer valve.
Description
Touch-free, counter top mounted electronic taps.
Features and benefits:
- Neopearl aerator.
- Taps are activated by electronic infrared proximity sensors.
- Plug-in 9 V transformer or 9 V battery power source, features low battery charge warning.
- Tap settings can be adjusted manually or by Dolphin DB50 remote control.
- Kit includes filters, fixing bolts, installation instructions and power source.
General information
Color | Silver |
Finish | Chrome |
Material | Brass Stainless steel |
Shape | Other |
Length | 135 mm |
Width | 44 mm |
Height | 172 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Approvals | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Countertop mounted. |
Materials | |
Body | Brass. |
Finish and colour | Chrome. |
Water supply temperature (maximum) | 70°C. |
Integral accessories | Dolphin Blue DB60, mixer valve.Dolphin Blue DB51, remote control. |
PowerSource | 9 V battery (PP3). |
Dimensions | 135 x 44 x 172 mm. |
Water supply | Single inlet, cold or pre-mixed. |
Water supply fittings | 3/8" BSP. Manufacturer guidanceWater supply connector. |
Operating pressure (maximum) | 1.0–8.0 bar (14.5–116 PSI). |
InnerDiameter | Manufacturer guidanceCounter hole: 28–34 mm, specifier to detail. |
Thickness | Manufacturer guidance2–27 mm (minimum/ maximum), specifier to detail. |
Sustainability data
Material | Brass Stainless steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
