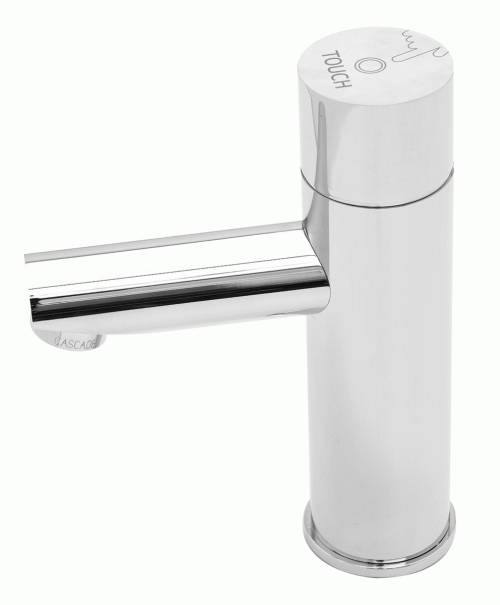

DB 100T-DB 125T Dolphin Blue Electronic Touch Taps
Description

Features:

  • Electronic touch tap – tap is activated when the user touches the designated area.
  • Extra cost savings by providing additional water conservation.
  • Water supply: Single inlet – cold or pre-mixed water supply.
  • 3/8" BSP water supply connector.
  • Power Source: Plug-in 9 V transformers (supplied), or 9 V battery (features low battery warning).
  • Superior quality chrome plated brass or stainless steel.
  • Tap settings can – full instructions provided.
  • Filters, fixing bolts, installation instructions and power source supplied with each tap.
  • Two year manufacturer’s warranty.
  • State of the art electronic Piezo technology.
  • Max water temperature 70 ºC.
  • Operating pressure 0.5–8.0 bar (7–116 PSI).
  • Neopearl aerator.

General information
Features

Electronic touch tap – tap is activated when the user touches the designated area

Extra cost savings by providing additional water conservation

Water supply: Single inlet – cold or pre-mixed water supply

3/8" BSP water supply connector

Power Source: Plug-in 9 V transformers (supplied), or 9 V battery (features low battery warning)

Superior quality chrome plated brass or stainless steel

Tap settings can – full instructions provided

Filters, fixing bolts, installation instructions and power source supplied with each tap

Two year manufacturer’s warranty

State of the art electronic Piezo technology

Max water temperature 70 ºC

Operating pressure 0.5–8.0 bar (7–116 PSI)

Neopearl aerator

Finish

Chrome

Uniclass 2015
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Washbasin thermostatic water supply sets
Product Reference

DB 100T

Power source: 9 V battery.

DB 125T

Power source: 9 V transformer.

Standard product features

Finish:

Chrome.

Product Options

Worktop:

  • Hole diameter required: 28–34 mm.
  • Thickness (min/ max): 2–27 mm.
