NBS Source
Compare variants

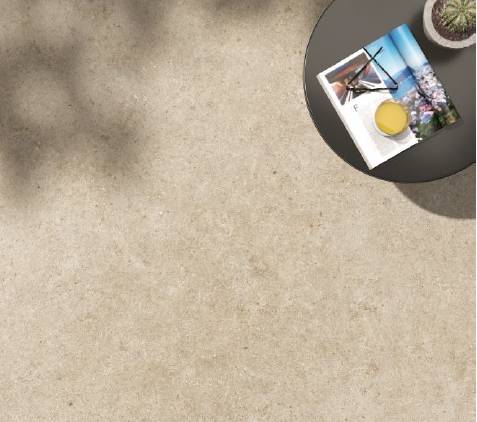

Dawson Stone - Stone Effect Tile

Porcelain: 1200 x 2780 mm, 6 mm thick

PARKSIDE Variant:

Stone effect tile.

Jump to:
07761 554620 Website

Application

Interior and exterior wall and floor applications dependent on size.

Description

A collection of porcelain floor and wall tiles offering a modern stone effect tile. With large slabs, 20 mm options, decors, mosaics and special pieces, the Dawson range can be used in any space.


Features and benefits:

  • Neutral tones.
  • Ten colours: White, Pearl, Grey, Smoke, Tarmac, Ivory, Cream, Clay, Taupe and Tobacco.
  • Three finishes available.
  • Five different sizes.
  • 24 special pieces.
  • Options for use both internally and externally.


Standards:

  • Length & Width - Standard: ISO 10545-2; Requirement: ±0.6% ~ ±2mm; Established Value: Conforms.
  • Thickness - Standard: ISO 10545-2; Requirement: ±5% ~ ±0.5mm; Established Value: Conforms.
  • Straightness - Standard: ISO 10545-2; Requirement: ±0.5% ~ ±1.5mm; Established Value: Conforms.
  • Flatness - Standard: ISO 10545-2; Requirement: ±0.5% ~ ±2.0mm; Established Value: Conforms.
  • Rectangularity - Standard: ISO 10545-2; Requirement: 2 ±0.5% ~ ±2.0mm; Established Value: Conforms.
  • Resistance to high concentrations of alkalis and acids: GHA (standard - ISO 10545-13).
  • Resistance to low concentrations of alkalis and acids: NPD (standard - ISO 10545-13).

General information

Color

Black

Blue

Cream

Grey

Yellow

Show more

Finish

Matt

Grip

Textured

Material

Porcelain

Shape

Square

Rectangle

Hexagon

Mosaic.

Other

Shapes mosaic.

Length

1200 mm

600 mm

300 mm

Width

2780 mm

1200 mm

600 mm

Uniclass

Pr_35_93_96_19 Ceramic tilesPrimary

CAWS

M40/110 Tiling to

M40/120 Mosaic to

M40/5 Tiling to

M40/12 Mosaic to

Environmental information

Recycled content

30 %

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Literature

Dawson Stone - Concrete Effect Tiles

Dawson Stone - Concrete Effect Tiles
