Daikin Altherma Low Capacity R32 Monobloc EB/DLA-EV3 (Sizes 4-6-8) - Heat pump

Name: Daikin Altherma Low Capacity R32 Monobloc EB/DLA-EV3 (Sizes 4-6-8) - Heat pump
Brand: Daikin Ltd
SKU: mGZrvbjJ2h27YecPfoVjEX

Verified by manufacturer 3 months ago

EBLA04E3V3

Daikin Ltd

Air-to-water low temperature monobloc system.

Jump to:

+44 (0)845 641 9000 Website

Application

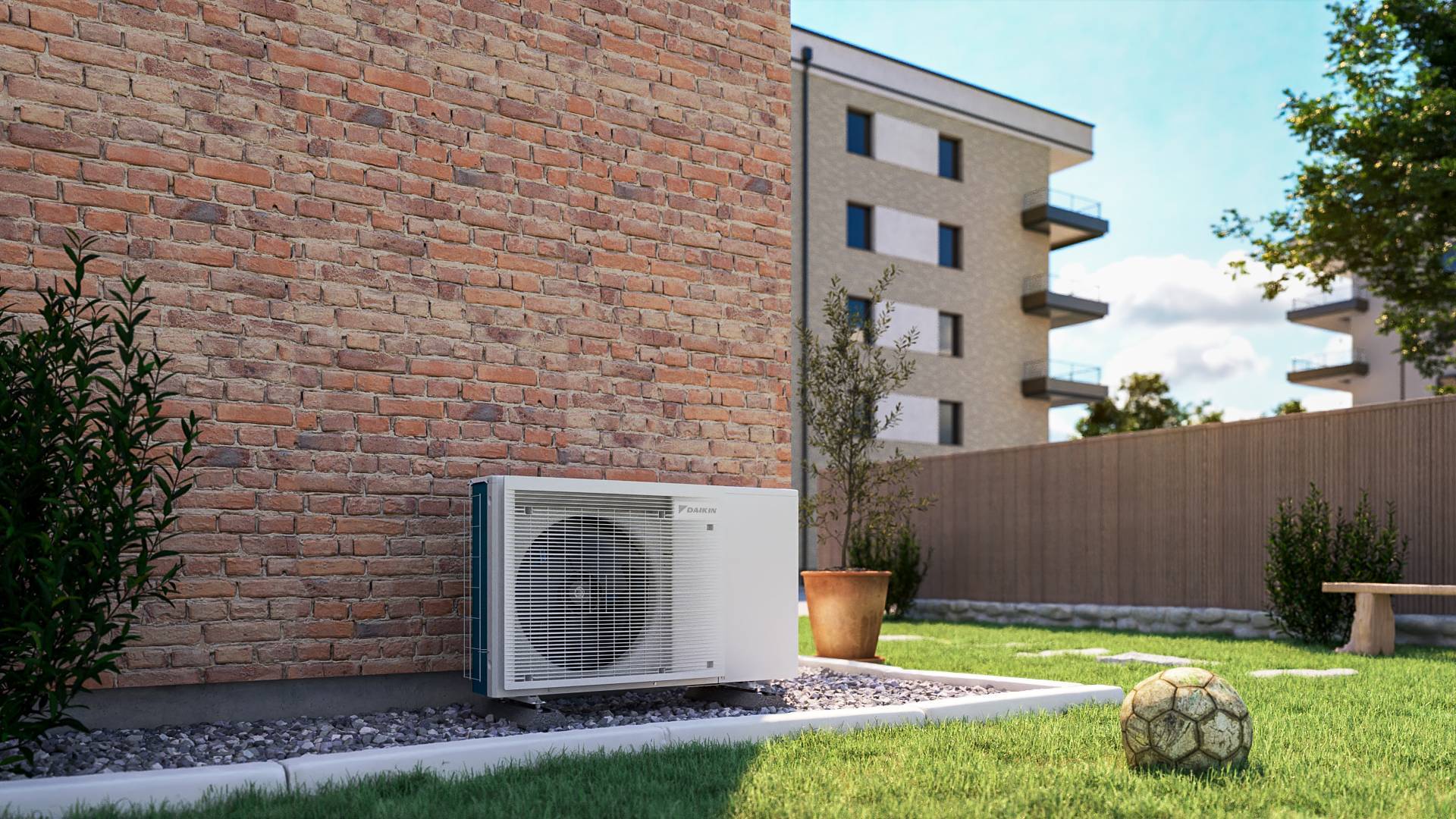

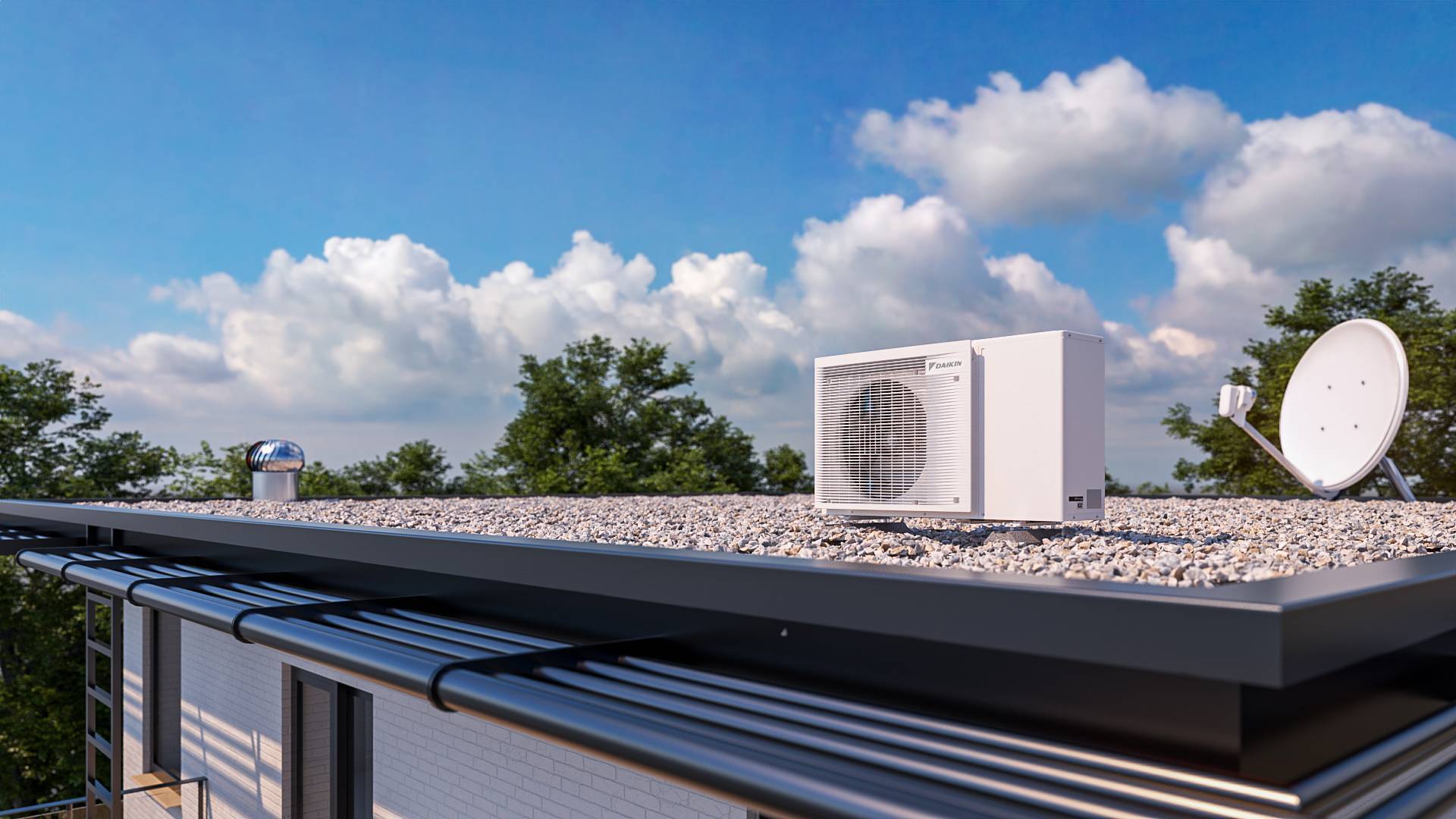

Suitable for external applications where indoor space is limited.

Description

An outdoor single unit air-to-water monobloc system.

Features and benefits:

Monobloc all-in-one concept including hydraulic parts.
W-LAN cartridge included.
Possible to combine with domestic hot water.
Controllable environment from any location via smartphone or tablet through the Onecta app.

For full technical information, refer to manufacturer's literature.

EBLA(04/06/08)E3V3 and EBLA(04/06/08)EV3:

Reversible air-to-water systems.
Energy efficient heating and cooling system based on air to water heat pump technology.
Optional separate back-up heater.

EDLA(04/06/08)E3V3 and EDLA(04/06/08)EV3:

Heating only air-to-water system.
Energy efficient heating only system based on air to water heat pump technology.
Optional separate electric back-up heater as additional heating during extremely cold outdoor temperatures.

General information

Color	White Guidance for specification option: Ivory white. Ivory
Finish	Coated Guidance for specification option: Zinc coated.
Material	Carbon steel Guidance for specification option: Zinc coated low carbon steel.
Shape	Rectangle
Length	362 mm
Width	1250 mm
Height	770 mm
Warranty description	Five year

Uniclass	Pr_70_60_37_04 Air-to-water heat pumpsPrimary
CAWS	T90/505 Air-to-water heat pumps T90/505 Air-to-water heat pumps

Specification data - Air-to-water heat pumps

Standards	-
Test requirements	To BS EN 14511.
Heat pump type	Monobloc.
Mode	Heating and cooling.
Coefficient of performance (minimum)	To BS EN 14511, 5.10 (condition 1); 3.65 (condition 2). Guidance for specification option: Condition 1: cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C).
Output	-
Heating	4.30 kW (condition 1); 4.60 kW (condition 2). Guidance for specification option: Condition 1: cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ).
Cooling	4.86 kW (condition 1); 4.52 kW (condition 2). Guidance for specification option: Condition 1: cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C). Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ).
Fan	-
Type	Propeller. Guidance for specification option: Fan mortar - 77 W output.
Configuration	Horizontal.
Electrical supply type	Three phase. Guidance for specification option: 220 V.
Compressor	-
Type	Swing.
Sealing	Hermetically sealed.
Drive	Inverter driven.
Accessories	Back up heater kit. Not required.
Refrigerant	R32. Guidance for specification option: GWP: 675.0. Charge: 1.35 kg. Control: Expansion valve. Refrigerant oil type: FW68DA.

Dimensions	770 x 1250 x 362 mm. Manufacturer guidance Unit height x width x depth.
Unit weight	91 kg.
Sound	Sound power level, 58.0 dBA (heating), 60.0 dBA (cooling); sound pressure level, 44.0 dBA (heating), 48.0 dBA (cooling).
CapacityControl	Inverter controlled.
Safety devices	High pressure switch.
PipeConnection	G 1" (male).
Air flow	2280 m³/h. Manufacturer guidance Rated airflow (outdoor).
HeatingWaterFlowRate	12.3 L/min.
CoolingWaterFlowRate	13.9 L/min.
Material	Zinc coated low carbon steel. Manufacturer guidance Casing material.
Casing colour	Ivory white.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe

Literature

Daikin Altherma Low Capacity R32 Monobloc EB/DLA-EV3 (Sizes 4-6-8)
