Daco-KSO Self-Adhesive Cap Sheet

Application

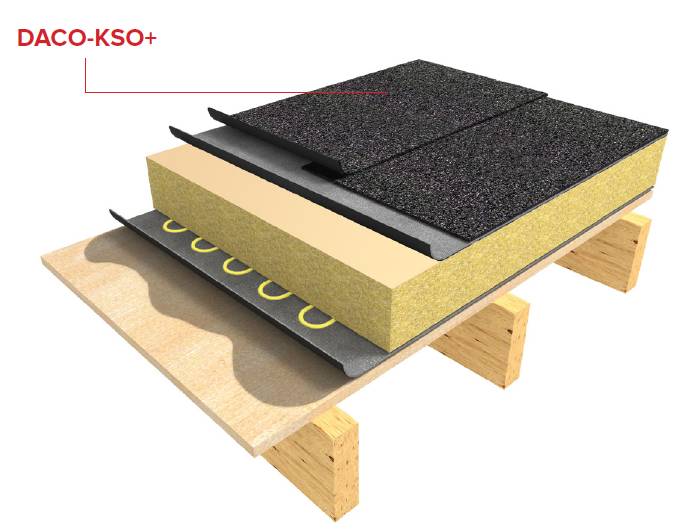

Designed for use as a premium cap sheet (top layer) and suitable for use within cold-applied roofing systems.

The product is typically used within TECHNONICOL’s self-adhesive or torch-safe specifications and is compatible with DACO-KSU+ self-adhesive underlay membrane.

Description

A cold-applied, self-adhesive bituminous cap sheet which is saturated and coated with high quality SBS (Styrene-Butadiene-Styrene) modified bitumen.

It has a strong 280 g/m² polyester/ glass composite reinforcement and features integrated ‘safe-seal’ lap technology, facilitating secure, safe and efficient sealing of side-laps.

The upper layer of the membrane is protected with slate mineral and the bottom layer is coated with self-adhesive compound, covered with removable film.

In addition, DACO-KSO+ incorporates a special graphite additive within the coating to provide exceptional fire protection properties, and has been fully fire tested as part of a designated system in accordance with EN 13501-5 and DD CEN/TS 1187:2012, Broof Test 4.


Features and benefits:

  • Flame free, self-adhesive application.
  • Excellent low temperature flexibility at -25°C.
  • 280 g/m² polyester/ glass composite reinforcement.
  • SBS modified bitumen.
  • Incorporates Börner graphite technology which actively prevents spread of flames on the roof.
  • Tested as part of a system to achieve Broof Test 4 fire classification as certified by Warringtonfire.
  • Integrated ‘Safe-Seal’ laps to enable homogenous, efficient sealing of side laps.
  • CE marked.


Technical characteristics:

  • Straightness (to DIN EN 1848-1): <20 mm/10m.
  • Resistance to thermal distortion (to DIN EN 1110): +100°C.


General information

Material

Bitumen

Size

7.5 x 1.08 m

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen roofing sheets Enhanced data

Thickness (minimum)

(to DIN EN 1849-1):

4.2 mm.

Weight (minimum)

5.2 kg/m².

Watertightness

 (to DIN EN 1928 Method B):

Passed.

Reaction to fire

(to DIN EN 11925-2):

Class E according to DIN EN 13501-1.

Tensile force property

 (to DIN EN 12311-1):

1400/ 1300 N/50mm (±15 %).

Tensile elongation property

(to DIN EN 12311-1):

20/ 25% (±3 abs).

Dimensional stability

(to DIN EN 1107-1):

0.18% (±0.09).

Flexibility at low temperature

(to DIN EN 1109):

≤-25°C.

Chemical resistance

Water-resistant.

Also resistant to watery solutions of salt, diluted non-oxidising acids and bases. Aliphatic and aromatic hydrocarbons, as well as chlorine hydrocarbons, oils and greases may loosen the product and should therefore be avoided.
