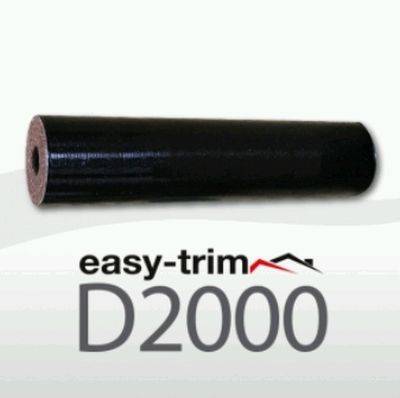

D2000 SBS Mineral

Description

An SBS polymer-modified bituminous membrane, designed for use as a capsheet on new built-up bituminous roofing systems or over existing finishes in refurbishment. It has a mineral finish on the upper surface, which provides protection against UV degradation, and a PE film backing.

Benefits:

  • Ideal for new and refurbishment projects.
  • Reduced installation time on SBS systems.
  • Energy savings from low heat application.

General information

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/400 Built-up reinforced bitumen waterproof covering

J41/405 Single layer reinforced bitumen waterproof covering

Specification data - Reinforced bitumen roofing sheets

Product Reference

D2000 SBS Mineral

Standard product features

Technical characteristics:

  • Visible defects (EN 1850 -1): Without defects.
  • Length (EN 1848-1): 8 m -1%.
  • Width (EN 1848-1): 1 m -1%.
  • Straightness (EN 1848-1): 20 mm/10 m.
  • Thickness (EN 1849-1): 4.6 mm.
  • Watertightness, A (EN 1928): 60 kPa.
  • External fire performance (EN 13501-5): F roof.
  • Reaction to fire (EN 13501-1): Class F.
  • Tensile strength (EN 12311-1): Longitudinal, 750 N/50 mm; Transverse, 550 N/50 mm.
  • Elongation at break EN (12311-1): Longitudinal, 40%; Transverse, 45%.
  • Resistance to tearing, nail shank (EN 12310-1): 160/160 N.
  • Dimensional stability (EN 1107-1 method A): ±0.3%
  • Flexibility at low temperature (EN 1109): -15ºC.
  • Flow resistance at elevated temperature (EN 1110): 90ºC.
  • Flexibility at low temperature after artificial ageing (EN 1296 and EN 1109): -5ºC.
  • Adhesion of granules (EN 12039): Maximum 30%.
