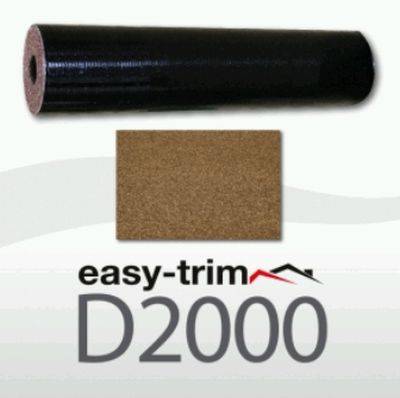

D2000 GF3 Sanded Underlay

Description

An SBS polymer-modified bituminous membrane for use as an underlay below a capsheet. It has a sanded upper face and a PE film backing.

Benefits:

  • Ideal for new and refurbishment projects.
  • Reduced installation time.
  • Superior bond strength.

General information

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/400 Built-up reinforced bitumen waterproof covering

Specification data - Reinforced bitumen roofing sheets

Product Reference

D200 GF3 Sanded Underlay

Standard product features

Technical characteristics:

  • Visible defects (EN 1850 -1): Without defects.
  • Length (EN 1848-1): 12 m -1%.
  • Width (EN 1848-1): 1 m -1%.
  • Straightness (EN 1848-1): 20 mm/10 m.
  • Mass (EN 1849-1): 3 kg/m ±10%.
  • Watertightness, A (EN 1928): 60 kPa.
  • External fire performance (EN 13501-5): F roof.
  • Reaction to fire (EN 13501-1): Class F.
  • Tensile strength (EN 12311-1): Longitudinal, 300 N/50 mm; Transverse, 200 N/50 mm.
  • Elongation at break EN (12311-1): Longitudinal, 2%; Transverse, 2%.
  • Resistance to tearing, nail shank (EN 12310-1): 70/70 N.
  • Flexibility at low temperature (EN 1109): -15ºC.
  • Flow resistance at elevated temperature (EN 1110): 90ºC.
