d line Two Point Fixing - Baluster fixing

Verified by manufacturer 2 months ago

Q-railing Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Fascia-mounted system with a smart procedure for levelling.

Jump to:
+44 (0)1782 711676 Website

Application

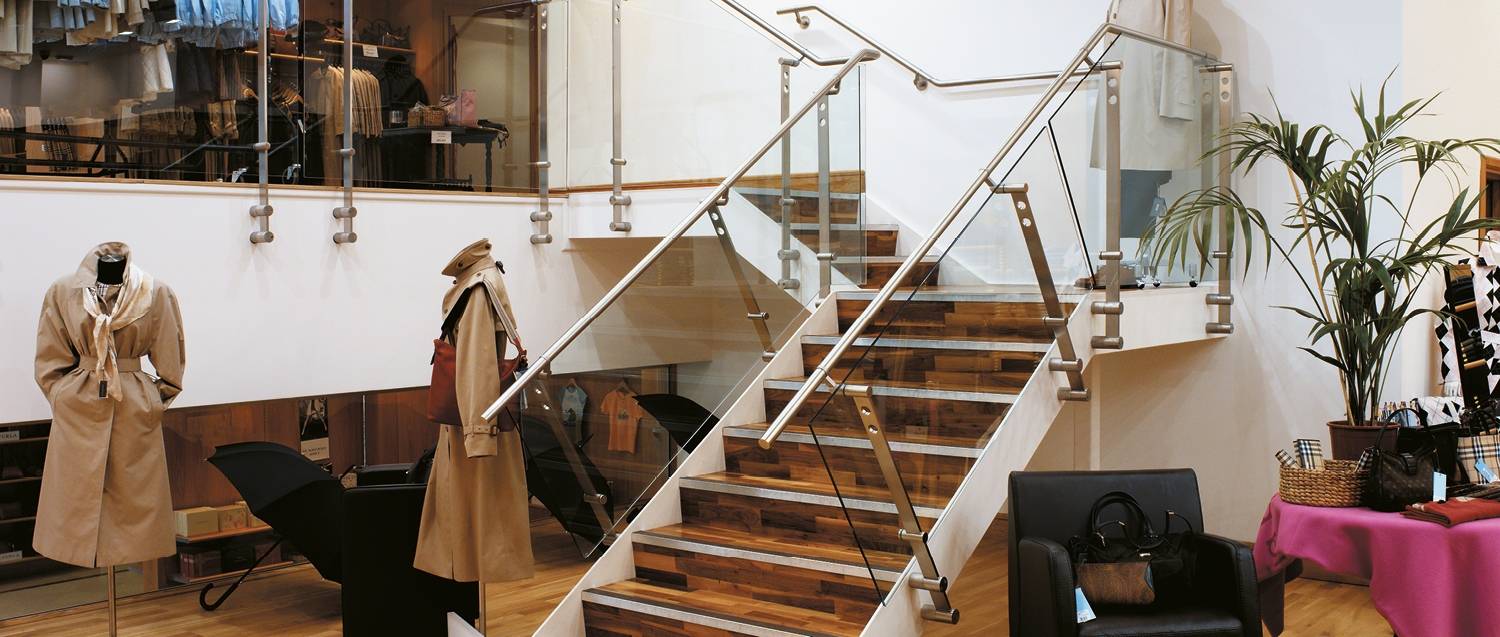

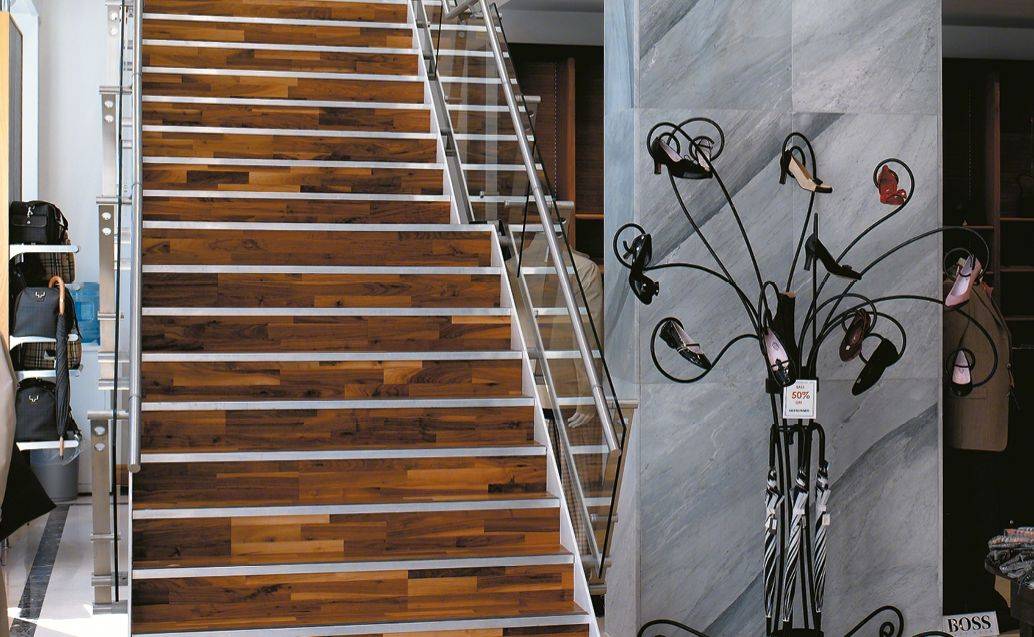

Suitable for heavy-duty indoor and outdoor use for stairs and balustrades.

Description

Fascia-mounted system with a smart procedure for levelling.


Features and benefits:

  • Easily levelled as spacers can be added behind the fixings.
  • The two fixing points visually echo the two holes at the top of the baluster posts.
  • No welding or on-site fabrication required.
  • Glass thickness: 10–25.52 mm.
  • Balusters available in 1200 and 1400 mm heights and as intermediate or end posts.
  • Low maintenance; does not readily corrode, rust or stain.
  • Modular connectors to eliminate the requirement for welding on site.
  • Horizontal, uniformly distributed line load; uniformly distributed load applied to infill; point load to infill testing is available.
  • Manufactured from external grade 1.4401 (316) stainless steel.

General information

Color

Silver

Stainless steel.

Material

Stainless steel

AISI 1.4401 (316).

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Uprights

Stainless steel AISI 1.4401 (316).

Intermediate and end posts, 1200 mm.

Height (above ground, to top of handrail): 1067 mm.

Intermediate and end posts, 1400 mm.

Height (above ground, to top of handrail): 1267 mm.

Intermediate posts only, 1200 mm.

Height (above ground, to top of handrail): 1067 mm.

Intermediate posts only, 1400 mm.

Height (above ground, to top of handrail): 1267 mm.

Infills

Glass, 10–25.25 mm thick.

Insert details of glass required, including type and thickness.

Rails

-

Handrails

Stainless steel AISI 1.4401 (316), d line.

Consult manufacturer for options and insert requirements.

Where additional handrails are required e.g. attached to walls, see Accessories.

Fixing to parent structure

Fascia-mounted only; insert requirements to suit substrate.

Minimum edge distance (vertical): 50 mm; consult manufacturer for details.

Accessories

Consult manufacture for full details.

None.

Bend 38 mm diameter for 45° 450 x 450 mm.

Tail end 32° 38 mm diameter.

Tail straight 38 mm diameter.

Additional handrails.

E.g. for mounting on wall(s) opposite stair panels. To match handrail as defined above unless specified otherwise.

Environmental information

Contains Red List materials

No

Recyclability

100%

Literature

Q-railing balustrades - architects brochure

Q-railing balustrades - architects brochure

Systems Brochure

Systems Brochure

Q-DESIGNS D LINE ARCHITECTS BROCHURE

Q-DESIGNS D LINE ARCHITECTS BROCHURE

Third party certifications

BSI Kitemark

BSI Kitemark

Certificate: KM 656489
