d line Blok Fixing

Application

Suitable for light to medium indoor and outdoor use for stairs and balustrades.

Description

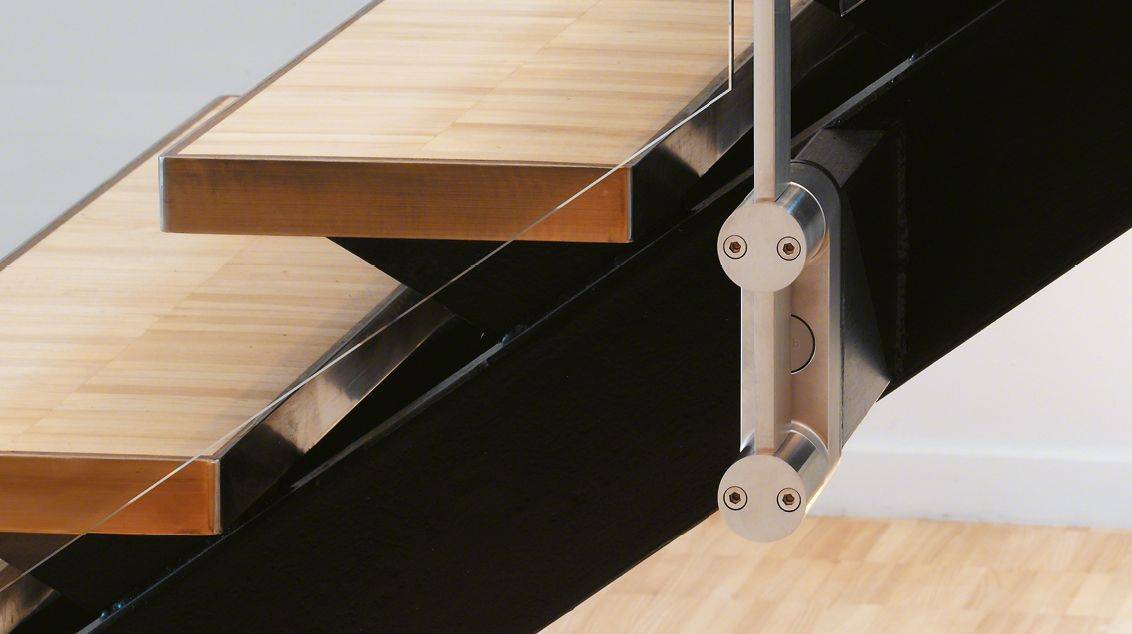

Baluster railing system with adjustable single anchor fixing.


Features and benefits:

  • Built-in level adjusters.
  • No welding or on-site fabrication required.
  • Supports glass infills of 10–25.52 mm thick.
  • Balusters available in 1200 and 1400 mm heights and as intermediate or end posts.
  • Elegant d line handrail.
  • Low maintenance; does not readily corrode, rust or stain.
  • Modular connectors to eliminate the requirement for welding on site.
  • Horizontal, uniformly distributed line load; uniformly distributed load applied to infill; point load to infill testing are available.
  • Manufactured from external grade 1.4401 (316) stainless steel.

General information

Color

Silver

Stainless steel.

Material

Stainless steel

AISI 1.4401 (316).

Glass

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems Enhanced data

Uprights

Stainless steel AISI 1.4401 (316).

Intermediate and end posts, 1200 mm.

Height (above ground, to top of handrail): 1092 mm.

Intermediate and end posts, 1400 mm.

Height (above ground, to top of handrail): 1292 mm.

Intermediate posts only, 1200 mm.

Height (above ground, to top of handrail): 1092 mm.

Intermediate posts only, 1400 mm.

Height (above ground, to top of handrail): 1292 mm.

Infills

Glass, 10–25.52 mm thick.

Insert glass type, height, width and thickness required.

Consult manufacturer's literature for maximum height/ width. Note that visible glass height (above floor) is determined by baluster height:

  • Baluster, 1200 mm => visible panel height: 1092 mm.
  • Baluster, 1400 mm => visible panel height: 1292 mm.

Rails

-

Handrails

Stainless steel AISI 1.4401 (316), d line.

Consult manufacturer for options and insert requirements.

Where additional handrails are required e.g. attached to walls, see Accessories.

Fixing to parent structure

Fascia-mounted only; insert requirements to suit substrate.

Edge distance (vertical): 95 mm; consult manufacturer for details.

Accessories

None.

Additional handrails.

E.g. for mounting on wall(s) opposite stair panels. To match handrail as defined above unless specified otherwise.

Other.

Consult manufacturer for options and insert requirements.
