Application

Suitable for use in various public locations and open spaces.

A solid level base is required for installation (e.g. concrete). Consult manufacturer for further details.

Description

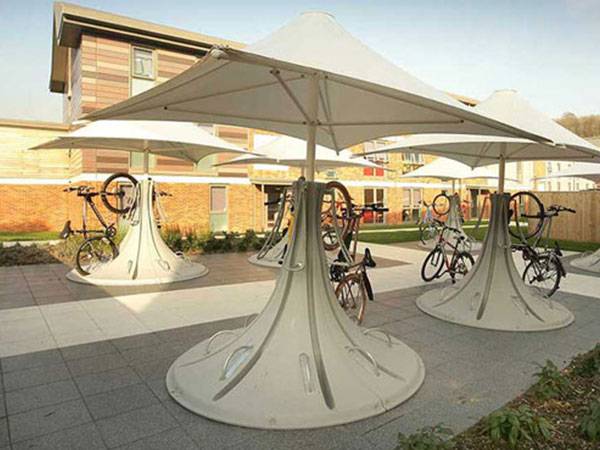

Canopy for use with Cyclepod, Spacepod and Minipod cycle parking racks.

Features and benefits:

  • Roof provides an anti-wicking, fungus and UV resistant, and fire retardant covering for the cycle parking area.

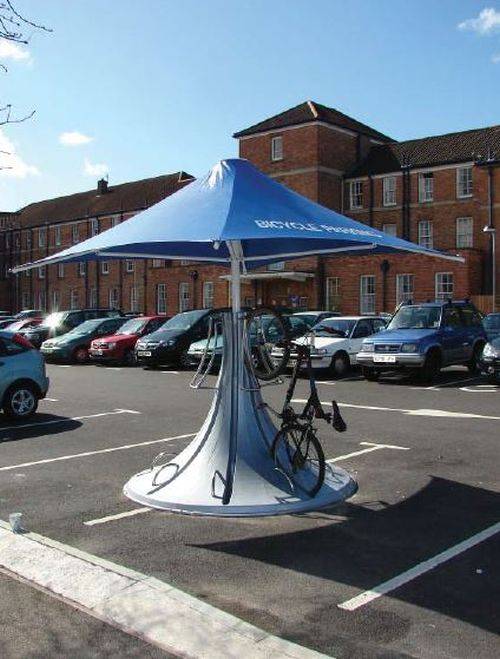

  • Various design possibilities are available, including the addition of advertising and sponsorship graphics.
  • For use in conjunction with other products from the Cyclepods range (specified separately - consult manufacturer for details).

Applications:

Suitable for use in various public locations and open spaces.

A solid level base is required for installation (e.g. concrete). Consult manufacturer for further details.

General information
Color

Black, white

Features

Space saving, secure, compatible, anti wicking, fungus resistance, anti UV, fire retardancy

Finish

White powder coated

Material

Steel, plastic

Size

3000 x 3000 mm

Uniclass 2015 Open sided shelters (Pr_20_65_78_58)
Specification data
Product Reference

Canopy

Roof

White coated

Special order

Consult manufacturer for details and insert colour requirements.

Graphics

Required

Advertising/ sponsorship can be incorporated into the roof. Consult manufacturer for details and insert requirements.

Not required

Standard product features

Material:

  • Supporting structure (including tubular framework, supporting pole and cross section): Galvanized steel, with white powder coated finish.
  • Roof: Polyvinylidene fluoride (PVDF)/ polyvinyl chloride (PVC) coated polyester 1100Dtex material. Compliant to NFPA 701, ASTM-E84 and CSFM standards.
  • Fixings: Stainless steel.
  • Ground anchors: Zinc plated.

Size:

3000 x 3000 mm.

Fixings:

  • 18 mm outer diameter shield anchor bolts are to be drilled to a depth of 100–150 mm maximum.
  • Eight fixing bolts required per canopy.

Weight:

70 kg.
