NBS Source
CXDE

Description

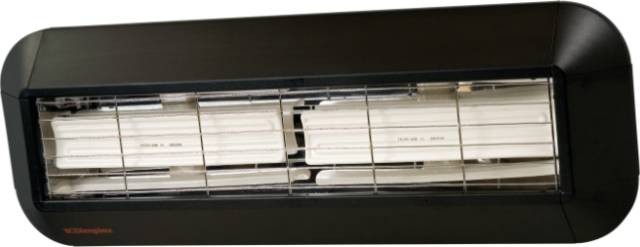

CXDE infrared heater features an electronic thermostat for temperature based lamp power-on. It also features a built-in seven-day timer which can be set up and activated via Bluetooth remote.

Features and benefits:

  • Seven-day timer and temperature control (programmed via Bluetooth remote).
  • Accurate electronic thermostat.
  • Energy saving Open Window Detection.
  • Available in a compact or wider throw.
  • Same size and fixings as older Dimplex CXD heaters.
  • Complies with Lot 20 of ERP Directive.
  • CE marked and BEAB approved.

Two-year warranty.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

CXDE

Type

CXD2000HE

Horizontal model. 735 x 255 x 248 mm (w x h x d).

CXD2000VE

Vertical model. 442 x 380 x 121 mm (w x h x d).

Standard product features

Colour/ Finish:

Epoxy-polyester powder coated steel finished in Matte Black.

Technical characteristics:

  • Weight: 5.2 kg.
  • Output: 2 kW.
  • Construction: Durable steel casing with chrome plated grille.
  • Controls: Digitally controlled, accurate electronic thermostat. Manual, runback, off.
  • Controller UI: Off-board control only. Button to initiate controls via Bluetooth remote.
  • Element: Two ceramic no-glow radiant elements.
  • Ingress protection (IP) rating: IPX4.
  • Safety: No cut-out on-board. Protection via RCD.
  • Supply: Minimum 1 mm three core for fused spur installation. 230–240 V, 50 Hz Class I with earth wire.
  • Installation: Supplied with wall mounting bracket.

Literature

4. Dimplex Product Catalogue

4. Dimplex Product Catalogue
