Curv Ceiling Tile - Infrared Heating Panel

Verified by manufacturer 12 days ago

CCT6060

Cürv360 Variant:

Solid-state element heating panel installed within ceilings.

Jump to:
BOS
+44 0800 061 2145 Website

Application

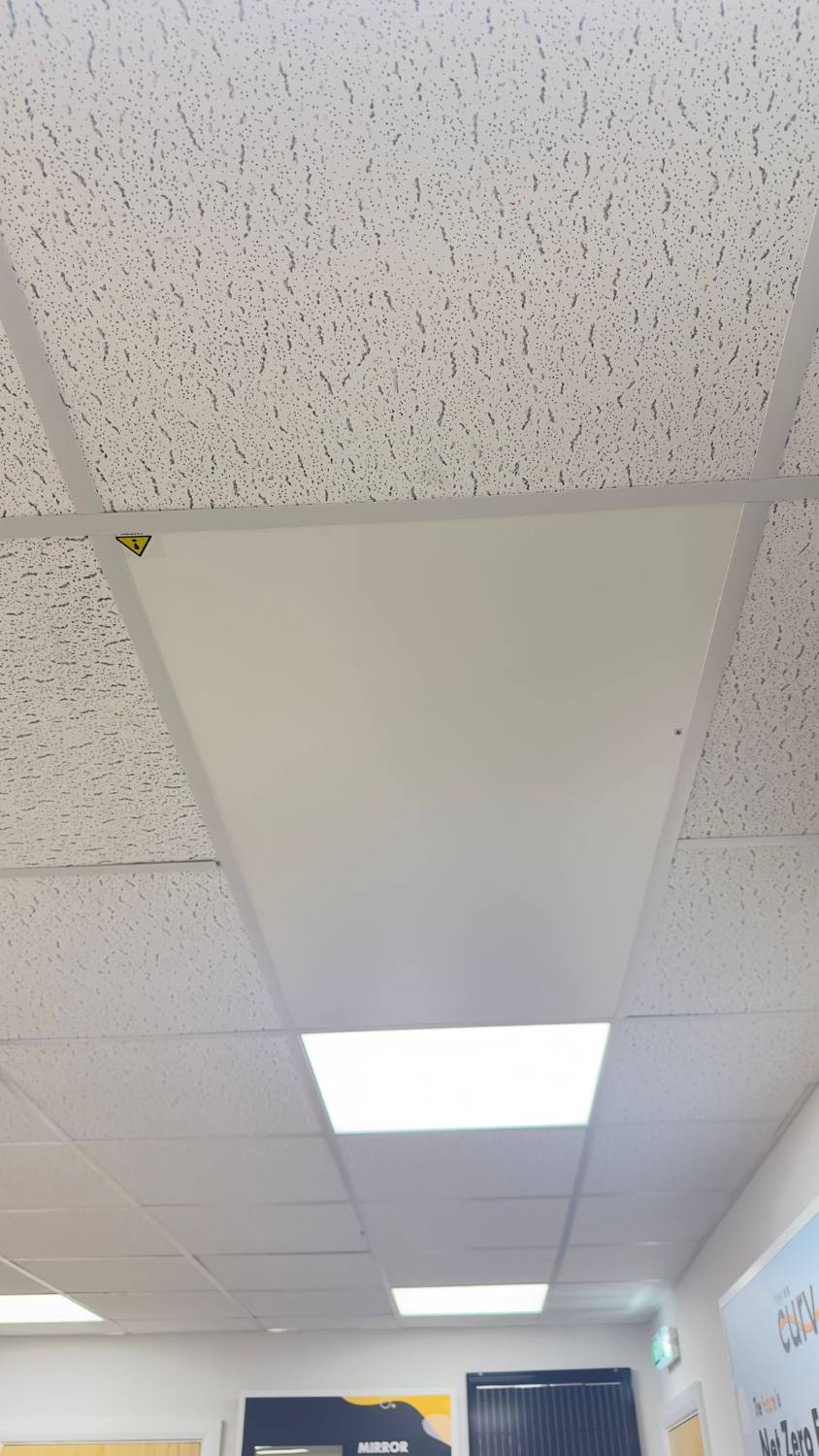

Suspended ceiling installation.

The Cürv ceiling tiles do not have any in-built controls and must be used in conjunction with the Cürv CRS2500 wireless thermostat or equivalent. This will also ensure full compliance with European energy saving regulation (ERP Lot 20).

Description

Infrared Heating uses electricity to heat surfaces, objects, and people, not the air around them. This is a more natural, and efficient way of heating spaces. Heat is not wasted through draughts but instead, it keeps a steadier thermal mass.


Heating panel ceiling tile, available in two sizes (595 x 595 mm and 1195 x 595 mm).


Features and benefits:

  • Lightweight: Discrete panels.
  • Fast and Responsive: Heat from the solid-state element.
  • Programmable: 7 Day control (with Cürv thermostat).
  • Power Usage: Low power consumption with silent economical instant heat.
  • Maintenance: Free and long warranty.
  • Designed In the UK.
  • Fitting: Fixing kit included.
  • Maximum heating area: CCT6060: 8 m². CCT12060: 13 m².
  • CE tested.

General information

Color

White

Shape

Square

Rectangle

Length

595 mm

1195 mm

Width

595 mm

Height

21 mm

Warranty description

15 year

Uniclass

Pr_70_60_36_71 Radiant panelsPrimary
Pr_70_60_36_74 Room heaters

CAWS

V90/590 Equipment

Specification data - Radiant panels

Radiant panels type

Ceiling mounted.

Output

375 W.

750 W.

Voltage

220–240 V a.c.

Ingress protection

IP30.

Weight

3.5 kg.

Size:

595 x 595 x 21 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

The Curv Ceiling Tile

The Curv Ceiling Tile

Case studies

Pond Park Care Home

Pond Park Care Home
