Curtains | Draperies - Curtains
Verified by manufacturer 1 month ago
Elementos Track - Manual/ Cord
Elementos Track - Manual/ Cord
ISO 9001 Quality Management
Certificate type
ISO 45001 Health and Safety Management
Certificate type
QA Certificate
Certificate type
Sun protection with classic, timeless style.
Application
- For indoor and outdoor applications.
- Indoor - particularly suitable for public buildings such as hotels, schools, projection halls, gyms, and other places that have to comply with building regulations.
- Outdoor - particularly suitable for pergolas, balconies, porches and similar structures.
Description
Curtains bring elegance and harmony to any space. Bandalux’s traditional blinds boast fire-resistant and thermal and acoustic insulation properties. They are elegant and highly decorative solutions that can be combined with other systems, including the roller blind and the sliding panel.
They are also a great choice for large windows and can be adapted to both straight and curved surfaces and can be used to separate settings. For outdoor installation, they are also available with the Polyscreen® fabric for pergolas and porches.
Features and benefits:
- Classic and timeless style.
- Manual, cord or motor operation systems
- Various customizable options.
- Adapt to straight and curved surfaces.
- Indoor or outdoor installation.
- Seven bar models.
- Eight track models.
- Silent motor drive in motor operated Estrada track.
- Curtains length options: floor, break or puddle.
- Several types of tailoring.
- Fabric matching components - yarns, ribbon, cord are coordinated with the fabric colour to give a highly aesthetic visual effect.
- Possibility to combine two fabrics in one curtain.
- Can be combined with other Bandalux systems.
- Child safety and SafeKids option.
General information
Color | White Black Bronze Other |
Finish | Anodized Satin Gloss Chrome Brass |
Material | Fabric Aluminium Acrylonitrile butadiene styrene (ABS) |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | N10/65 Curtains N10/235 Curtains |
Specification data - Window curtains
Dimensions | |
Width | 5000 mm (maximum).Guidance for specification option:
|
Drop | Floor.Guidance for specification option: Ground level, it is recommended to take 1 cm off from the draperies height. Break.Guidance for specification option: It is recommended to add 10 cm to the draperies height. Puddle.Guidance for specification option: It is recommended to add 25–30 cm to the draperies height. Manufacturer guidanceFabric fall options. |
Heading style | Flat pleat.Guidance for specification option: 2.5 pleat served by default. Table pleat.Guidance for specification option: 2.3 pleat served by default. Normal pleat.Guidance for specification option: 2.5 pleat served by default. Two-finger pinch pleat.Guidance for specification option: 2 pleat served by default. Two-finger European pinch pleat.Guidance for specification option: 2 pleat served by default. Three finger European pinch pleat.Guidance for specification option: 2.5 pleat served by default. |
Material | |
Fabric | MOVES collection.Guidance for specification option: Double and single fabric options. Consult manufacturer's literature for details and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer's literature for details and insert requirements. |
Pattern | Manufacturer guidanceConsult manufacturer's literature for details and insert requirements. |
Lining | |
Fabric | Manufacturer guidanceStandard and blackout lining options. Consult manufacturer's literature for details and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer's literature for details and insert requirements. |
Integral accessories | Child Safety.Guidance for specification option: Served by defaut. SafeKids.Trazer pelmet 73, textured white.Trazer pelmet 100, textured white.Trazer pelmet 73, anodized aluminium.Trazer pelmet 100, anodized aluminium.Trazer pelmet, projection.Trazer pelmet, mount plate.Reinforced extensible trazer brackets, 100–120 mm.Reinforced extensible trazer brackets, 130–150 mm.Reinforced extensible trazer brackets, 160–180 mm.LYNX, smart blinds.Not rquired.Manufacturer guidanceConsult manufacturer's literature for details. |
Profile colour | White, RAL 9010. |
Track | Elementos track. |
Track profile | Straight. |
Operating system | Manual/ Cord - 18200008E. |
Stacking | Side stacking, RLA. Opposite side stacking, RLO. Stacking at both sides, RAL. |
Operation | Multi-channel remote control. Guidance for specification option:
Wall-mounted single-channel inverter. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Fabric Aluminium Acrylonitrile butadiene styrene (ABS) |
Recyclability | Yes, Aluminum and Fabrics Guidance for specification option: Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Guidance for specification option: Bandalux’s extruded aluminum profiles and tubes have 95% recycled content. Bandalux’s laminated aluminum has between 45% and 65% recycled content. 90% or our contract fabrics collection has 2% up to 100% recycled content. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 ARCHICAD | - | 1 |
Third party certifications
Literature

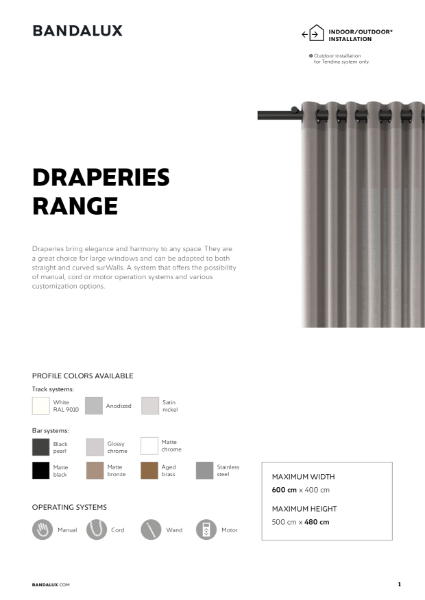

Curtains | Draperies
Draperies Fabrics - Moves Collection, Essential FR
Draperies Fabrics - Moves Collection, Technic FR
Draperies Fabrics - Moves Collection, Blackout FR
Case studies
BSO Outdoor Venetian Blinds in Guido Home

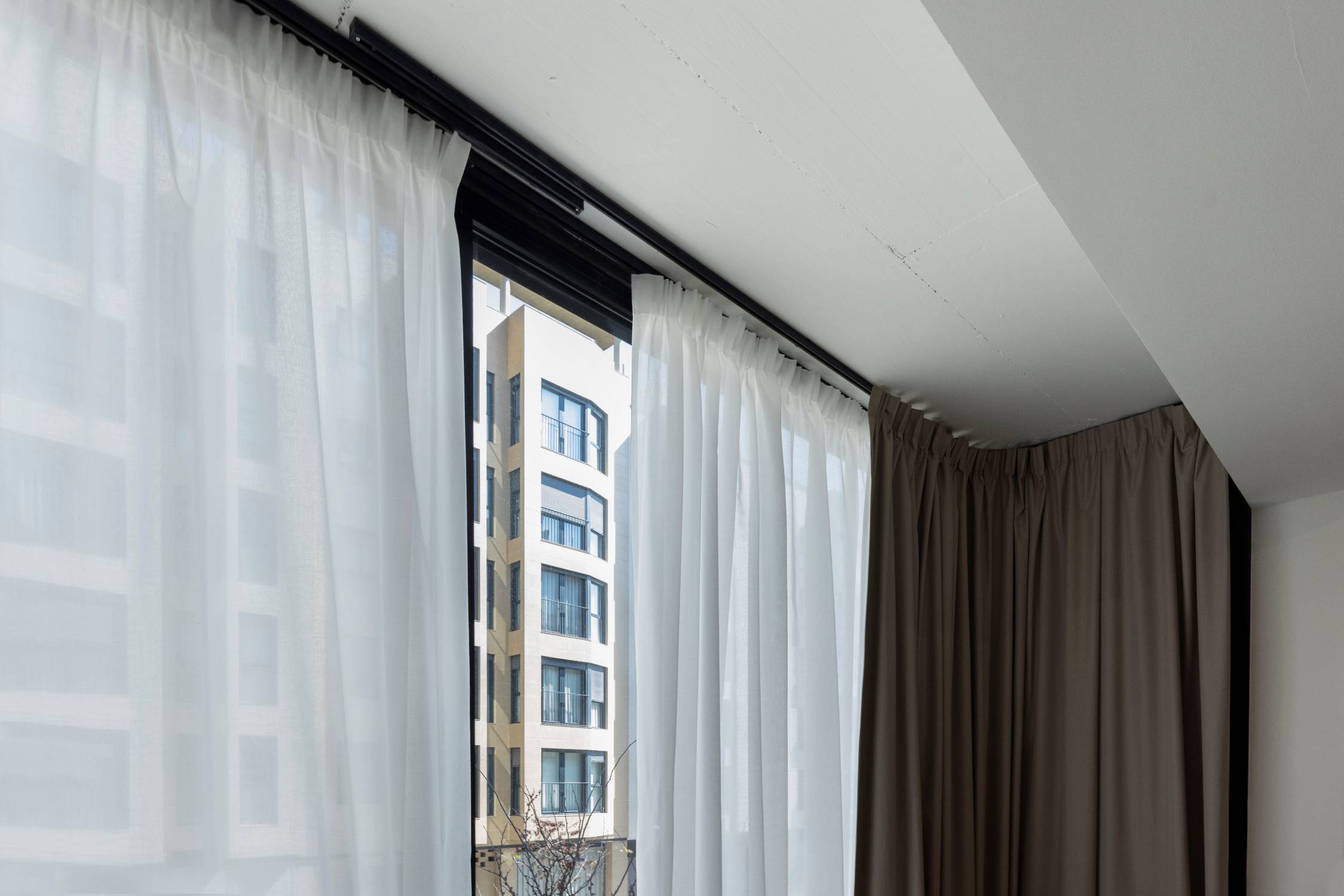

Draperies in Amro Residential
