Curtain Walling System
Verified by manufacturer 1 month ago
Aluminium framing sections, cloaked with high-impact modified PVC-U cover trims.
Application

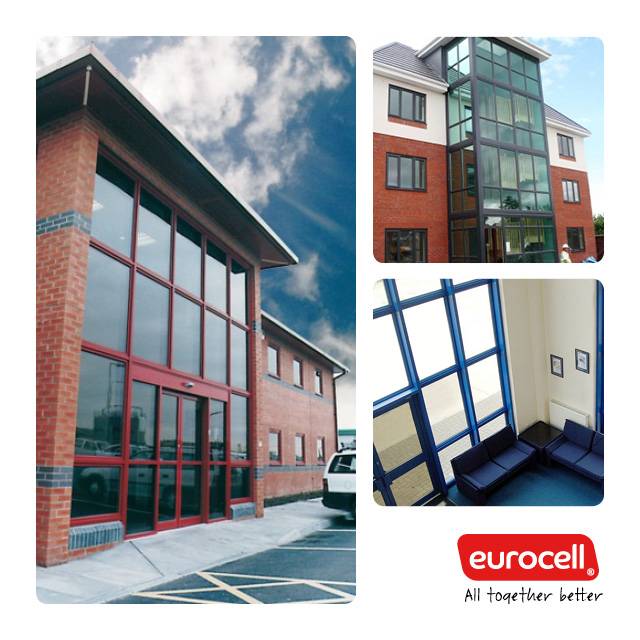

Developed for use in public buildings, schools, hospitals, universities, office blocks and factories to replace old wood or steel frame constructions.
Description
Curtain Walling System comprises high-performance extruded aluminum profiles designed to be made up into a series of grids.
Features and benefits:
- The system is compatible with the Eurocell 70 mm range of windows and doors.
- The system's aluminium sections are cloaked with bevelled or square profile cover trims in high-impact modified PVC-U.
- Profiles are designed to provide slim sight lines.
- Moulded joints allow square cutting of mullions and transoms and provide positive location of anchor brackets. EPDM pneumatic seal expansion joints allow movement in the vertical and horizontal plane.
- Choice of curtain walling section is dependent on height, width and location of buildings, as described in BS 6375-1.
General information
Color | White Guidance for specification option: The system is available in white as standard, with a range of optional colours, subject to minimum order quantities. Black Brown Grey Other |
Finish | Foil |
Material | Aluminium |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
System performance | Stick system, drained and ventilated. |
Framing | |
Frame members | Aluminium framing sections with PVC-U cover trim. |
Frame accessories | External cover caps. |
Cladding units | |
Glazing accessories | Manufacturer guidanceConsult manufacturer for details of options available. |
Colour | White. Guidance for specification option: The system is available in white as standard, with a range of optional colours, subject to minimum order quantities. Consult with Eurocell for availability and to obtain samples. |
Type | Square. Bevelled. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Yes - recommend via Eurocell Closed-Loop Recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
