Curaflex® 8000 - Sleeve on flange plate
Curaflex® 8000 steel sleeve (solid)
Curaflex® 8000 steel sleeve (solid)

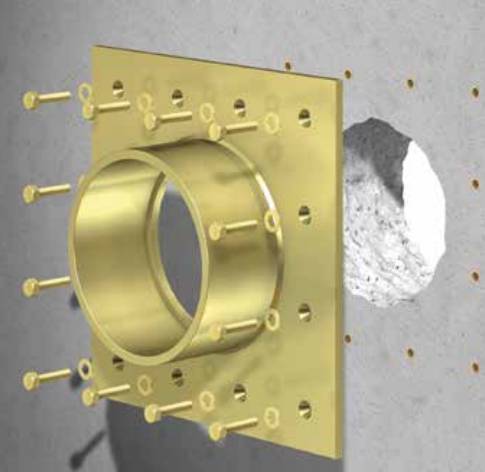

Steel flange plate with sleeve for sealing pipes and cables
Application
- Flange plate with sleeve for sealing pipes and cables
- Use in front of the wall.
- For waterproof concrete structures
- Use with thick water proof coatings with sanded design.
- Suitable for renovations.
Description
Steel flange plate with sleeve for sealing pipes and cables. Requires sealant, primer and adhesive cleaner.
Features and benefits:
- Sealing in front of the wall (condition of the bore/ wall opening not relevant).
- Suitable for duct systems without a suitable core bore or pipe sleeve.
- Optimally designed inner wall for holding the DOYMA sealing systems.

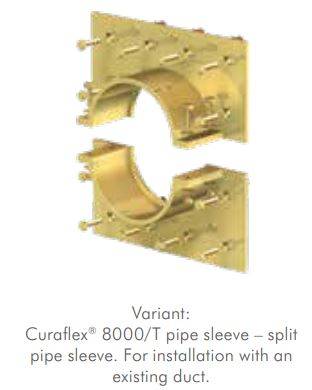

- Retrofit version available for pipes and cables that are already installed
- Gas and water tight.
- Radon proof – according to FHRK information sheet MB101.
- For buildings without tanking membranes
- 25 year guarantee
General information
Color | Gold |
Material | Steel Stainless steel |
Shape | Circle |
WidthInner diameter of pipe sleeve. Bespoke options available; consult manufacturer for details. | 80 mm 100 mm 125 mm 150 mm 200 mm |
WarrantyDescription | 25 year |
Uniclass | |
CAWS | P31/30 Pipe sleeves |
Specification data - Pipe sleeves
Material | Steel GGV triple corrosion protection coating.Standard. Stainless steel 1.4301 (V2A).Stainless steel 1.4571/1.4404 (V4A). |
Form | Solid sleeve. |
Length | 110 mm. |
Diameter (internal)Inner diameter of pipe sleeve. Bespoke options available; consult manufacturer for details. | 80 mm. 260 mm outer diameter/ edge length of the fixed flange. 100 mm. 280 mm outer diameter/ edge length of the fixed flange. 125 mm. 300 mm outer diameter/ edge length of the fixed flange. 150 mm. 330 mm outer diameter/ edge length of the fixed flange. 200 mm. 380 mm outer diameter/ edge length of the fixed flange. |
Literature
25 Year Guarantee
G-MT-1-903_datasheet_Curaflex_8000_en
Curaflex 8000 Installation Instruction
