This product is no longer available

Application

  • Atria.
  • Hotels.
  • Learning areas.
  • Conference centres.
  • Music studios.
  • Music venues.
  • Leisure facilities.
  • Schools.
  • Restaurants.
  • Showrooms.

Description

Acoustic fabric covered cubes offering noise control benefits. These acoustic cubes are designed primarily to reduce reverberant noise by improving acoustic absorption within the area being treated.

Cube Absorbers are exceptionally effective broadband absorbers which offer a solution for areas where wall space is of a minimum. These are extremely lightweight absorbers designed to offer both excellent absorption whilst at the same time enhancing the interior design.

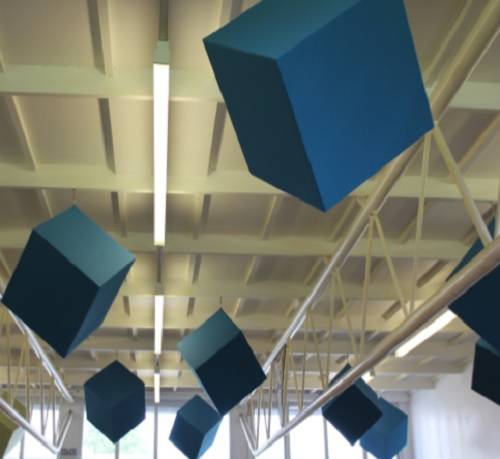

They can be hung from the soffit at different heights and alternating fabric colours without interfering with existing services and light fittings. Each Cube Absorber can be supplied with a small corkscrew hanger specifically designed to be screwed into the cubes corner to allow suspension from the ceiling. Alternatively, the cubes can be laid out in a brick like fashion on the floor creating an acoustic wall.

Applications:

  • Atria.
  • Hotels.
  • Learning areas.
  • Conference centres.
  • Music studios.
  • Music venues.
  • Leisure facilities.
  • Schools.
  • Restaurants.
  • Showrooms.

General information
Specification data - Sound attenuator infill units
Product Reference

Cube Absorber

Fabric

Insert requirement, contact manufacturer for information.

Colour

Insert requirement, contact manufacturer for information.

Corkscrew hangers

Not required

Required

Standard product features

Size (h x w x d):

550 x 550 x 550 mm. Other sizes are available to suit customer requirements and design, contact manufacturer for information.

Weight (nominal):

2.5 kg.

Thermal conductivity:

0.035 W/m·K (at 10°C).

Operating temperature:

Suitable for use at normal building temperatures.

Fire performance:

Plain Basotect foam complies with the Class 0 requirements of the Building Regulations when tested to BS 476-6 and BS 476-7. The selection of fabrics meets the requirements of BS 476-7 Class 1 surface spread of flame. Screen fabrics can be chemically treated to provide a Class 0 fire rating.

Sound absorber class (to BS EN ISO 11654):

A.

Sound absorption coefficient (one cube spaced every 2m² area):

  • Absorption area: 1.81 m².
  • 125 Hz: 0.99: 250 Hz: 1.98; 500 Hz: 2.61; 1000 Hz: 2.62; 2000 Hz: 2.5; 4000 Hz: 2.45; aw: 1.0; NRC: 2.43.

Product Options

Fabric/ Colour:

A selection of acoustically transparent fabric is available with a varied choice of colours. Cube Absorbers can also be spray painted to match any RAL colour.
