Cuba Awning - Folding Arm Awning

Verified by manufacturer 1 day ago

Caribbean Blinds UK Ltd

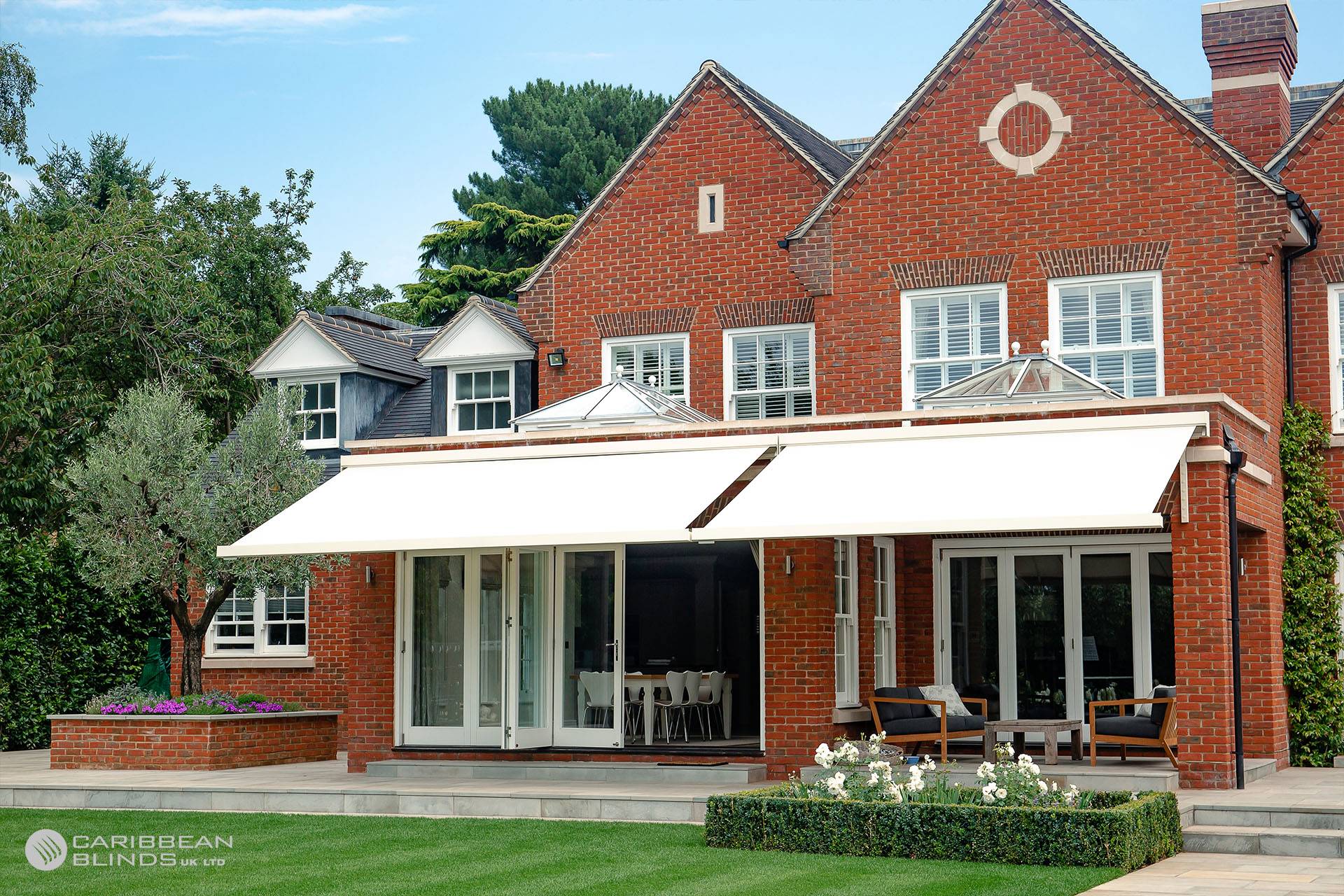

The Cuba Awning is the strongest full cassette retractable folding arm awning, available upto 14m wide x 3.75m deep, with the ability to integrate within the façade thanks to its rectangular design.

Jump to:
BOS
0344 800 1947 Website

Application

Suitable for residential and commercial applications including houses, extensions, restaurants, hotels, bars, schools, nurseries.

Description

The Cuba awning is the strongest retractable canopy, offering flexible shade and shelter to the largest of terraces. The folding arms with drop forged joints, are tensioned using quadruple hi-tensile, tear resistant, sheathed stainless steel cables and double coiled springs, guaranteeing optimum fabric tension and able to withstand high windloads. A flush fitting, rectangular full cassette casing protects the fabric and mechanism when retracted away and conceals the fixing brackets.


Features and benefits:

  • Full cassette casing with multiple fixing points.
  • Strongest quad cable tensioned folding arms.
  • Adjustable pitch from 5-38° (10-65 cm fall p/m).
  • 100’s of hardware (RAL) colours & solar control fabrics.
  • Motorized remote / app control.
  • Optional automatic weather sensors (light & wind).
  • Face fix & bespoke mounting brackets.
  • Up to 7 m wide x 3.75 m depth (can be linked up to 14 m wide).


General information

Color

-

Manufacturer guidance

Anthracite Grey RAL 7016ST

White RAL 9016

Any other RAL colour

Finish

Powder-coated

Material

Aluminium

Fabric

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Up to 7m length

Width

Bespoke

Guidance for specification option:

Up to 3.75m width (projection)

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_05 AwningsPrimary

CAWS

L10/59 Solar shading system

L10/680 Solar shading system

B91/330 Canopy

Specification data - Awnings

Standard

To BS EN 13561.

Size (width x depth)

Guidance for specification option:

Insert requirements, available up to 7 m wide x 3.75 m depth (can be linked up to 14m wide).

Frame

-

Format

Retractable folding arms.

Guidance for specification option:

Arms 73 x 30 mm (h x d).

Material

Powder coated, extruded aluminium.

Canopy

-

Material

Solution dyed acrylic fabric.

Guidance for specification option:

World of Sattler collection with TEXgard easy clean coating.

Colour and pattern

Guidance for specification option:

Insert colour code requirement

Valance detail

None.

Straight.

Guidance for specification option:

Up to 300 mm high.

Loose wave.

Guidance for specification option:

Up to 300 mm high.

Headrail

-

Material

Powder coated, extruded aluminium.

Guidance for specification option:

Cassette 225 x 140 mm (h x d).

Colour

Anthracite Grey RAL 7016ST.

White RAL 9016.

Custom RAL.

Guidance for specification option:

Insert colour code requirement.

Operation

-

Mode

Integrated radio controlled motor and remote control.

Guidance for specification option:

Somfy IO motor with 5 m black cable.

Power supply

240 v AC.

Guidance for specification option:

Power draw circa 1.1 amps.

Operating effort

To BS EN 13561, class 3.

Mechanism endurance

To BS EN 13561, class 3.

Wind resistance

To BS EN 13561, class 3.

Guidance for specification option:

Beaufort 6 – 31 mph strong breeze.

Total solar energy transmission (maximum)

To BS EN 14501.

Accessories

Not required.

Wind vibration sensor (Eolis 3D wirefree io).

Sun & Wind sensor (Soliris wired io).

App control (Tahoma switch).

LED lighting track to underside cassette (Bermuda, 3,500 k warm white).

Infra-red radiant heater (Bahama, 2 kw ultra low-glare)

Caps

Cast aluminium (colour coded).

Fixing

Face fix brackets.

Top fix brackets.

Spreader plates.

Cantilever brackets.

Stand off brackets.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

United Kingdom

Recyclability

Aluminium is recyclable
