CS Pediluxe® Entrance Flooring System
Description

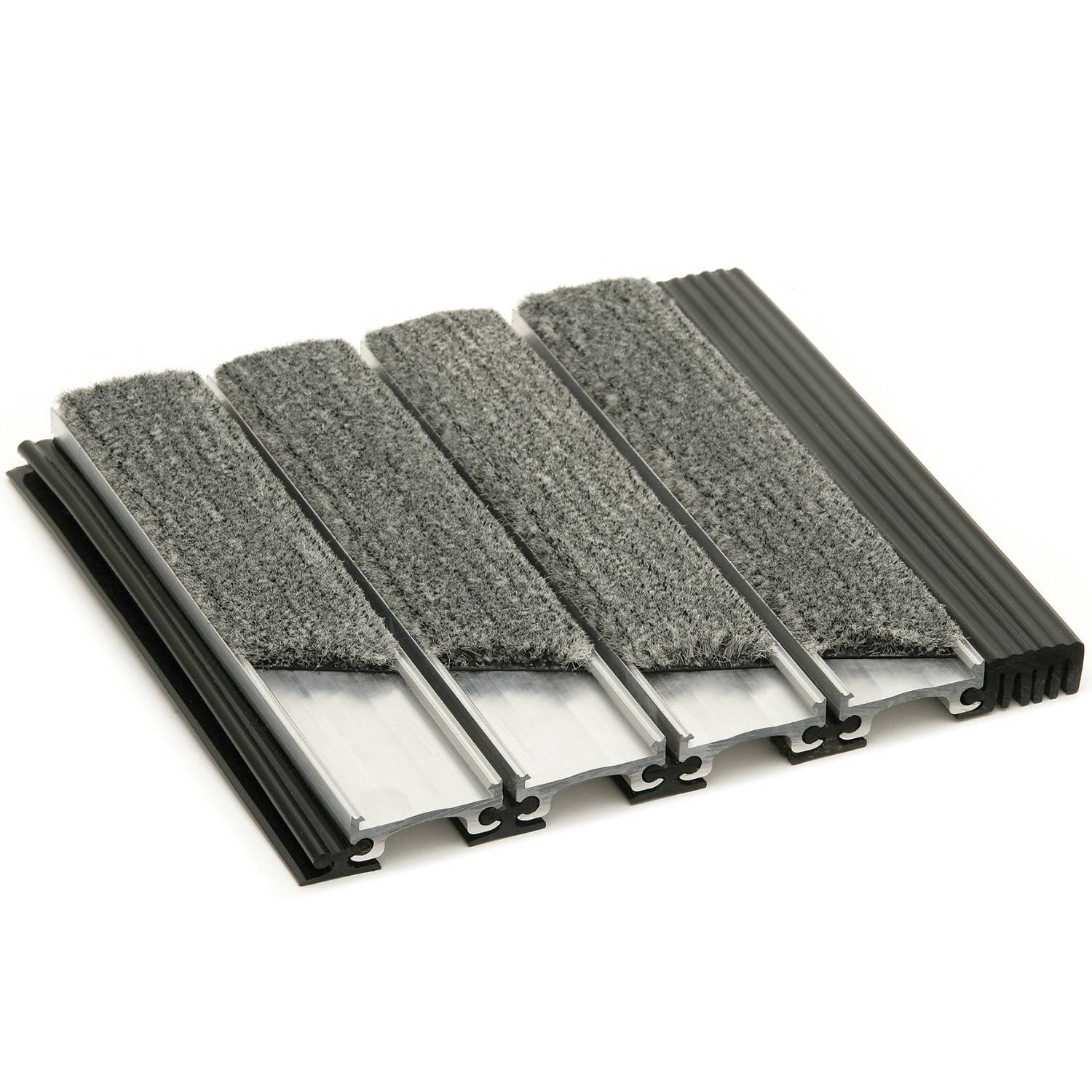

A 17 mm deep aluminium rail entrance matting systems perfect for entrances with high volumes of traffic areas such as shopping centres, passenger termini and hospitals.

Features:

  • Recommended for exterior entrances (Zone 1) and interior primary entrances (Zone 2).
  • Recess or surface mounted options.
  • Exceptional rolling load capability in excess of 500kgs/wheel.
  • Available in open and closed spline options.
  • Wide range of tread and colour options.

General information

Finish

Aluminium profiles: mill finish (standard), clear anodised or black anodised; Aluminium frames: mill finish (standard), clear anodised or black anodised

Features

Suitable for heavy duty use, will withstand rolling load up to 500kgs/wheel rolling load (equivalent to a pallet truck with 2 tonne load)

Material

Polypropylene fibre, aluminium

Shape

To suit any matwell area

Size

Manufactured to project specific dimensions

Uniclass 2015

Pr_35_57_11_26 Entrance matsPrimary

CAWS

N10/290 Matwell frames

N10/300 Entrance matting

Specification data - Entrance mats

Product Reference

CS Pediluxe®

17mm deep.

Tread

-

Type

Abrasive insert

Serrated aluminium

Carpet insert, exterior grade

Carpet insert, interior grade

Vinyl insert

Brush insert

Colour

Not required

Serrated aluminium option.

Atlantic Blue

Abrasive insert.

Black

Abrasive insert.

Ocean Grey

Abrasive insert.

Russet Brown

Abrasive insert.

CS1130X, Sandstone

Exterior grade carpet.

CS1140X, Lava

Exterior grade carpet.

CS1141X, Platinum

Exterior grade carpet.

0202, Wrought Iron

Interior grade carpet.

0203, Castle Grey

Interior grade carpet.

0204, Espresso

Interior grade carpet.

0205, Sandstone

Interior grade carpet.

0206, Midnight

Interior grade carpet.

0207, Slate

Interior grade carpet.

0208, Hearty Moss

Interior grade carpet.

7312, Indigo

Interior grade carpet.

9184, Merlot

Interior grade carpet.

9310, Eggplant

Interior grade carpet.

Black

Abrasive insert.

Burgundy

Vinyl insert.

Chocolate

Vinyl insert.

Gunmetal Grey

Vinyl insert.

Navy Blue

Vinyl insert.

Silver Grey

Vinyl insert.

Black

Abrasive insert.

Rail finish

Mill finish

standard.

Clear anodized

Black anodized

Spline options

Closed

Open

Spline and vinyl endfiller colours

Black

Burgundy

Chocolate

Gunmetal Grey

Navy Blue

Silver Grey

Frame

-

FrameType

17 mm ramped frame for surface mounting

20 mm frame for recess mounting

17 mm tapered frame for recess mounting

21 mm T-frame for dividing large sections of mat

Frame finish

Black anodized

Clear anodized

Available for 17 mm ramped frame for surface mounting only.

Mill finish

Brass

Available for 20 mm frame for recess mounting only.

Edge trim

-

Type

Not required

Brass edging trim and uPVC channel

Flexible PVC edging trim and aluminium channel

Recess mounted frame capping section, double

Recess mounted frame capping section, single

uPVC divider and aluminium channel

Finish

Not required

Black

uPVC/ PVC sections.

Black anodized

Aluminium sections.

Bronze anodized

Aluminium sections.

Gold anodized

Aluminium sections.

Grey

uPVC sections.

Mill finish

Aluminium or brass sections.

Spacers

Not required

Required

Used with edging trims.

Other requirements

None

Pedijet Logos

Standard product features

Product reference:

- Pediluxe:

  • 17 mm deep aluminium hinged rail system, which combines rugged construction with a luxury ‘feel’ underfoot. Suitable for high volume areas such as shopping centres, hospitals and passenger termini.
  • Recommended for zone 1 (exterior entrance, immediately outside the building) and zone 2 (primary entrance, immediately inside the building)
  • Tread options: Serrated aluminium rail, abrasive insert, vinyl insert, brush insert or carpet insert (interior or exterior grade)
  • Rail finish options: Mill finished aluminium as standard, also available in clear or black anodized finish.
  • Mounting options: Recess or surface mounted.
  • Spline options: Open or closed.
  • Rolling load: 500 kg per wheel.
  • Absorption area: 80%.
  • Drying performance: Very high.
  • Scraping performance: Very high.

Product Options

Frame options:

- Pediluxe:

  • 17 mm ramped frame for surface mounting: Available in mill finish, black or clear anodized aluminium.
  • 20 mm frame for recess mounting: Available in mill finish or black anodized aluminium, or brass.
  • 17 mm tapered frame for recess mounting: Available in mill finish aluminium.
  • 21 mm T-frame for dividing large sections of mat: Available in mill finish or black anodized aluminium.

Edge trims:

- Brass edging trim and uPVC channel:

Available in mill finish brass and grey uPVC. A Pediluxe spacer should be used with this trim.

- Flexible PVC edging trim and aluminium channel:

Available in mill finish aluminium and black PVC (other PVC colours available subject to minimum quantities). A Pediluxe spacer should be used with this trim.

- Recess mounted frame capping section, single and double:

Available in mill finish, black, bronze or gold anodized aluminium.

- uPVC divider and aluminium channel:

Available in mill finish aluminium and black or grey PVC (other PVC colours available subject to minimum quantities). A Pediluxe spacer should be used with this trim.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
