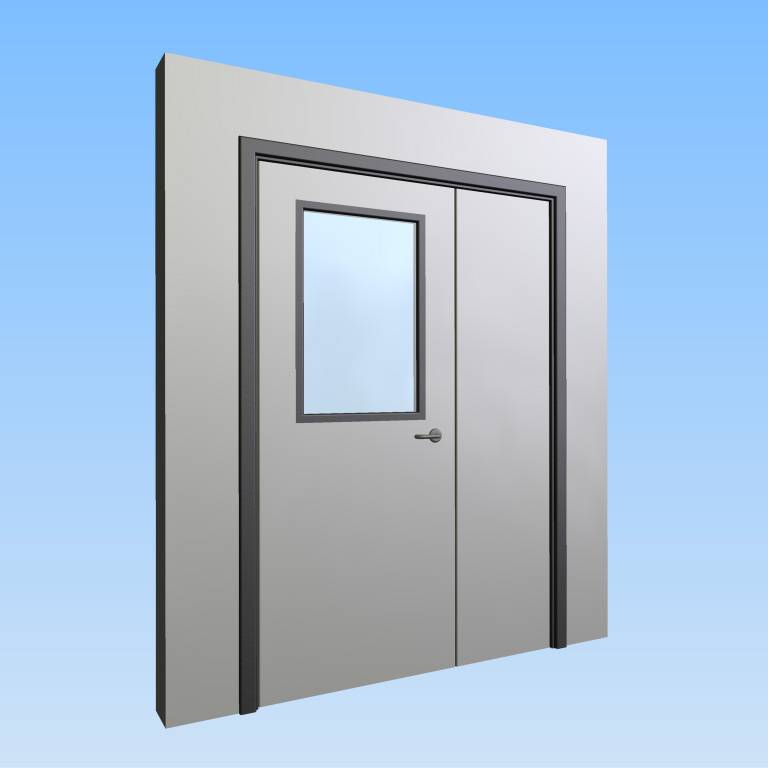

CS Acrovyn® Impact Resistant Doorset - Unequal pair with type VP1 Vision Panel

CS Acrovyn® Impact Resistant Doorset - Unequal pair with type VP1 Vision Panel

 Construction Specialties (UK) Ltd

A severe duty, interior doorset system, clad in an impact resistant Acrovyn material for increased performance and extended life cycle. Acrovyn® Doors are available in fire-rated and NFR options.

Jump to:
+44 (0)1296 652800 www.c-sgroup.co.uk

Description

A range of severe duty doorsets clad in impact resistant Acrovyn® material, designed to meet high performance requirements of many applications including healthcare, education, retail, commercial and industrial.

Fire tested to BS 476-22 and providing 30 or 60 minutes fire resistance, Acrovyn® Doors come with third party BM Trada Q-Mark certification.

Available in a range of cladding options including full encapsulation with or without door edge protectors, Acrovyn® Doorsets are highly durable and easy to clean and maintain, helping to reduce maintenance budgets.

General information

Finish

Acrovyn® Pebblette texture

Uniclass 2015

Pr_30_59_24_16 Composite doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Composite doorsets

Product Reference

CS Acrovyn® Doorset

Type

DT1

Acrovyn clad graduated density chipboard core; Acrovyn faces and post-formed edges.

DT2

Acrovyn clad graduated density chipboard core; fully encapsulated with post-formed edges.

DT3

Acrovyn clad graduated density chipboard core; Acrovyn faces and raised door edge protectors.

DT4

Acrovyn clad graduated density chipboard core; Acrovyn faces with flush door edge protectors.

DT5

Acrovyn clad graduated density chipboard core; fully encapsulated with raised door edge protectors.

DT6

Acrovyn clad graduated density chipboard core; fully encapsulated with flush door edge protectors.

DT7

Acrovyn clad laminated wood strip core; Acrovyn faces and post-formed edges.

DT8

Acrovyn clad laminated wood strip core; fully encapsulated with post-formed edges.

DT9

Acrovyn clad laminated wood strip core; Acrovyn faces and raised door edge protectors.

DT10

Acrovyn clad laminated wood strip core; Acrovyn faces with flush door edge protectors.

DT11

Acrovyn clad laminated wood strip core; fully encapsulated with raised door edge protectors.

DT12

Acrovyn clad laminated wood strip core; fully encapsulated with flush door edge protectors.

As drawing

As schedule

Configuration

SASD

Single Acting Single Doorset.

SADD

Single Acting Double Doorset – equal and unequal pairs available.

SASD+OP

Single Acting Single Doorset with Overpanel.

SADD+OP

Single Acting Double Doorset with Overpanel – equal and unequal pairs available.

DASD

Double Acting Single Doorset.

DADD

Double Acting Double Doorset – equal and unequal pairs available.

DASD+OP

Double Acting Single Dooset with Overpanel.

DADD+OP

Double Acting Double Doorset with Overpanel – equal and unequal pairs available.

As drawing

As schedule

FireRating

Non fire rated

FD30

FD30S

FD60

FD60S

As drawing

As schedule

Third party accreditation

Required

Not required

Door colour

-

Door faces

Choose from Acrovyn colour options; insert requirements.

Door edge

As drawing

As schedule

Vision panels

VP1

Single central panel.

VP2

Two central panels.

VP3

Single rectangular panel towards the leading edge of the door.

VP4

Two rectangular panels towards the leading edge of the door.

VP5

Multiple square panels towards the leading edge of the door.

VP6

Single circular panel.

VP7

Three circular panels.

VP8

Privacy panel.

VP9

Specialist panel (X-ray, laser etc).

Not required

As drawing

As schedule

Beading

-

Type

BT01

Lacquered hardwood, available with all vision panel configurations.

BT02

Square edge bead, wrapped in Acrovyn, available with square and rectangular shaped vision panels.

BT03

Rounded edge bead, wrapped in Acrovyn, available with square and rectangular shaped vision panels.

BT04

Cleanroom finish fire rated, typically used with VP9 vision panel option.

BT05

Cleanroom finish non fire rated, typically used with VP9 vision panel option.

BT06

Privacy panel bead, wrapped in Acrovyn, typically used with VP8 vision panel option.

BT07

'Hockey-stick' style, wrapped in Acrovyn, available with square and rectangular shaped vision panels.

BT08

Acrovyn wrapped flush bead suitable for circular panel options.

Not required

As drawing

As schedule

Colour/finish

Choose from Acrovyn colour options (solid colours, or Faux Wood/Metal finishes); or insert other requirements.

Door frame

-

Type

A

Acrovyn clad solid frame, separate architraves and stop.

B

Acrovyn clad split frame, square integral architraves and separate stop.

C

Acrovyn clad split frame, shaped integral architraves and separate stop.

D

Acrovyn clad split frame, square separate architraves and stop.

E

Acrovyn clad solid frame, integral and separate architraves and separate stop - for applications with overpanels and/or side screens.

F

Acrovyn clad adjustable solid frame, integral and separate architrave and stop - for applications with overpanels and/or side screens.

As drawing

As schedule

Colour/ Finish

Choose from Acrovyn colour options (solid colours, or faux wood/metal finishes) and insert requirements.

Uniclass 2015 Title

Composite doorsets

Standard product features

Door finish:

Acrovyn Pebblette texture.

Product Options

Colour/ Finish:

- Door edge:

A contrasting meeting edge and/or hinge edge colour can be specified for door types DT3, DT4, DT5, DT6, DT8, DT9, DT10, DT11, DT12 to meet Building Regulations (E&W) Approved Document M requirements. Choose from Acrovyn colour options if required.

- Door Frame:

A contrasting colour to the door leaves can be specified to meet Building Regulations (E&W) Approved Document M requirements. Choose from Acrovyn colour options if required.

- Colour:

  • Acrovyn Pebblette texture: 11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 108 Black/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 223 Danube/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 949 White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.
  • Acrovyn Hydroclad Smooth: 9003 Snow White/ 801 Grey Cloud/ 24 Dove/ 11 Alpine Blue/ 101 French Cream/ 879 Dusty Jade.

Wood and metal effect finishes:

  • Faux wood finishes: 02 Maple/ 03 Beech/ 36 Bleached Oak/ 38 Smoked Oak/ 39 Wenge/ 40 Burnt Oak.
  • Faux metal finishes: 06 Brushed Aluminium/ 80 Brushed Nickel/ 07 Carbon.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

3

 1.3
IFC

IFC2X3

3

 1.3
Revit

Revit 2016

4

 2.0
Download now from NBS National BIM Library
