CS Acrovyn® PVC-Free SSM-20N Corner Guard
Verified by manufacturer 10 months ago

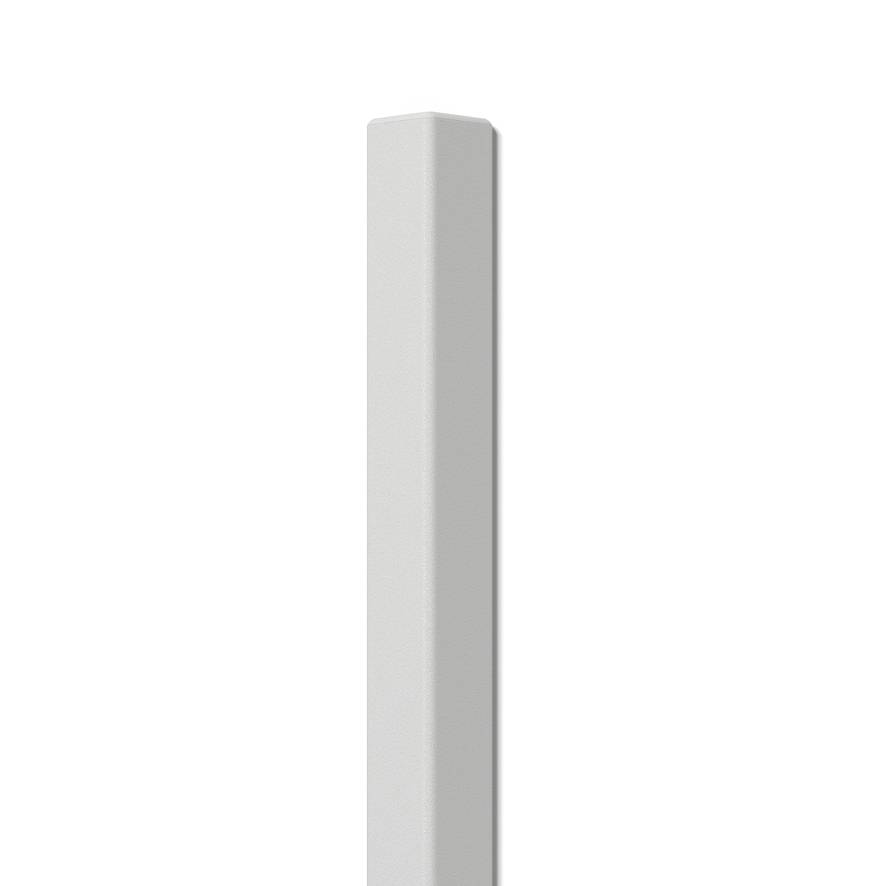

51 mm-wide leg corner guards featuring a robust aluminium retainer and a free-floating Acrovyn® PVC-Free cover, used for preventing damage to 90° corners in busy circulation areas.
Application

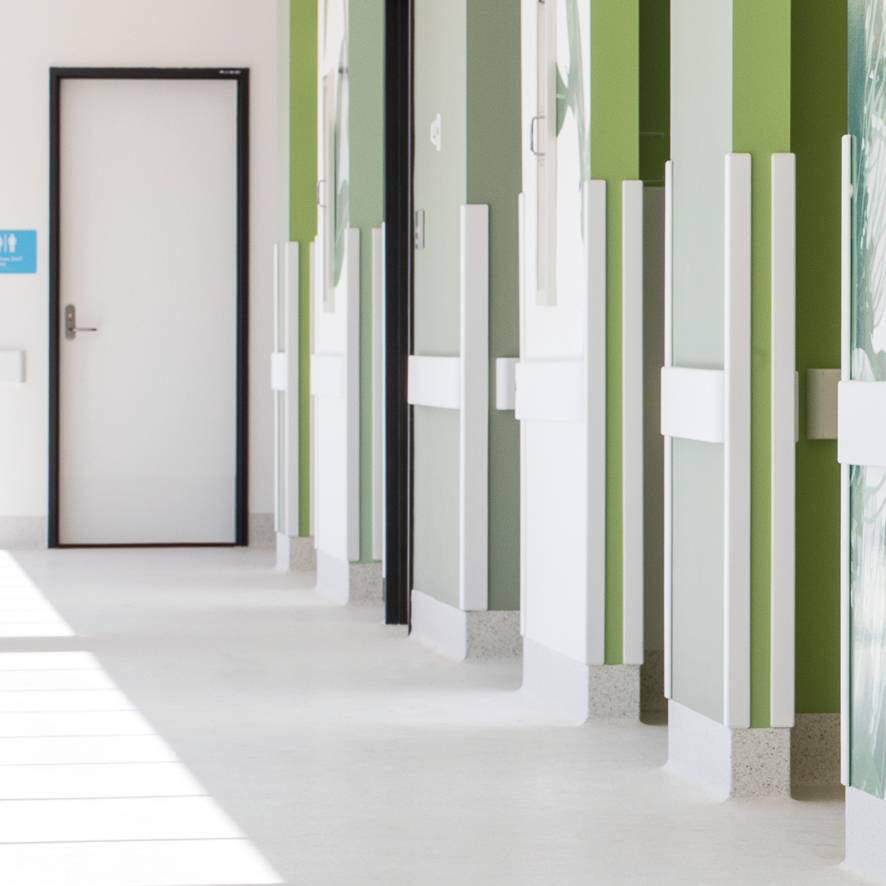

Heavy-duty corner protection for prevention of damage to 90° corners in busy circulation areas.
Description
51 mm-wide leg corner guards featuring a robust aluminium retainer and a free-floating Acrovyn PVC-Free cover, used for preventing damage to 90° corners in busy circulation areas.
Features and benefits:
- Impact-resistant, textured snap-on cover.
- Continuous aluminium retainer for heavy-duty protection from impact.
- Free-floating cover flexes on impact, absorbing its force.
- Available in 15 solid colours.
- Available in full or dado height (maximum 3 m).
- Supplied with top and bottom end caps.
General information
Color | Beige Black Blue Cream Grey |
Material | Acrovyn® Guidance for specification option: Acrovyn® PVC-Free. Aluminium |
Shape | Rectangle |
Width | 51 mm Manufacturer guidanceLeg width. |
Height | 3000 mm Guidance for specification option: Stock height. Bespoke Guidance for specification option: Can be cut to required height. |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary |
Product range |
Specification data - Corner guards
Material | Acrovyn® PVC-Free/ aluminium. |
Finish | |
Colour | 949 White LRV: 86. 933 Mission White LRV: 74. 100 Eggshell LRV: 73. 187 Tan Bark LRV: 40. 260 Misty Grey LRV: 80. 136 Pearl Grey LRV: 39. 162 Charcoal LRV: 22. 108 Black LRV: 8. 129 Yale Blue LRV: 8. 4030 Baltic Blue LRV: 20. 101 French Cream LRV: 70. 16 Golden Yellow LRV: 66. 845 Spectrum Red LRV: 15. 510 Powder Pink LRV: 79. 32 Sugar Plum LRV: 13. |
Texture | Shadowgrain. |
Size | 51 x 51 mm, length. Guidance for specification option: Insert length required, maximum 3000 mm. |
Fixing | Screws, 400 mm maximum staggered centres. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
CS Acrovyn Wall & Door Protection 2024

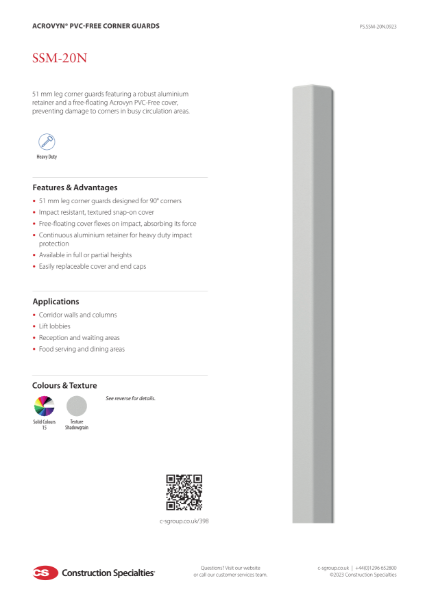

Product Sheet - CS Acrovyn PVC-Free SSM-20N Corner Guard
