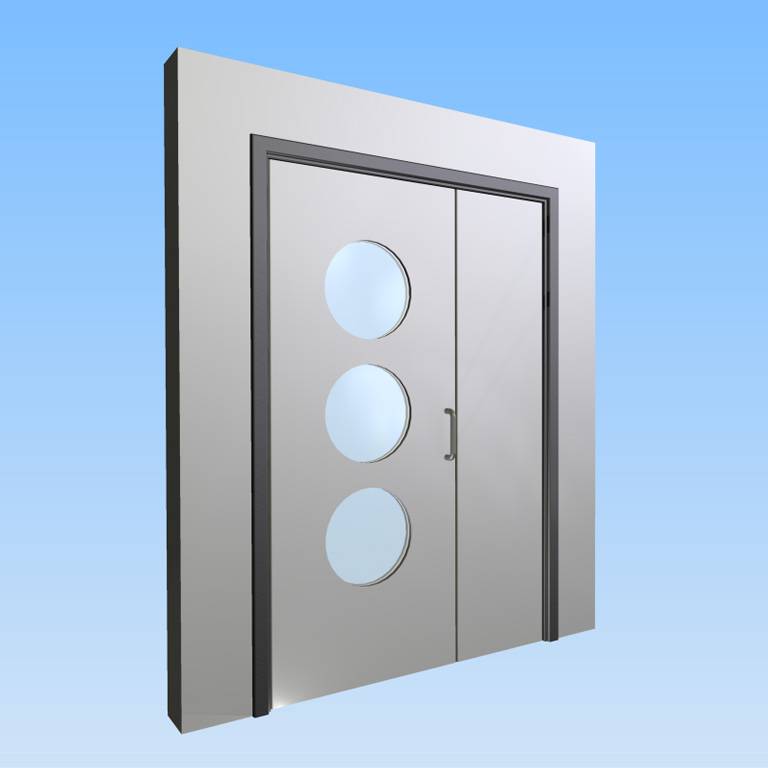

CS Acrovyn® Impact Resistant Doorset - Unequal pair with type VP7 Vision Panel

Compare

Favourite

CS Acrovyn® Impact Resistant Doorset - Unequal pair with type VP7 Vision Panel

Name: CS Acrovyn® Impact Resistant Doorset - Unequal pair with type VP7 Vision Panel
Brand: hPGRo8w5aaTsUgpeHTwsps
SKU: vWJo7rsCLL23fibwXutZ5r

Construction Specialties (UK) Ltd

A severe duty, interior doorset system, clad in an impact resistant Acrovyn material for increased performance and extended life cycle. Acrovyn® Doors are available in fire-rated and NFR options.

Jump to:

+44 (0)1296 652800 www.c-sgroup.co.uk

Description

A range of severe duty doorsets clad in impact resistant Acrovyn® material, designed to meet high performance requirements of many applications including healthcare, education, retail, commercial and industrial.

Fire tested to BS 476-22 and providing 30 or 60 minutes fire resistance, Acrovyn® Doors come with third party BM Trada Q-Mark certification.

Available in a range of cladding options including full encapsulation with or without door edge protectors, Acrovyn® Doorsets are highly durable and easy to clean and maintain, helping to reduce maintenance budgets.

General information

Features	Highly durable, easy to clean and maintain
Finish	Acrovyn® Pebblette texture
Uniclass 2015	Pr_30_59_24_16 Composite doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Specification data - Composite doorsets

Product Reference	CS Acrovyn® Doorset
Type	DT1 Acrovyn clad graduated density chipboard core; Acrovyn faces and post-formed edges. DT2 Acrovyn clad graduated density chipboard core; fully encapsulated with post-formed edges. DT3 Acrovyn clad graduated density chipboard core; Acrovyn faces and raised door edge protectors. DT4 Acrovyn clad graduated density chipboard core; Acrovyn faces with flush door edge protectors. DT5 Acrovyn clad graduated density chipboard core; fully encapsulated with raised door edge protectors. DT6 Acrovyn clad graduated density chipboard core; fully encapsulated with flush door edge protectors. DT7 Acrovyn clad laminated wood strip core; Acrovyn faces and post-formed edges. DT8 Acrovyn clad laminated wood strip core; fully encapsulated with post-formed edges. DT9 Acrovyn clad laminated wood strip core; Acrovyn faces and raised door edge protectors. DT10 Acrovyn clad laminated wood strip core; Acrovyn faces with flush door edge protectors. DT11 Acrovyn clad laminated wood strip core; fully encapsulated with raised door edge protectors. DT12 Acrovyn clad laminated wood strip core; fully encapsulated with flush door edge protectors. As drawing As schedule
Configuration	SASD Single Acting Single Doorset. SADD Single Acting Double Doorset – equal and unequal pairs available. SASD+OP Single Acting Single Doorset with Overpanel. SADD+OP Single Acting Double Doorset with Overpanel – equal and unequal pairs available. DASD Double Acting Single Doorset. DADD Double Acting Double Doorset – equal and unequal pairs available. DASD+OP Double Acting Single Dooset with Overpanel. DADD+OP Double Acting Double Doorset with Overpanel – equal and unequal pairs available. As drawing As schedule
FireRating	Non fire rated FD30 FD30S FD60 FD60S As drawing As schedule
Third party accreditation	Required Not required
Door colour	-
Door faces	Choose from Acrovyn colour options; insert requirements.
Door edge	As drawing As schedule
Vision panels	VP1 Single central panel. VP2 Two central panels. VP3 Single rectangular panel towards the leading edge of the door. VP4 Two rectangular panels towards the leading edge of the door. VP5 Multiple square panels towards the leading edge of the door. VP6 Single circular panel. VP7 Three circular panels. VP8 Privacy panel. VP9 Specialist panel (X-ray, laser etc). Not required As drawing As schedule
Beading	-
Type	BT01 Lacquered hardwood, available with all vision panel configurations. BT02 Square edge bead, wrapped in Acrovyn, available with square and rectangular shaped vision panels. BT03 Rounded edge bead, wrapped in Acrovyn, available with square and rectangular shaped vision panels. BT04 Cleanroom finish fire rated, typically used with VP9 vision panel option. BT05 Cleanroom finish non fire rated, typically used with VP9 vision panel option. BT06 Privacy panel bead, wrapped in Acrovyn, typically used with VP8 vision panel option. BT07 'Hockey-stick' style, wrapped in Acrovyn, available with square and rectangular shaped vision panels. BT08 Acrovyn wrapped flush bead suitable for circular panel options. Not required As drawing As schedule
Colour/finish	Choose from Acrovyn colour options (solid colours, or Faux Wood/Metal finishes); or insert other requirements.
Door frame	-
Type	A Acrovyn clad solid frame, separate architraves and stop. B Acrovyn clad split frame, square integral architraves and separate stop. C Acrovyn clad split frame, shaped integral architraves and separate stop. D Acrovyn clad split frame, square separate architraves and stop. E Acrovyn clad solid frame, integral and separate architraves and separate stop - for applications with overpanels and/or side screens. F Acrovyn clad adjustable solid frame, integral and separate architrave and stop - for applications with overpanels and/or side screens. As drawing As schedule
Colour/ Finish	Choose from Acrovyn colour options (solid colours, or faux wood/metal finishes) and insert requirements.

Standard product features

Door finish:

Acrovyn Pebblette texture.

Product Options

Colour/ Finish:

- Door edge:

A contrasting meeting edge and/or hinge edge colour can be specified for door types DT3, DT4, DT5, DT6, DT8, DT9, DT10, DT11, DT12 to meet Building Regulations (E&W) Approved Document M requirements. Choose from Acrovyn colour options if required.

- Door Frame:

A contrasting colour to the door leaves can be specified to meet Building Regulations (E&W) Approved Document M requirements. Choose from Acrovyn colour options if required.

- Colour:

Acrovyn Pebblette texture: 11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 108 Black/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 223 Danube/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 949 White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.

Acrovyn Hydroclad Smooth: 9003 Snow White/ 801 Grey Cloud/ 24 Dove/ 11 Alpine Blue/ 101 French Cream/ 879 Dusty Jade.

Wood and metal effect finishes:

Faux wood finishes: 02 Maple/ 03 Beech/ 36 Bleached Oak/ 38 Smoked Oak/ 39 Wenge/ 40 Burnt Oak.

Faux metal finishes: 06 Brushed Aluminium/ 80 Brushed Nickel/ 07 Carbon.

Digital objects

Platform	Compatible	Version	Certified to
IFC	IFC2X3	3	1.3
IFC	IFC2X3	3	1.3
Revit	Revit 2016	4	2.0

Download now from NBS National BIM Library

Literature

C/S Acrovyn Doors
